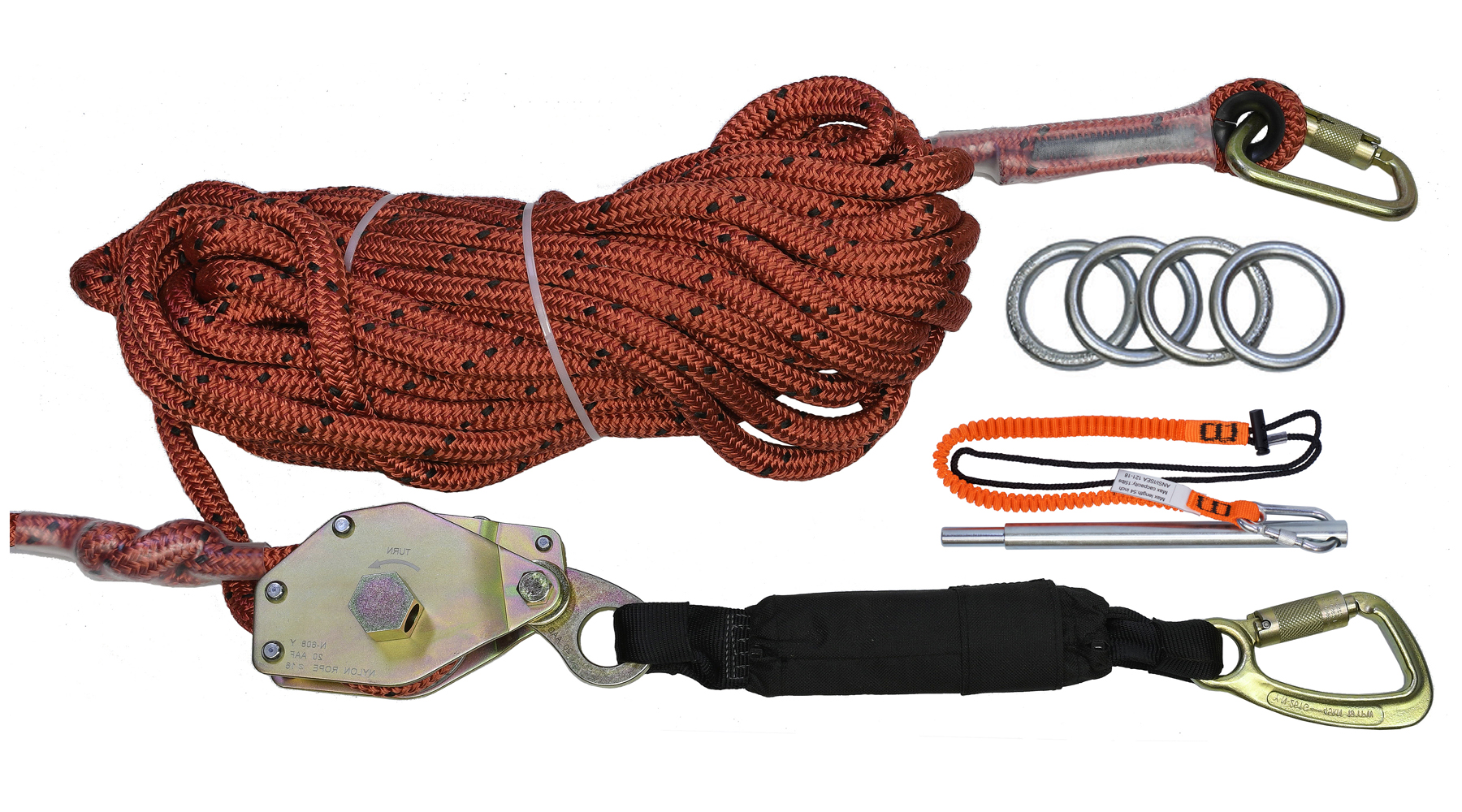

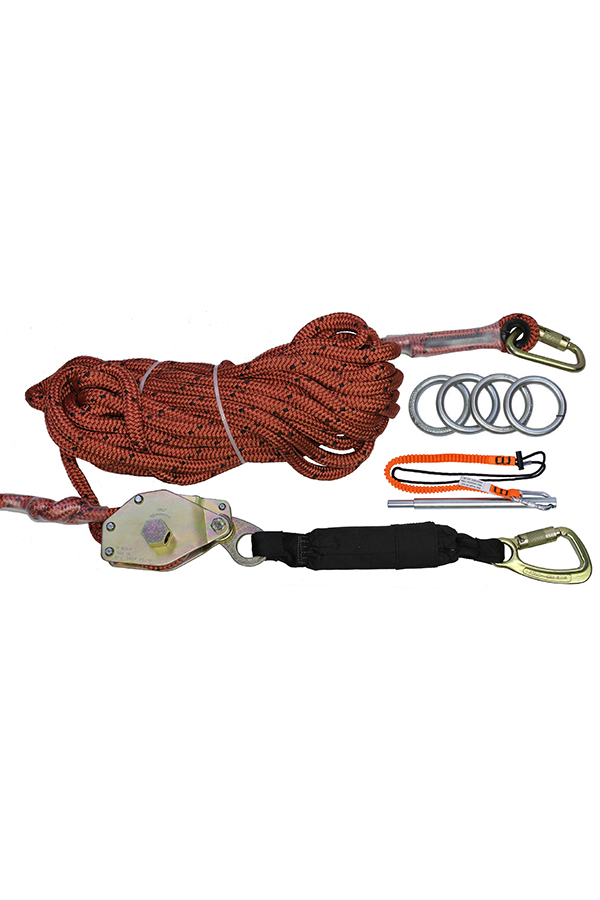

Horizontal Lifeline Rope Kit
The temporary HLL rope system is compatible with SAS mfg. anchors specified for HLL use.
Specifications:
- Min. tensile strength 5,000lb
- 15,000lb tensile strength 3/4” double braid kernmantle rope
- Ratchet-type rope tensioner w/factory attached energy absorber
- Tensioner tool w/shock cord tether
- 3,600lb gate strength twist-lock carabiners
- 4ea No.5014 3”od. O-Rings
- 2ea 6ft double D-ring heavy-duty tie-off straps
Compliance:
ANSI Z359.1-07/OSHA 1925.502
Carabiners: ANSI Z359.12
| Image | Part # | Description | UPC | |
|---|---|---|---|---|
| HLL Rope Kits | ||||
|
|
1325-60 | 60ft 2-3 person 3/8″ double braid HLL kit w/energy absorber, 2 carabiners, 4 ea 5014 O-rings, rope adjuster, 6420-U carry bag, 2ea 6032-DC 6ft double D-ring tie-off straps. | 786158132526 | |
| 1325-100 | 100ft 2-3 person 3/8″ double braid HLL kit w/energy absorber, 2 carabiners, 4 ea 5014 O-rings, rope adjuster, 6420-U carry bag, 2ea 6032-DC 6ft double D-ring tie-off straps. | 786158132519 | ||
|
|
Custom Double Braid HLL 1326-X Worksheet | |||
|
|
Custom Double Braid HLL 1325-X Worksheet | |||
| HLL Rope Kit Accessories | ||||
| 1325-T | 5/8″ (16mm)-3/4″ (19mm) Rope Tensioner w/Tool | 786158102533 | ||
| 1325-TT | Tensioner tool for No. 1325-T | 786158132540 | ||
|
|
1326-RC | Captive Rope Coupler for HLL Rope System | 786158132670 | |
|
|
4015-VLL | Value™ Rope Grab for HLL Rope System | 786158401554 | |
|
|
5014 | 3.0″ o.d. PPE Connector O-Ring | 786158501407 | |
|
|
6420-U | Large All-Pakka™ All-Pakka™ Cargo Bags | 786158642049 | |
|
|
6032-DC | 6ft Double D Tie-Off Strap | 786158603217 | |
|
|
2024 CRA Catalog – Pg. 106 | |||
| Compatible End-Anchors | ||||
|
|
1062 | E-Vac™ Anchor for 2×4 truss | 786158106206 | |
|
|
2100 | Flex Chain Anchor with screws and nails | 786158210002 | |
|
|
3013-D | Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging. | 786158301304 | |
|
|
1028-DP6 | Swivel D-Plate Anchor CRA with 6″x6″ HDG Bolt Attach Anchor | 786158102864 | |
|
|
1037 | 6″x6″x3/8″ HDG D-Plate anchor w/1090 Loop Top. 1-3/8″i.d. | 786158103717 | |
| 1207 | Standing Seam Anchor w/2pc SSC HDG Seam Clamps & 1pc PPE Swivel-D Anchor | 786158120752 | ||
HLL Rope Kits
Part # – 1325-60
Description:
60ft 2-3 person 5/8″ double braid HLL kit w/energy absorber, 2 carabiners, 3 ea 5014 O-rings, rope adjuster, 6420-U carry bag, 2ea 6032-DC 6ft double D-ring tie-off straps.
UPC:
786158132526
Part # – 1325-100
Description:
100ft 2-3 person 5/8″ double braid HLL kit w/energy absorber, 2 carabiners, 3 ea 5014 O-rings, rope adjuster, 6420-U carry bag, 2ea 6032-DC 6ft double D-ring tie-off straps.
UPC:
786158132519
HLL Rope Kit Accessories
Part # – 1325-T
Description:
5/8″ (16mm)-3/4″ (19mm) Rope Tensioner w/Tool
UPC:
786158102533
Part # – 1325-TT
Description:
Tensioner tool for No. 1325-T
UPC:
786158132540
Part # – 1326-RC
Description:
Captive Rope Coupler for HLL Rope System
UPC:
786158132670
Part # – 4015-VLL
Description:
Value Rope Grab for HLL Rope System
UPC:
786158401554
Part # – 5014
Description:
3.0″ o.d. PPE Connector O-Ring
UPC:
786158501407
Part # – 6420-U
Description:
Large All-Pakka™ All-Pakka™ Cargo Bags
UPC:
786158642049
Part # – 6032-DC
Description:
6ft Double D Tie-Off Strap
UPC:
786158603217
Compatible End-Anchors
Part # – 1062
Description:
E-Vac™ Anchor for 2×4 truss
UPC:
786158106206
Part # – 2100
Description:
Flex Chain Anchor with screws and nails
UPC:
786158210002
Part # – 3013-D
Description:
Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging.
UPC:
786158301304
Part # – 1028-DP6
Description:
Swivel D-Plate Anchor CRA with 6″x6″ HDG Bolt Attach Anchor
UPC:
786158102864
Part # – 1037
Description:
6″x6″x3/8″ HDG D-Plate anchor w/1090 Loop Top. 1-3/8″i.d.
UPC:
786158103717
Part # – 1207
Description:
Standing Seam Anchor w/2pc SSC HDG Seam Clamps & 1pc PPE Swivel-D Anchor
UPC:
786158120752
