Horizontal Lifeline Rope System 30° Fixed Length
No.1325 HLL rope is ideal for use with No.1207 standing seam anchor on metal panel roofing.
30° angle is automatically set based
on the rafter spacing. Doe’s not
require a HLL energy absorber.
The use of a personal energy
absorber is required.
Specifications:
- Min. tensile strength 5,000lb
- 12,000lb tensile strength 5/8”
double braid kernmantle rope - Aluminum swage w/clear TPE cover
- 3,600lb gate strength snaphooks
- Mfg. at SAS factory in Monroe, WA USA
Compliance:
- ANSI Z359.1-07/OSHA 1926.502
- Snaphooks: ANSI Z359.12
| Image | Part # | Description | Rafter Spacing/ft | HLL Length | wt/lb | UPC |
|---|---|---|---|---|---|---|
|
|
■ 1326-X | Custom 5/8” Double-Braid HLL | Specify Length | 786158132694 | ||
| ▲ 1326-10 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 10ft | 11′-6″ | 3.5 | 786158132618 | |
| ▲ 1326-12 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 12ft | 13′-6″ | 4.5 | 786158132625 | |
| ▲ 1326-14 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 14ft | 16′-0″ | 5.5 | 786158132632 | |
| ▲ 1326-16 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 16ft | 18′-4″ | 7.5 | 786158132649 | |
| ▲ 1326-18 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 18ft | 20′-6″ | 8.5 | 786158132656 | |
| ▲ 1326-20 | 5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks | 20ft | 23′-0″ | 9.5 | 786158132663 | |
 |

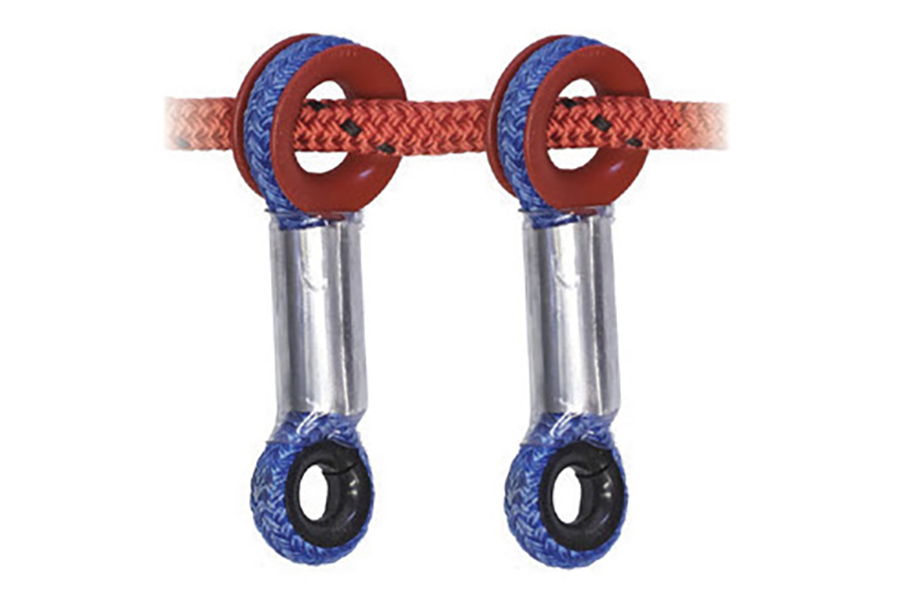

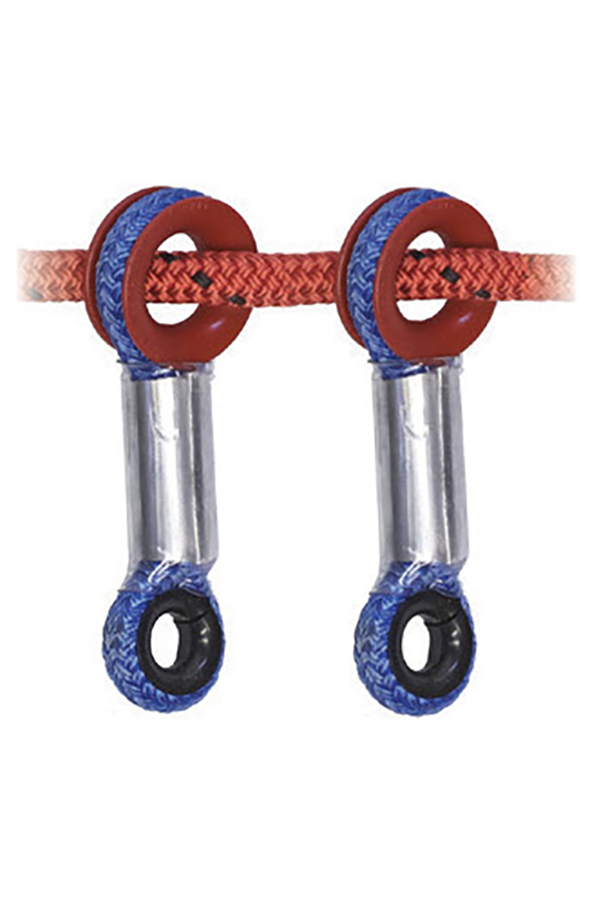

▲ 1326-RC | Captive Rope Coupler | 1 | 786158132670 | ||
|
|
▲ 1326-CS | Connector Sleeve, 2ea | 1 | 786158132601 | ||
|
|

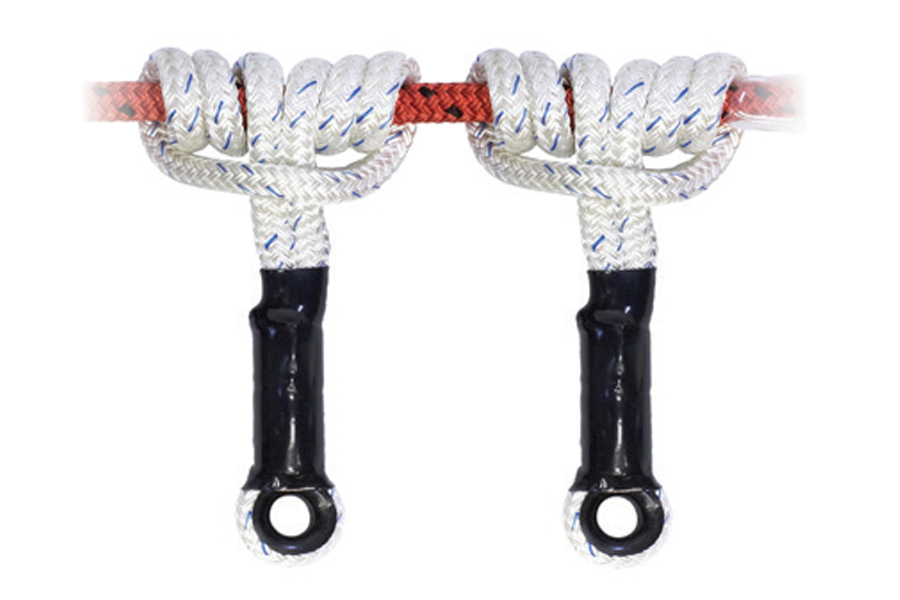

▲ 4015-VLL | HLL Rope Grab | 1 | 786158401554 | ||
|
|

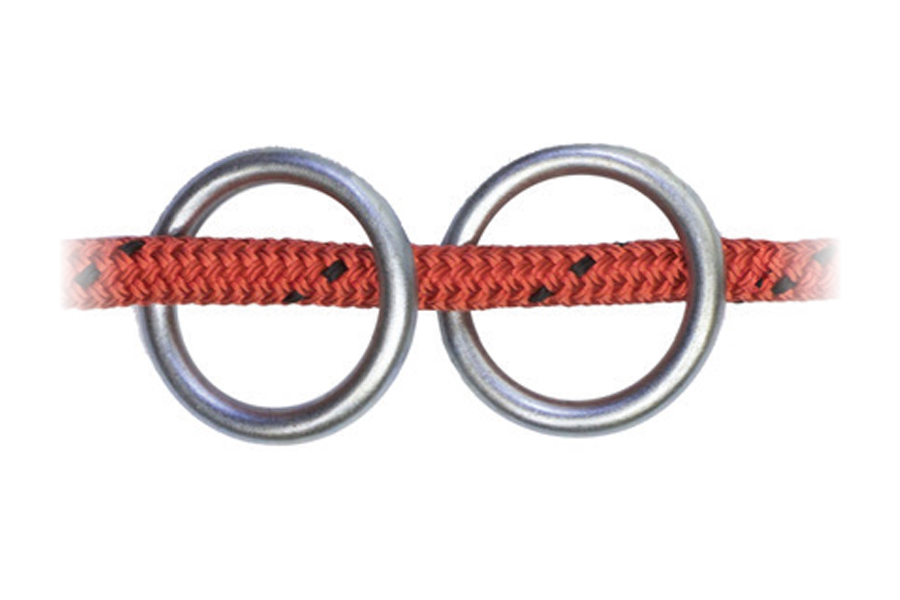

▲ 5014 | 3”od. O-Ring | 1 | 786158501407 | ||
|
|
2024 CRA Catalog Pg. 107 | N/A | ||||
|
|
Custom Double Braid HLL 1326-X Worksheet | |||||
|
|
Custom Double Braid HLL 1325-X Worksheet | |||||
| ■ = See custom worksheet | ▲ = Stocking Item | ||||||
HLL 30⁰ Fixed Length Ropes
Part # – 1326-10
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
10ft
Finished Length:
11′-6″
UPC:
786158132618
Part # – 1326-12
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
12ft
Finished Length:
13′-6″
UPC:
786158132625
Part # – 1326-14
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
14ft
Finished Length:
16′-0″
UPC:
786158132632
Part # – 1326-16
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
16ft
Finished Length:
18′-4″
UPC:
786158132649
Part # – 1326-18
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
18ft
Finished Length:
20′-6″
UPC:
786158132656
Part # – 1326-20
Description:
5/8″ Double-Braid HLL 30⁰ Fixed length w/2ea Snaphooks
Rafter Length:
20ft
Finished Length:
23′-0″
UPC:
786158132663
HLL 30° Rope Accessories
Part # – 1326-CS
Description:
Coupler Sleeve for use with HLL Double-Braid Rope. Fits Snaphooks and Carabiners
UPC:
786158132687
