CRA D-Plate Anchors
D-Plate Hoisting/Lifting Anchors
D-Plate anchors are 3rd party tested and engineered for hoisting/lifting applications.
Specifications
- No.1037-G5M/S5M min. tensile strength 10,000lb
- No.1301-G10M/S10M min. tensile strength 20,000lb
- 3,600lb proof load certificate provided for each D-plate
- 6”x6”x3/8” base plate
Lift Hook Compatibility
The lift hook crown must rotate freely when connected to the loop top.
Installation
- Bolt attach w/1/2” grd. 5, 8, or 18-8sst.
- Field weld or concrete embedment
Compliance
ANSI Z359.18-17 Type A/T
Intertek D-Plate 09-2020 test reports*
*Test equipment max. peak force 20,000lb
DH Glabe & Assoc. engineering report
Reports are available on request.
| Image | Part Name | Part # | Material Type | Top Fixture # | Top Fixture Type | Base Plate Inches | wt/lb | UPC |
|---|---|---|---|---|---|---|---|---|
 |
Swivel-D | 1028-DP6 | ▲ HDG | 1028 | Forged | 6x6x3/8 – 4 Hole | 6.4 | 786158102864 |
 |
Thread Top | 1028-DB6 | N/A | 5/8”-11×1” | 5.5 | 786158102871 | ||
 |

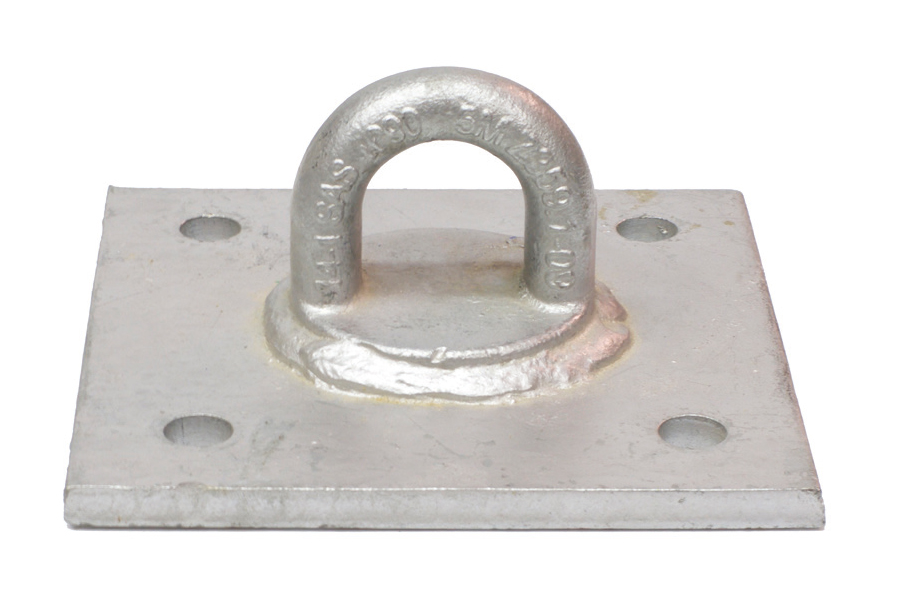

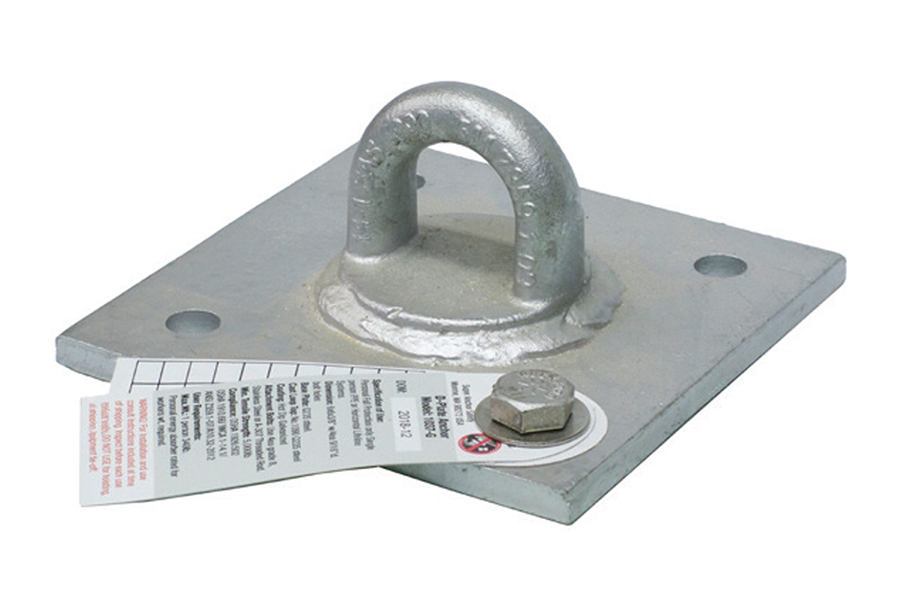

D-Plate Loop Top | 1037-G | 1090 | Q235 | 4.8 | 786158103717 | ||
| 1037-S | ▲ 304sst | 1090-S | 316sst | 786158103724 | ||||
 |

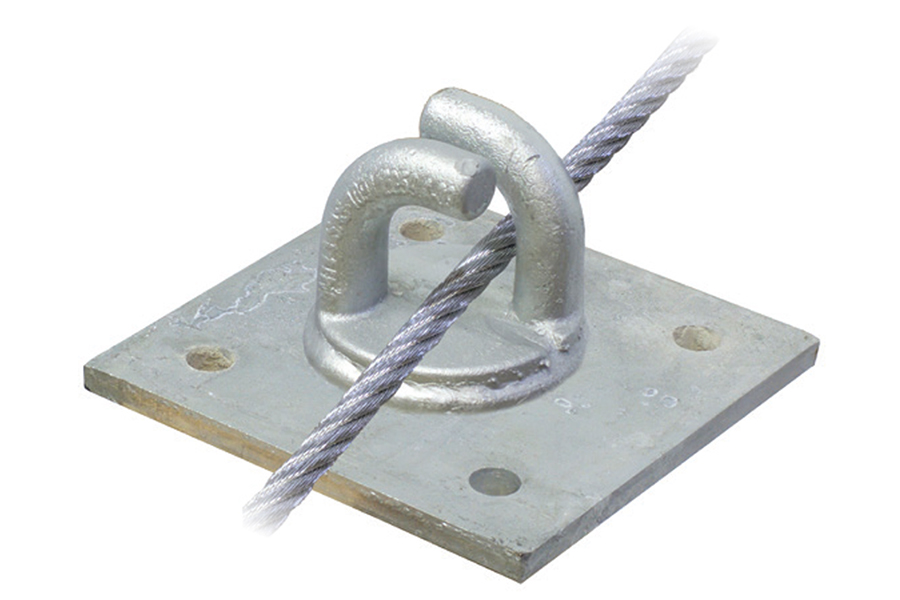

D-Plate Pass-Thru | 1037-PG | ■ HDG | 1091 | Q235 | 786158103755 | ||
| 1037-PS | ■ 304sst | 1091-S | 316sst | 786158103762 | ||||
 |
D-Plate | 1038 | ▲ PC* Steel | D-ring | Steel | 786158103809 | ||
| 1038-S | ▲ SST | SST | 786158103823 | |||||
 |
Backer Plate | 1039-R | ▲ Raw Steel | N/A | N/A | 3.6 | 786158103939 | |
| 1039-G | ▲ HDG | 786158103908 | ||||||
| 1039-S | ■ 304sst | 786158103915 | ||||||
 |

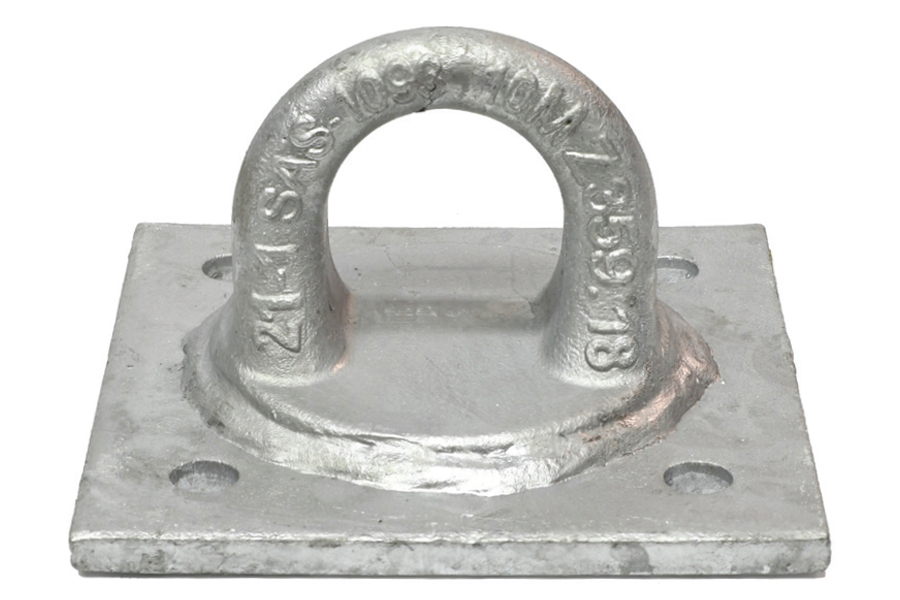

D-Plate CAL-OSHA | 1301-G | ▲ HDG | 1093 | Q345 | 6.2 | 786158130119 | |
| 1301-S | ■ 304sst | 1093-S | 316sst | 786158130126 | ||||
| ■ Standard Design Custom mfg. | ▲ = Stocking Item | ||||||||
| Image | Part # | Material Type | Loop Top | wt/lb | UPC | |
|---|---|---|---|---|---|---|
|
|
1037-G5M | ▲ HDG | No. – 1090 | Type – Q235 | 4.8 | 786158003772 |
| 1037-S5M | ▲ 304sst | No. – 1090-S | Type – 316sst | 4.8 | 786158003789 | |
|
|
1301-G10M | ▲ HDG | No. – 1093 | Q345 – Q345 | 6.2 | 786158130171 |
| 1301-S10M | ■ 304sst | No. – 1093-S | Type – 316sst | 6.2 | 786158130188 | |
|
|
1039-R | ▲ Raw Steel | N/A | N/A | 3.6 | 786158103939 |
| 1039-G | ▲ HDG | N/A | N/A | 3.6 | 786158103908 | |
| 1039-S | ■ 304sst | N/A | N/A | 3.6 | 786158103915 | |
| ■ = Standard Design Custom mfg. | ▲ = Stocking Item Note 1: Max. on site proof load 2,500lb. Note 2: Backer plates may be required for installation. |
||||||

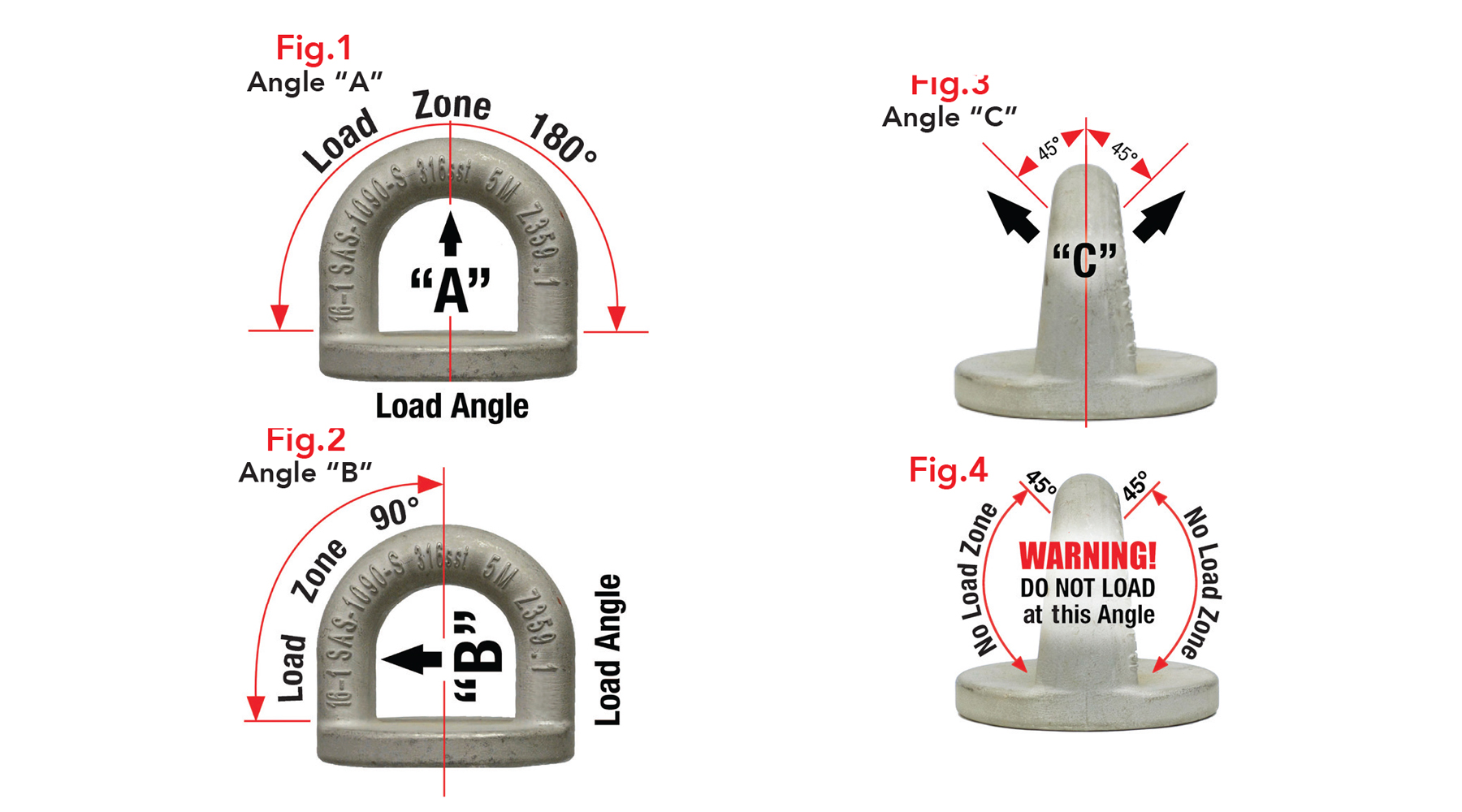

| Part# | Lifting Angle/lbs | ||
|---|---|---|---|
| “A” Fig.1 | “B” Fig.2 | “C” Fig.3 | |
| 1037-G5M | 6,600 | 6,600 | 5,150 |
| 1037-S5M | |||
| 1301-G10M | 6,600 | ||
| 1301-S10M | |||
Part Name: Swivel-D
Part #: 1028-DPG
Material Type: HDG (Stocking Item)
Top Fixture #: 1028
Top Fixture Type: Forged
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 6.4
Part Name: Thread Top
Part #: 1028-DB6
Material Type: HDG (Stocking Item)
Top Fixture #: N/A
Top Fixture Type: 5/8″-11×1″
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 5.5
Part Name: D-Plate Loop Top
Part #: 1037-G
Material Type: HDG (Stocking Item)
Top Fixture #: 1090
Top Fixture Type: Q235
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: D-Plate Loop Top
Part #: 1037-S
Material Type: 304sst (Stocking Item)
Top Fixture #: 1090-S
Top Fixture Type: 316sst
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: D-Plate Pass-Thru
Part #: 1037-PG
Material Type: HDG (Standard Design Custom mfg.)
Top Fixture #: 1091
Top Fixture Type: Q235
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: D-Plate Pass-Thru
Part #: 1037-PS
Material Type: 304sst (Standard Design Custom mfg.)
Top Fixture #: 1091-S
Top Fixture Type: 316sst
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: D-Plate
Part #: 1038
Material Type: PC Steel (Stocking Item)
Top Fixture #: D-ring
Top Fixture Type: Steel
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: D-Plate
Part #: 1038-S
Material Type: SST (Standard Design Custom mfg.)
Top Fixture #: D-ring
Top Fixture Type: SST
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 4.8
Part Name: Backer Plate
Part #: 1039-R
Material Type: Raw Steel (Stocking Item)
Top Fixture #: N/A
Top Fixture Type: N/A
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 3.6
Part Name: Backer Plate
Part #: 1039-G
Material Type: HDG (Stocking Item)
Top Fixture #: N/A
Top Fixture Type: N/A
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 3.6
Part Name: Backer Plate
Part #: 1039-S
Material Type: 304sst (Standard Design Custom mfg.)
Top Fixture #: N/A
Top Fixture Type: N/A
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 3.6
Part Name: D-Plate CAL-OSHA
Part #: 1301-G
Material Type: HDG (Stocking Item)
Top Fixture #: 1093
Top Fixture Type: Q345
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 6.2
Part Name: D-Plate CAL-OSHA
Part #: 1301-S
Material Type: 304sst (Standard Design Custom mfg.)
Top Fixture #: 1093-S
Top Fixture Type: 316sst
Base Plate: 6x6x3/8 – 4 Hole
wt/lb: 6.2
