CRA-PT Pass-Thru Anchors

3.0”od. CRA-PT Anchors

Intermediate anchors for CRA HLL systems up to 240ft w/max. 30ft spacing between anchors. Pass-Thru tops are designed for use with connector ring No.5010-SM providing travel between intermediate anchors along the entire length of the HLL cable without disconnecting.

Specifications:

Horizontal lifeline intermediate anchor
Min. tensile strength 5,000lb
No.1091 Q235 steel or 1091-S 316sst pass-thru tops
Hot dip galvanized (HDG), 304sst or 316sst
No.2022 40pc 2-1/2” hex head screws for 52 hole base plate models w/max. riser ht.18”
HLL 3rd party engineering by DH Glabe & Assoc. Report available on request
Contact SAS sales team for custom mfg. and lead times

Compliance:

ANSI Z359.1-07
OSHA 1926.502

Part # – 1031-PX
Riser Height: TBD
Material: Choose
Riser O.D.: TBD
Sch: TBD
Base Plate: TBD
Weight: TBD
Use Rating/Compatibility:
Pass-Thru Anchor, custom fabrication with 3.0″ o.d. and 1091 Top

Part # – 1031-PG ▲ (Stocking Item)
Riser Height: 5″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 6″x6″x3/8″ 4 Bolt Hole
Weight: 8
Use Rating/Compatibility:
CRA-PT5, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103120

Part # – 1031-PS
Riser Height: 5″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 6″x6″x3/8″ 4 Bolt Hole
Weight: 8
Use Rating/Compatibility:
CRA-PT5, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103137

Part # – 1035-PG
Riser Height: 8″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 36
Use Rating/Compatibility:
CRA-PT8, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103519

Part # – 1035-PS
Riser Height: 8″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 36
Use Rating/Compatibility:
CRA-PT8, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103533

Part # – 1032-PG ▲ (Stocking Item)
Riser Height: 12″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 41
Use Rating/Compatibility:
CRA-PT12, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103267

Part # – 1032-PS
Riser Height: 12″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 41
Use Rating/Compatibility:
CRA-PT12, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103274

Part # – 1033-PG ▲ (Stocking Item)
Riser Height: 18″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 46
Use Rating/Compatibility:
CRA-PT18, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103366

Part # – 1033-PS
Riser Height: 18″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 46
Use Rating/Compatibility:
CRA-PT18, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158103373

Part # – 1042-PG
Riser Height: 24″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 16″x16″x5/8″ 16 Bolt Hole
Weight: 50
Use Rating/Compatibility:
CRA-PT24, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158104226

Part # – 1042-PS
Riser Height: 24″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 12″x12″x5/8″ 8 Bolt Hole
Weight: 50
Use Rating/Compatibility:
CRA-PT24, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158104233

Part # – 1025-PG
Riser Height: 30″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 40
Base Plate: 12″x12″x5/8″ 8 Bolt Hole
Weight: 66
Use Rating/Compatibility:
CRA-PT30, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158102536

Part # – 1025-PS
Riser Height: 30″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 40
Base Plate: 12″x12″x5/8″ 8 Bolt Hole
Weight: 66
Use Rating/Compatibility:
CRA-PT30, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158102543

Part # – 1026-PG
Riser Height: 36″
Material: HDG Steel
Riser O.D.: 3.0″
Sch: 80
Base Plate: 12″x12″x5/8″ 8 Bolt Hole
Weight: 79
Use Rating/Compatibility:
CRA-PT36, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158102635

Part # – 1026-PS
Riser Height: 36″
Material: 304 SST
Riser O.D.: 3.0″
Sch: 80
Base Plate: 12″x12″x5/8″ 8 Bolt Hole
Weight: 79
Use Rating/Compatibility:
CRA-PT36, 3 person Fall Restraint PPE Anchor, HLL Intermediate Anchors
UPC: 786158102642

Commercial Roof Anchor Catalog,
CRA-PT Pass-Thru Anchors

Download PDF

CRA Backer Plates

Part # – 1084-BPR ▲ (Stocking Item)
Material: Raw Steel

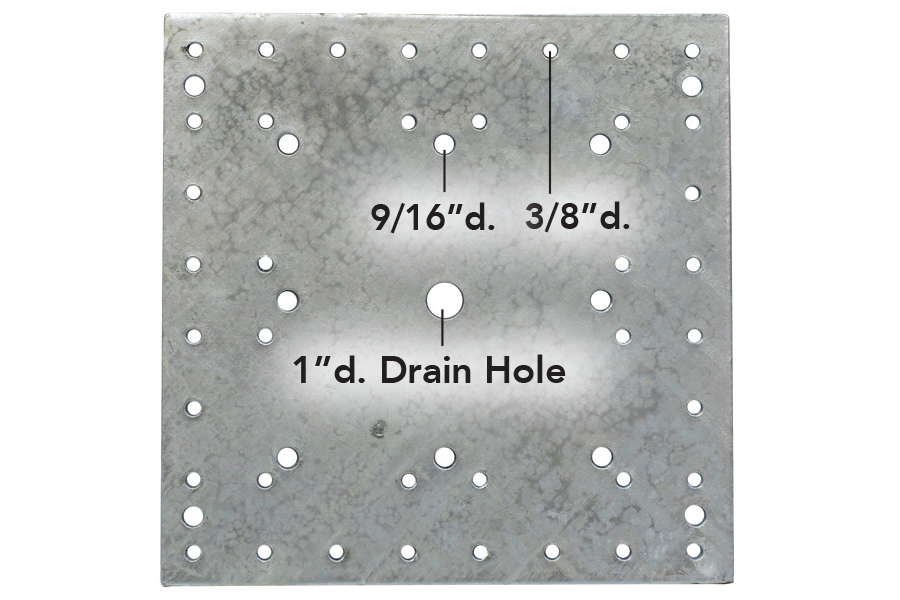

Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 28
Use Rating/Compatibility:
CRA-W’s and Anchors w/52 Bolt Hole Base Plates
UPC: 786158108408

Part # – 1084-BPG ▲ (Stocking Item)
Material: HDG Steel
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 28
Use Rating/Compatibility:
CRA-W’s and Anchors w/52 Bolt Hole Base Plates
UPC: 786158108415

Part # – 1084-BPS ▲ (Stocking Item)
Material: 304 SST
Base Plate: 16″x16″x3/8″ 52 Bolt Hole
Weight: 28
Use Rating/Compatibility:
CRA-W’s and Anchors w/52 Bolt Hole Base Plates
UPC: 786158108422

Part # – 1085-BPR ▲ (Stocking Item)
Material: Raw Steel
Base Plate: 16″x16″x5/8″ 16 Bolt Hole
Weight: 46
Use Rating/Compatibility:
CRA-W24 and Anchors w/16 Bolt Hole Base Plates
UPC: 786158108507

Part # – 1085-BPG ▲ (Stocking Item)
Material: HDG Steel
Base Plate: 16″x16″x5/8″ 16 Bolt Hole
Weight: 46
Use Rating/Compatibility:
CRA-W24 and Anchors w/16 Bolt Hole Base Plates
UPC: 786158108514

Part # – 1085-BPS ▲ (Stocking Item)
Material: 304 SST
Base Plate: 16″x16″x5/8″ 16 Bolt Hole
Weight: 46
Use Rating/Compatibility:
CRA-W24 and Anchors w/16 Bolt Hole Base Plates
UPC: 786158108521

Part # – 1409-BPR ▲ (Stocking Item)
Material: Raw Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 25
Use Rating/Compatibility:

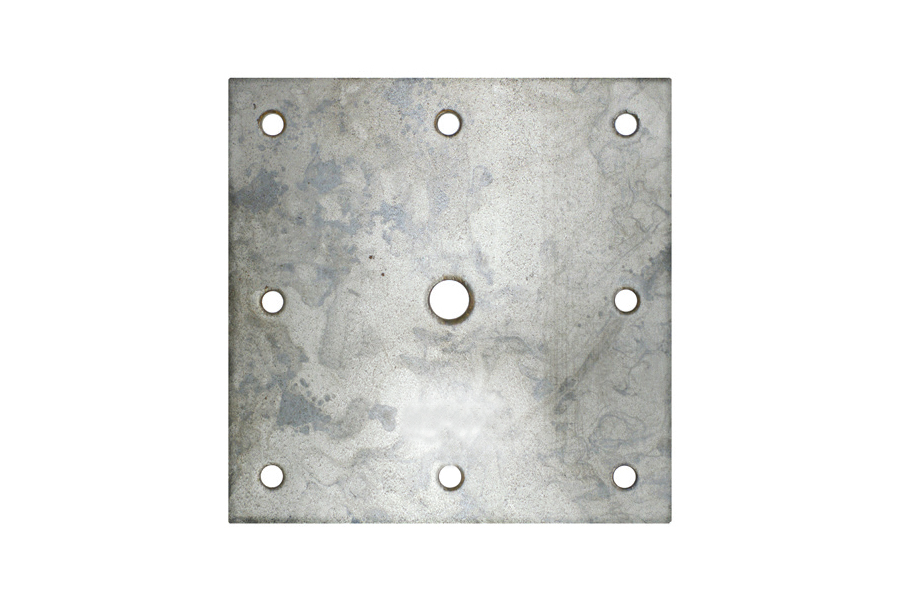

All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158140903

Part # – 1409-BPG
Material: HDG Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 25
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158140910

Part # – 1409-BPS
Material: 304 SST
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 25
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158140927

Part # – 1410-BPR ▲ (Stocking Item)
Material: Raw Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 31
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141009

Part # – 1410-BPG
Material: HDG Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 31
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141016

Part # – 1410-BPS
Material: 304 SST
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 31
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141023

Part # – 1412-BPR ▲ (Stocking Item)
Material: Raw Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 46
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141207

Part # – 1412-BPG
Material: HDG Steel
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 46
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141214

Part # – 1412-BPS
Material: 304 SST
Base Plate: 16″x16″x5/8″ 8 Bolt Hole
Weight: 46
Use Rating/Compatibility:
All Custom Mfg. with 12″x12″ 8 Bolt Hole Base Plates
UPC: 786158141221

Commercial Roof Anchor Catalog, Backer Plates

Download PDF

8-Bolt Pre-Engineered Base and Backer Plate Worksheet

Download PDF
