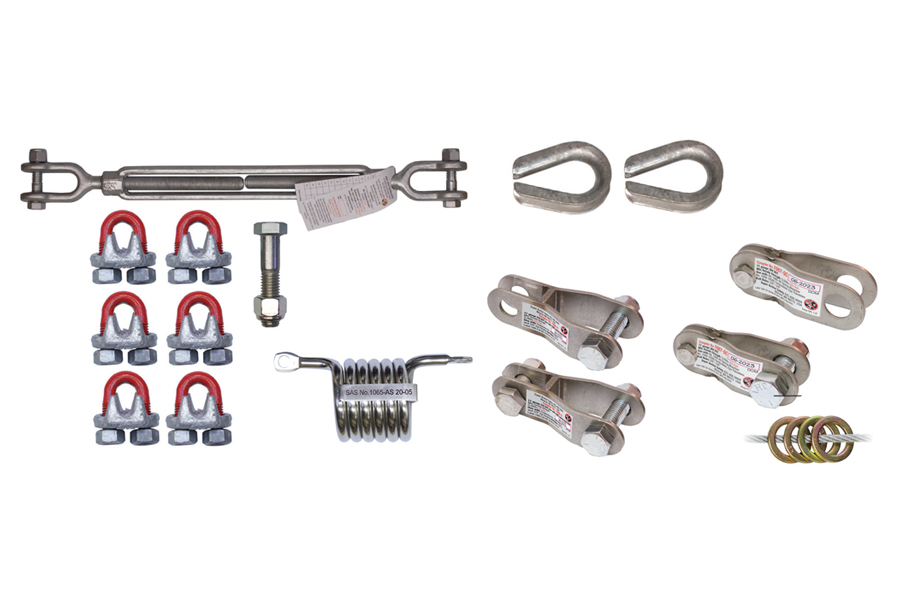

HLL rigging kits for CRO anchors mfg. with No.1093/1093-S loop tops. Supplied with 18-8 or= sst bolts and lock nuts. Order No.1055-X/1055-SX HLL cable separately. We also offer numerous parts to achieve a HLL system that works for your products including:

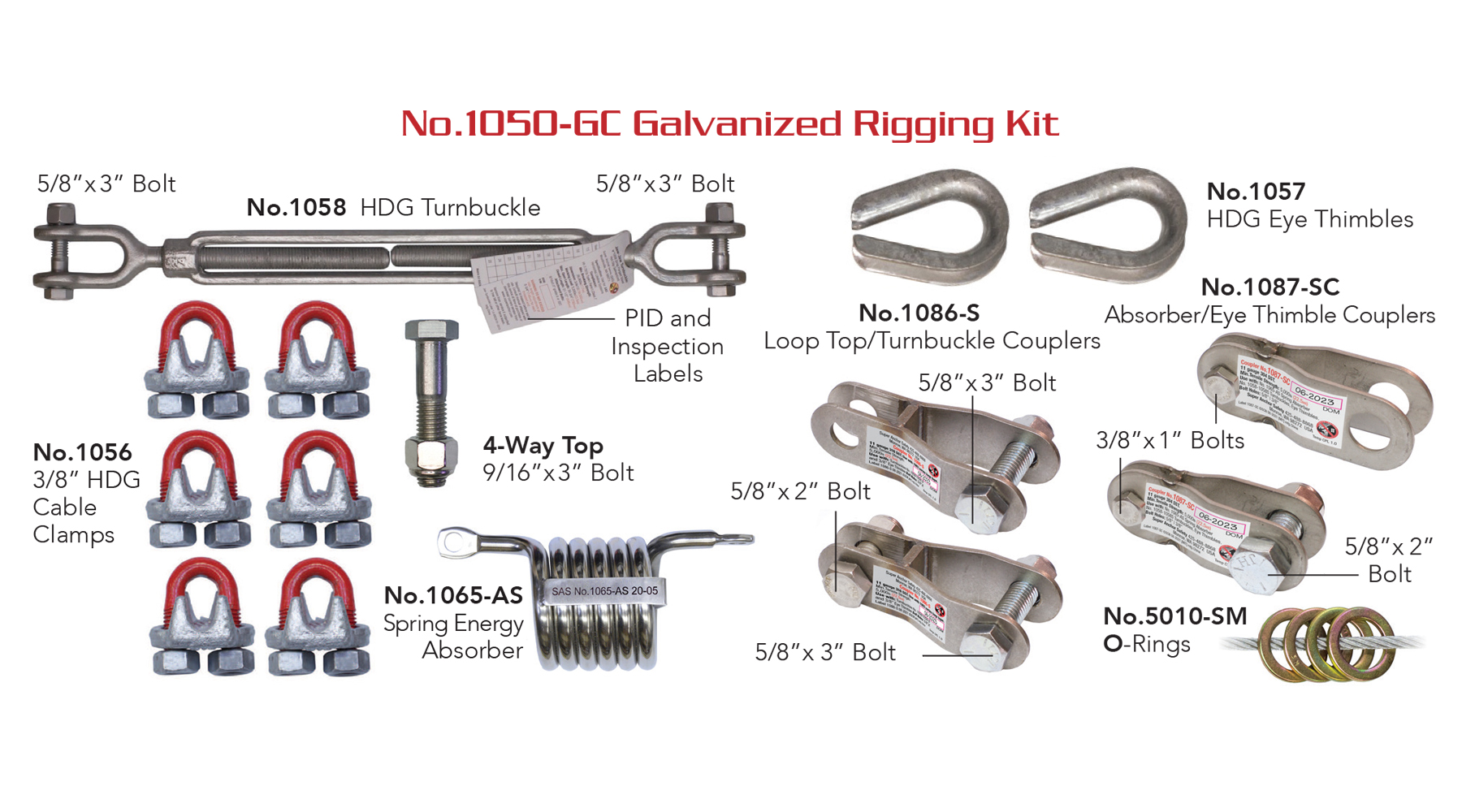

• Rigging Kits: our standard turnbuckle/clamps/thimbles/sliders/energy absorber for lifeline lengths up to 120’. They include everything you need for a complete installation except for the cable. Available in galvanized or stainless-steel finishes.
• Energy Absorber: a specialized in-line energy absorber
• Turnbuckles: used in the horizontal lifeline system to adjust wire rope length and tension. Available in galvanized or stainless-steel finishes. Use 1 turnbuckle in systems up to 60’ and 2 turnbuckles in systems 60’ – 120’.
• Cable: galvanized or stainless-steel 3/8” cable rated for 14,000 pounds. Use in runs up to 120’ and in conjunction with the rigging kits.
• Cable Clamps: used to terminate the end of the cable lifelines and available in galvanized and stainless-steel finishes.
• Cable Thimble: used to terminate the end of our cable systems and are required on both ends of the HLL. Available in galvanized or stainless-steel finishes.
• SAS Coupler Adapter: used to link turnbuckles, energy absorbers and CRA together
• Connector “O” Rings: permanently attached to the HLL and used to connect your personal protective equipment to slide through pass-thru top CRA’s.
• Pass-Thru Converter: a device that converts Pass-Thru Top CRA’s into a Loop Top to connect your PPE to for a fall arrest rating
• Label Packages: comprehensive warning, instruction and inspection label packages for all rigging equipment and hardware

Please refer to all applicable Instruction/Specification Manuals for further detailed information on rigging, attachment and use.
