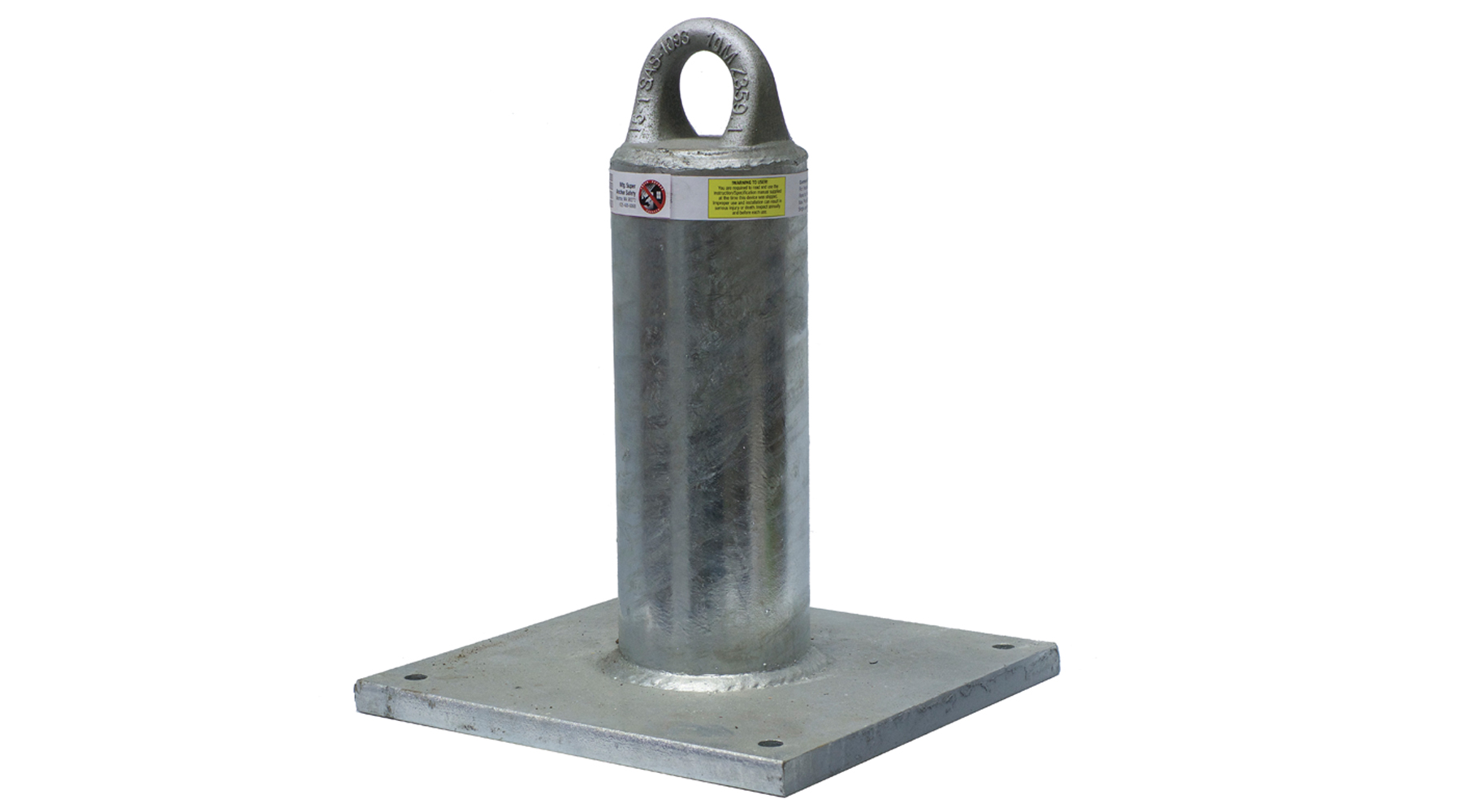

CRO CAL-OSHA Loop Top Anchors
4.5”od. CRO Anchors
CAL-OSHA compliant anchors feature a 2” id. No.1093/1093-S loop top. Our strongest engineered anchor design has zero deformation when a 5,000lb load is applied at any angle. CRO anchors are mfg. in the USA
Specifications
- Min. tensile strength 5,000lb
- No.1093 Q345 steel or No.1093-S 316sst loop tops tensile strength rating of 20,000lb*
- Hot dip galvanized (HDG), 304sst or 316sst
- 3rd party engineering by DH Glabe & Assoc.
Report available on request - Contact SAS sales team for custom mfg. and lead times
Compliance
ANSI Z359.18-17 Type A/T*
Window Washing: ANSI/IWCA I-14.1
CAL-OSHA Title 8
OSHA 1926.502
*Request Intertek CRO Lab Reports
Specified Use
- Window Washing
- Single Person PPE
- HLL Systems
| Image | Riser Height | Part Name | Part No. | Material Type | Loop Top No. | Loop Top Type | Base Plate Inches | Anchor wt/lb | ▲ Riser Sch. | UPC # |
|---|---|---|---|---|---|---|---|---|---|---|
| TBD | TBD | 1400-X | TBD | TBD | TBD | TBD | TBD | 80 0.337 4.5″od. |
||
| TBD | TBD | 1406-X | TBD | TBD | TBD | TBD | TBD | |||
|
|
8″ | △ CRO-8 | 1400-G | ■ HDG | 1093 | Q345 | 12 x 12 x 5/8 8 Hole |
43 | UPC: 786158140002 | |
| 1400-S | ■ 304sst | 1093-S | 316sst | UPC: 786158040029 | ||||||
|
|
12″ | △ CRO-12 | 1401-G | ■ HDG | 1093 | Q345 | 12 x 12 x 3/4 8 Hole |
49 | UPC: 786158140101 | |
| 1401-S | ■ 304sst | 1093-S | 316sst | UPC: 786158140118 | ||||||
|
|
18″ | △ CRO-18 | 1402-G | ■ HDG | 1093 | Q345 | 64 | UPC: 786158140200 | ||
| 1402-S | ■ 304sst | 1093-S | 316sst | UPC: 786158140217 | ||||||
|
|
24″ | △ CRO-24 | 1403-G | ■ HDG | 1093 | Q345 | 73 | UPC: 786158140309 | ||
| 1403-S | ■ 304sst | 1093-S | 316sst | UPC: 786158140316 | ||||||
|
|
30″ | △ CRO-30 | 1404-G | ■ HDG | 1093 | Q345 | 81 | UPC: 786158140408 | ||
| 1404-S | ■ 304sst | 1093-S | 316sst | UPC: 786158140415 | ||||||
|
|
36″ | △ CRO-36 | 1405-G | ■ HDG | 1093 | Q345 | 90 | UPC: 786158140507 | ||
| 1405-S” | ■ 304sst | 1093-S | 316sst | UPC: 786158140514 | ||||||
| ■ = Standard Design Custom mfg. | ▲ = Nominal Dimension | △ = Bolt, concrete Embedment, expansion bolts or field welded | ||||||||||
Part # – 1400-X, 1406-X
Riser Height: TBD
Riser O.D.: TBD
Sch.: TBD
Base Plate: TBD
Weight: TBD
Material: Choose
Use Rating/Compatibility:
1400-X – Loop Top Anchor, custom fabrication with 4.5″ o.d. and 1093 Top
1406-X – CRO CAL-OSHA Compliant Anchors, custom fabrication with 4.5″ o.d. and Cast Loop Top 2.0″
Part # – 1400-G
Riser Height: 8″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x5/8” – 8 Bolt Hole
Weight: 38
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1400-S
Riser Height: 8″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x5/8” – 8 Bolt Hole
Weight: 38
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1401-G
Riser Height: 12″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 49
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1401-S
Riser Height: 12″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 49
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1402-G
Riser Height: 18″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 66
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1402-S
Riser Height: 18″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 66
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1403-G
Riser Height: 24″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 79
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1403-S
Riser Height: 24″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 79
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1404-G
Riser Height: 30″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 137
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1404-S
Riser Height: 30″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 137
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1405-G
Riser Height: 36″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 158
Material: HDG Steel
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
Part # – 1405-S
Riser Height: 36″
Riser O.D.: 4.5″
Sch.: 80
Base Plate: 12″x12″x3/4” – 8 Bolt Hole
Weight: 158
Material: 304 SST
Use Rating/Compatibility:
1 person PPE Anchor, HLL End & Intermediate Anchors, Cal-OSHA Window Washing Anchor
