The anchor can be installed as a retro/reroof application or in new construction on low- and high-profile tile and slate roofing material. This is a double D-ring anchor that measures 40” in between the D-rings which allows them be exposed just under the last course of tile. The unique design does not require a conventional flashing system because the anchor does not penetrate the sheeting. It installs with 8 spiral shank stainless steel nails and includes a butyl flashing strip to provide a water-resistant installation. This low-profile strap anchor is aesthetically pleasing and can also be painted to match the roof color.

Features and Benefits:

  • Designed Specifically for High and Low Profile Tile Roofs
  • Includes a Butyl Strip for a Waterproof Seal
  • Low Profile Design Blends Into Roofing
  • Complies with all OSHA and ANSI Standards
  • Includes Stainless Steel Fasteners

Permanent Fastener Installation List:

Temporary Fastener Installation List:

2815-T - Tile-Retro Anchor
2815T Tile Roof Anchor Angle

Part #: 2815-T

Description:
Tile-Retro™ Anchor, 430 SST, Dacromet coated D-rings, Butyl Flashing & Fasteners.

UPC: 786158281583

2815-TBB - Tile-Retro Bulk Anchors

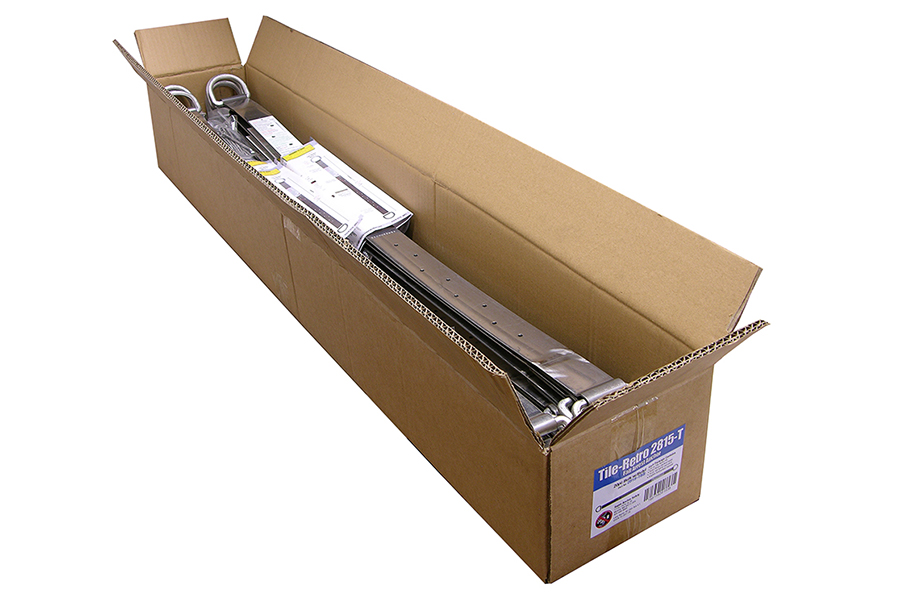

2815TBB Tile Roof 20pc Bulk Opened

Part #: 2815-TBB

Description:
Tile-Retro™ Bulk Anchor, 20 anchor minimum order, 430 SST, Dacromet coated D-rings, Butyl Flashing & Fasteners.

UPC: 786158281538

Replacement & Alternate Fastener Packs

Part #: 2042-20

Description:
Butyl Flashing Strip – 5”x1-1/4”x1/16” – Bulk Packaged – 20 Count

UPC:

2043-10 Butyl Flashing Strip
2043-10 - Butyl Flashing Strip

Part #: 2043-10

Description:
Butyl Flashing Strip – 7”x1-1/4”x1/16” – Bulk Packaged – 10 Count

UPC: 786158204391

2043-80 - Butyl Flashing Strip
2043-80 - Butyl Flash Strip

Part #: 2043-80

Description:
Butyl Flashing Strip – 7”x1-1/4”x1/16” – Bulk Packaged – 80 Count

UPC: 786158204315

2013 - Replacement Fastener Package
2013 - 36pc Shank Nail Pack

Part #: 2013

Description:
Replacement Fastener Package. 36ea. Stainless Steel Spiral Shank Nails. 12d, 304 SST. 3″

UPC: 786158201307

Part #: 2013-160

Description:
3″ 12d Spiral Shank Nails. Bulk package of 160

UPC: 786158201352

Part #: 2013-B

Description:
3″ 12d Spiral Shank Nails. Bulk box of 1440

UPC: 786158201321

2045-3.0 - Alternate Fastener Package
2045 - 3.0 36pc Pack

Part #: 2045-3.0

Description:
Alternate Fastener Package. 36 ea. Stainless Steel Bugle Head Screws. 304 SST. 3.0″

UPC: 786158204520

2045-3.5 - Alternate Fastener Package
2045 - 3.5 36pc Pack

Part #: 2045-3.5

Description:
Alternate Fastener Package. 36 ea. Stainless Steel Bugle Head Screws. 304 SST. 3.5″

UPC: 786158204550
