Max-Force™ Energy Absorbers

Product Information
Product Specifications
Instruction Manuals
  • Max-Force Energy Absorbers - Integral Rope Grab Options
  • Max-Force Energy Absorbers - Snaphook Options
  • Max-Force Energy Absorbers - Carabiner Options
  • Max-Force Energy Absorbers - Dee Web Options
  • Max-Force Energy Absorbers - Loop End Options



Part# Total Length Weight Description Elongation User Weight M.A.F. UPC

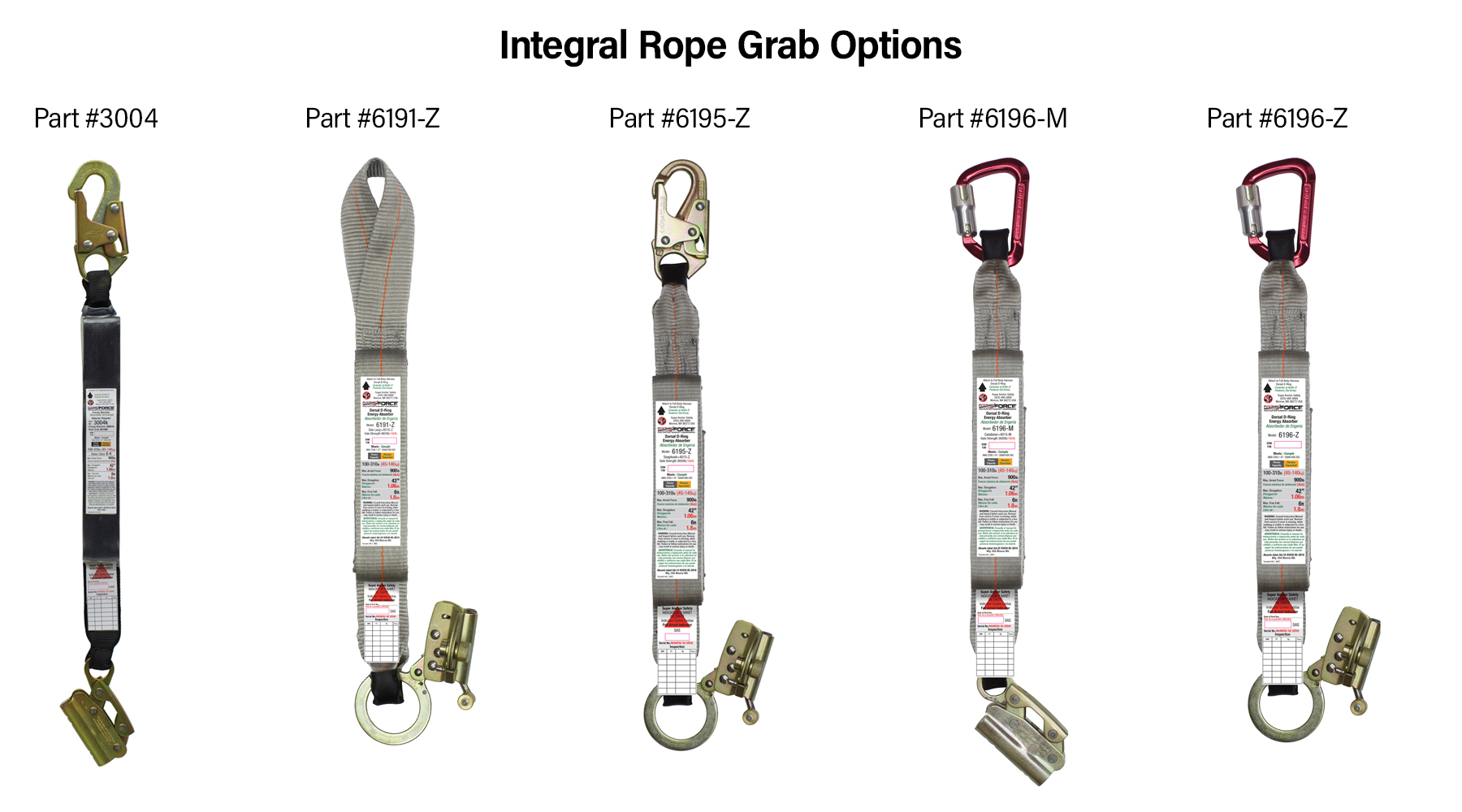

Integral Rope Grab Options
3004 23″ 38 oz. Max-Force™ Absorber with Snaphook & Mechanical Grab 42″ 130-310 pounds 900 pounds 786158300406
6191-Z 23″ 37 oz. Max-Force™ Absorber with Dee- Web & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619119
6195-Z 23″ 37 oz. Max-Force™ Absorber with Snaphook & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619508
6196-M 23″ 32 oz. Max-Force™ Absorber with Aluminum Carabiner & Mechanical Grab 42″ 130-310 pounds 900 pounds 786158619638
6196-Z 23″ 37 oz. Max-Force™ Absorber with Aluminum Carabiner & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619645

The Energy Absorber is one of the most critical components for fall protection and is required by OSHA when workers are exposed to a free fall hazard. Designed to limit maximum arrest forces while slowing the descent, our absorbers feature patented domestic manufactured tear webbing and the highest quality connectors. Max-Force™ personal energy absorbers are manufactured at our factory in Monroe, WA and are ensured for component compatibility with all Super Anchor Safety Personal Protection Equipment. An absolute must for fall protection.

Our Snaphook Series contains an ANSI Z359.12-09 3,600-pound gate strength connectors in the form of snaphooks, carabiners or our exclusive UltraLite Dee Web that connects to the rear D-ring of the user’s full body harness. Maximum arresting force is 900 pounds with a maximum deployment length of 42”.

Max-Force™ Absorbers are also supplied with Fall Arresters and Integral Adjusters (mechanical rope grabs). Mechanical Fall Arresters and Integral Adjusters have single direction locking functions that require correct orientation when installed onto a lifeline. Fall Arresters are removed from the lifeline by unlocking a hinged gate mechanism. Integral Adjusters are not designed for removal from the lifeline. Factory attachment on the absorber eliminates 1 connector resulting in a lighter component. #4015-C/Z are Panic Grab types that prevent the worker from disabling the locking function during a free fall.

  • Made in the USA
  • 100% Polyester Webbing Material
  • Fall Indicator Label
  • Inspection Report Label
  • TPE Wear Pad Loop End Accepts Snaphooks & Carabiners
  • Clear TPE Cover for Easy Inspection
  • English/Spanish Warning Labels
  • Hip Height Length for Easy Reach Adjustment



Part# Total Length Weight Description Elongation User Weight M.A.F. UPC

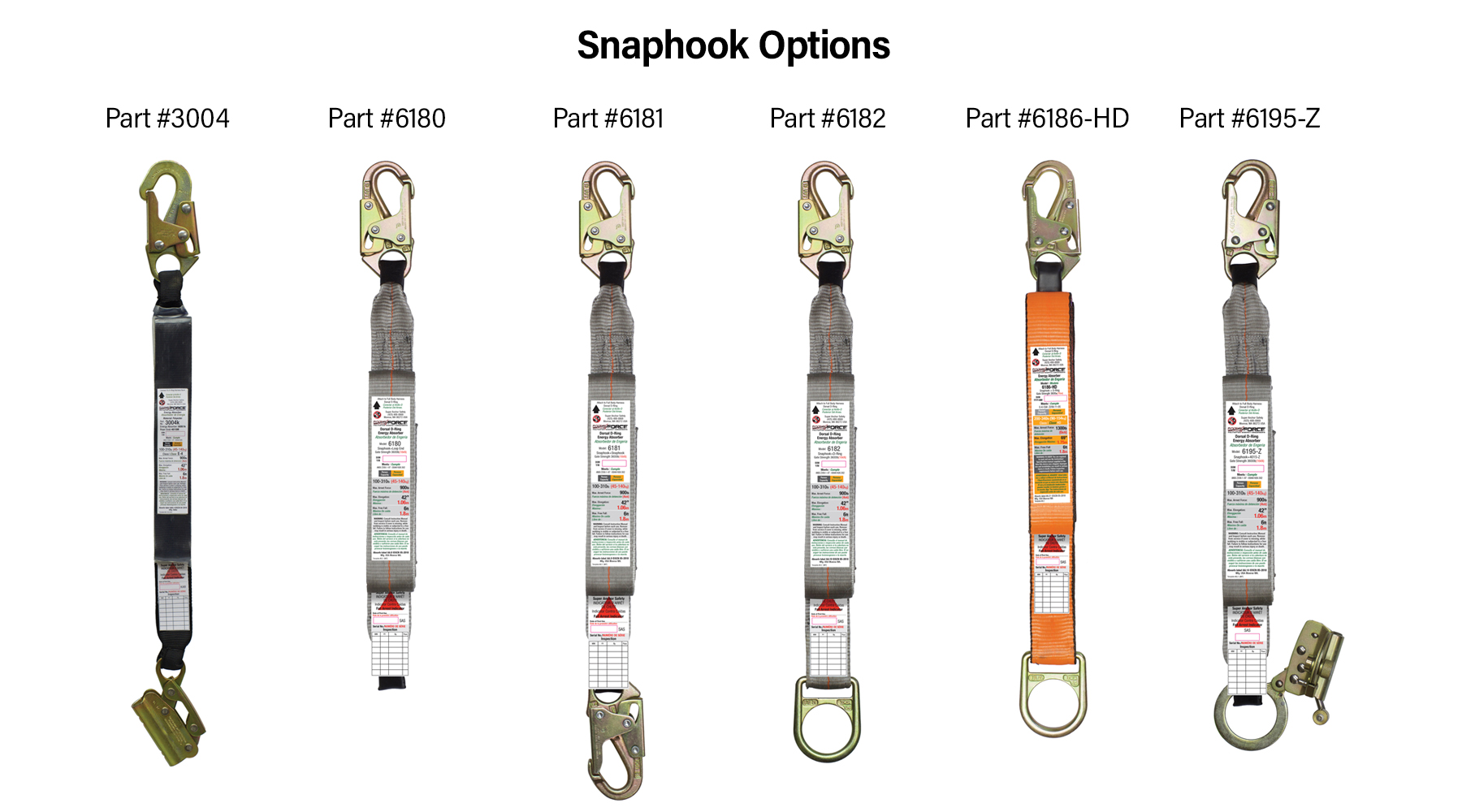

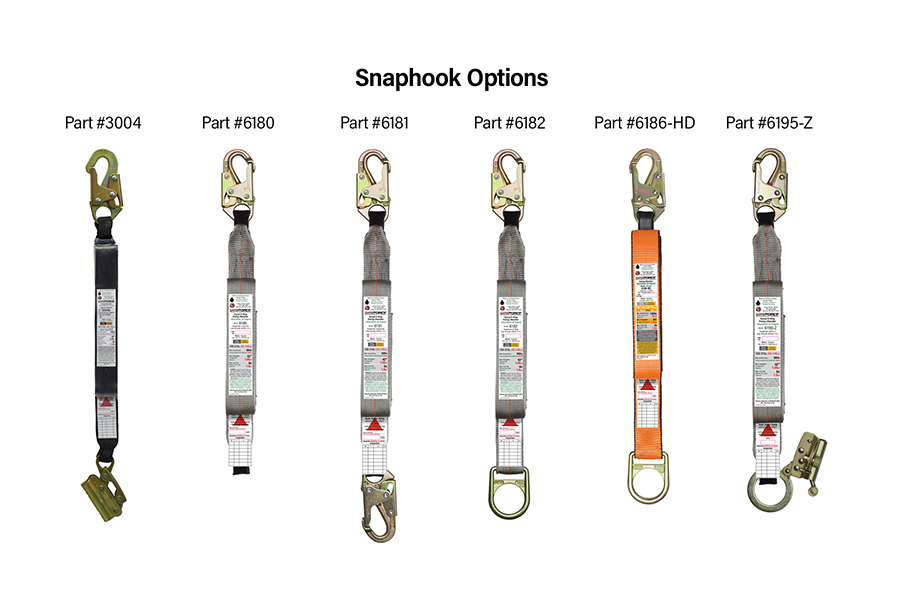

Snaphook Options
3004 23″ 38 oz. Max-Force™ Absorber with Snaphook & Mechanical Grab 42″ 130-310 pounds 900 pounds 786158300406
6180 24″ 25 oz. Max-Force™ Absorber with Snaphook & Loop End 42″ 130-310 pounds 900 pounds 786158618006
6181 28″ 38 oz. Max-Force™ Absorber with Snaphook & Snaphook 42″ 130-310 pounds 900 pounds 786158618105
6182 27″ 29 oz. Max-Force™ Absorber with Snaphook & D-Ring 42″ 130-310 pounds 900 pounds 786158618204
6186-HD 24″ 25 oz. Ultra Max-Force™ Absorber with Snaphook & D-Ring 69″ 200-340 pounds 1,300 pounds 786158618600
6195-Z 23″ 37 oz. Max-Force™ Absorber with Snaphook & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619508

The Energy Absorber is one of the most critical components for fall protection and is required by OSHA when workers are exposed to a free fall hazard. Designed to limit maximum arrest forces while slowing the descent, our absorbers feature patented domestic manufactured tear webbing and the highest quality connectors. Max-Force™ personal energy absorbers are manufactured at our factory in Monroe, WA and are ensured for component compatibility with all Super Anchor Safety Personal Protection Equipment. An absolute must for fall protection.

Our Snaphook Series contains an ANSI Z359.12-09 3,600-pound gate strength Snaphook sewn onto the end of the absorber. This connects to the rear D-ring of the user’s full body harness. Maximum arresting force is 900 pounds with a maximum deployment length of 42”.

Max-Force™ Absorbers are also supplied with Fall Arresters and Integral Adjusters (mechanical rope grabs). Mechanical Fall Arresters and Integral Adjusters have single direction locking functions that require correct orientation when installed onto a lifeline. Fall Arresters are removed from the lifeline by unlocking a hinged gate mechanism. Integral Adjusters are not designed for removal from the lifeline. Factory attachment on the absorber eliminates 1 connector resulting in a lighter component. #4015-C/Z are Panic Grab types that prevent the worker from disabling the locking function during a free fall.

  • Made in the USA
  • 100% Polyester Webbing Material
  • Fall Indicator Label
  • Inspection Report Label
  • TPE Wear Pad Loop End Accepts Snaphooks & Carabiners
  • Clear TPE Cover for Easy Inspection
  • English/Spanish Warning Labels
  • Hip Height Length for Easy Reach Adjustment



Part# Total Length Weight Description Elongation User Weight M.A.F. UPC

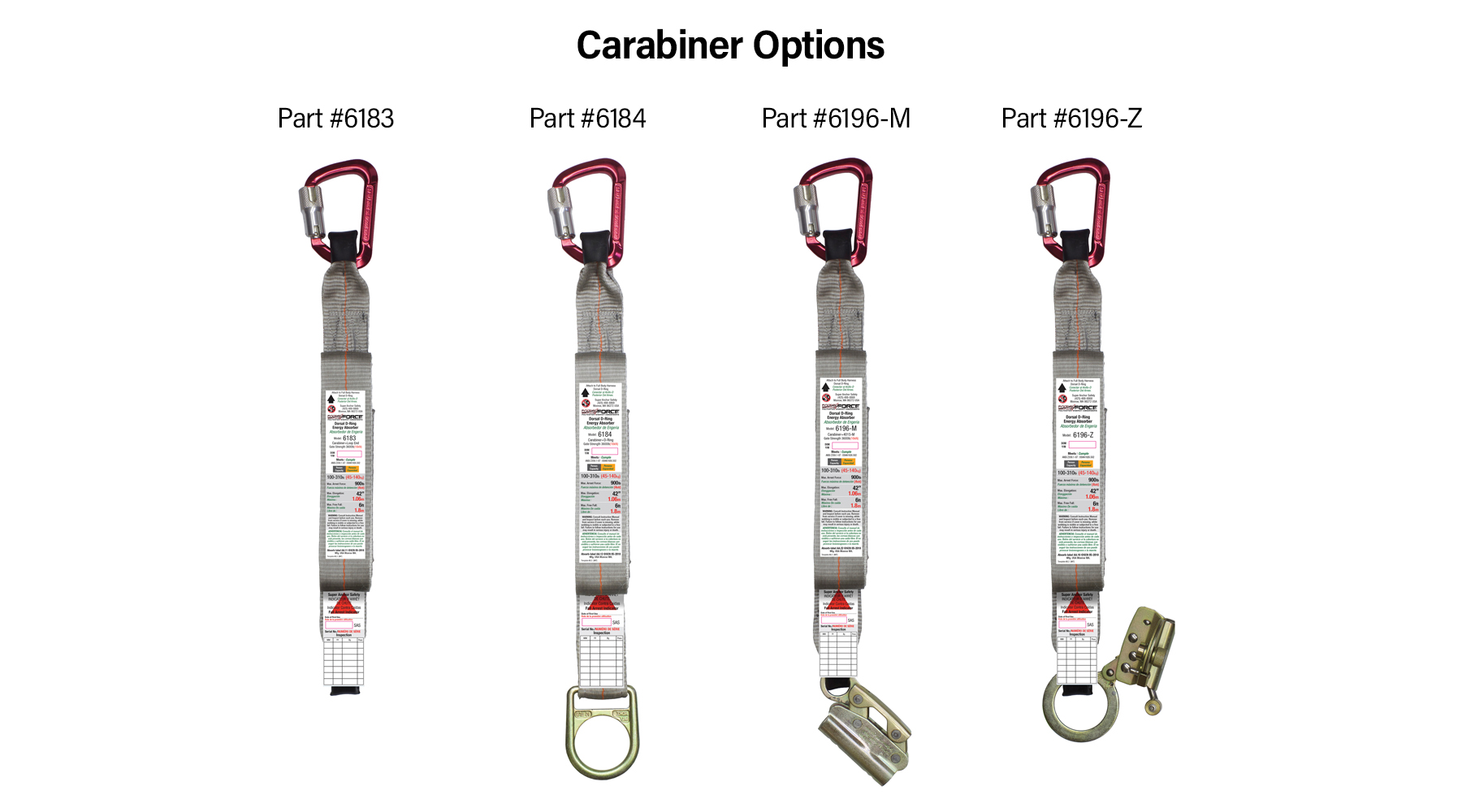

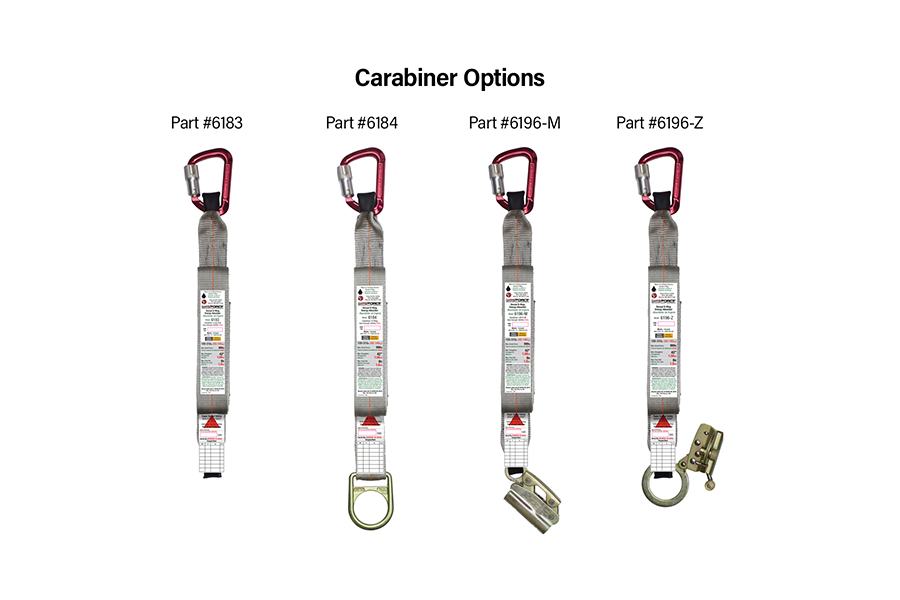

Carabiner Options
6183 20″ 16 oz. Max-Force™ Absorber with Aluminum Carabiner & Loop End 42″ 130-310 pounds 900 pounds 786158618303
6184 23″ 21 oz. Max-Force™ Absorber with Aluminum Carabiner & D-Ring End 42″ 130-310 pounds 900 pounds 786158618402
6196-M 23″ 32 oz. Max-Force™ Absorber with Aluminum Carabiner & Mechanical Grab 42″ 130-310 pounds 900 pounds 786158619638
6196-Z 23″ 37 oz. Max-Force™ Absorber with Aluminum Carabiner & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619645

The Energy Absorber is one of the most critical components for fall protection and is required by OSHA when workers are exposed to a free fall hazard. Designed to limit maximum arrest forces while slowing the descent, our absorbers feature patented domestic manufactured tear webbing and the highest quality connectors. Max-Force™ personal energy absorbers are manufactured at our factory in Monroe, WA and are ensured for component compatibility with all Super Anchor Safety Personal Protection Equipment. An absolute must for fall protection.

Our Carabiner Series contains an ANSI Z359.12-09 3,600-pound gate strength automatic locking aluminum carabiner connected to the end of the absorber. This connects to the rear D-ring of the user’s full body harness. Maximum arresting force is 900 pounds with a maximum deployment length of 42”.

Max-Force™ Absorbers are also supplied with Fall Arresters and Integral Adjusters (mechanical rope grabs). Mechanical Fall Arresters and Integral Adjusters have single direction locking functions that require correct orientation when installed onto a lifeline. Fall Arresters are removed from the lifeline by unlocking a hinged gate mechanism. Integral Adjusters are not designed for removal from the lifeline. Factory attachment on the absorber eliminates 1 connector resulting in a lighter component. #4015-C/Z are Panic Grab types that prevent the worker from disabling the locking function during a free fall.

  • Made in the USA
  • 100% Polyester Webbing Material
  • Fall Indicator Label
  • Inspection Report Label
  • TPE Wear Pad Loop End Accepts Snaphooks & Carabiners
  • Clear TPE Cover for Easy Inspection
  • English/Spanish Warning Labels
  • Hip Height Length for Easy Reach Adjustment







Part# Total Length Weight Description Elongation User Weight M.A.F. UPC
Dee-Loop Options
6190 23″ 14.2 oz. Max-Force™ Absorber with Dee-Loop & Captive Aluminum Carabiner 42″ 130-310 pounds 900 pounds 786158619003
6191-Z 23″ 37 oz. Max-Force™ Absorber with Dee-Loop & ADP Rope Grab Zinc 42″ 130-310 pounds 900 pounds 786158619119
6192 23″ 8.9 oz. Max-Force™ Absorber with Dee-Loop & Aluminum Carabiner 42″ 130-310 pounds 900 pounds 786158619201
6193 23″ 8.9 oz. Max-Force™ Absorber with Dee-Loop & D-Ring 42″ 130-310 pounds 900 pounds 786158619300

The Energy Absorber is one of the most critical components for fall protection and is required by OSHA when workers are exposed to a free fall hazard. Designed to limit maximum arrest forces while slowing the descent, our absorbers feature patented domestic manufactured tear webbing and the highest quality connectors. Max-Force™ personal energy absorbers are manufactured at our factory in Monroe, WA and are ensured for component compatibility with all Super Anchor Safety Personal Protection Equipment. An absolute must for fall protection.

Our Ultra-Lite Dee Web Series is the next generation in energy absorbers and a Super Anchor Safety exclusive design. Eliminating the connector on the end of the absorber results in a more comfortable attachment and component weight is reduced nearly 50% less than standard model absorbers. Our most popular model, #6190 is fitted with a super lightweight captive aluminum carabiner for the lightest weight of any absorber we make. The Ultra-Lite attaches to the dorsal D-ring with a web loop and meets the same compliance and performance as our standard model absorbers. Maximum arresting force is 900 pounds with a maximum deployment length of 42”.

Max-Force™ Absorbers are also supplied with Fall Arresters and Integral Adjusters (mechanical rope grabs). Mechanical Fall Arresters and Integral Adjusters have single direction locking functions that require correct orientation when installed onto a lifeline. Fall Arresters are removed from the lifeline by unlocking a hinged gate mechanism. Integral Adjusters are not designed for removal from the lifeline. Factory attachment on the absorber eliminates 1 connector resulting in a lighter component. #4015-C/Z are Panic Grab types that prevent the worker from disabling the locking function during a free fall.

  • Made in the USA
  • 100% Polyester Webbing Material
  • Fall Indicator Label
  • Inspection Report Label
  • TPE Wear Pad Loop End Accepts Snaphooks & Carabiners
  • Clear TPE Cover for Easy Inspection
  • English/Spanish Warning Labels
  • Hip Height Length for Easy Reach Adjustment



Part# Total Length Weight Description Elongation User Weight M.A.F. UPC

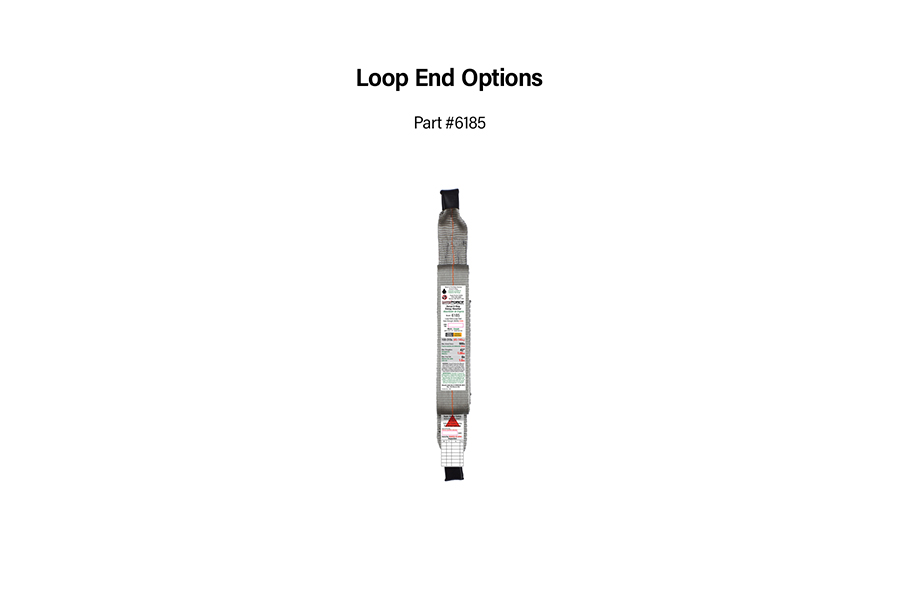

Loop End Options
6185 16″ 11 oz. Max-Force™ Absorber with Loop End and Loop End. No connectors 42″ 130-310 pounds 900 pounds 786158618501

The Energy Absorber is one of the most critical components for fall protection and is required by OSHA when workers are exposed to a free fall hazard. Designed to limit maximum arrest forces while slowing the descent, our absorbers feature patented domestic manufactured tear webbing and the highest quality connectors. Max-Force™ personal energy absorbers are manufactured at our factory in Monroe, WA and are ensured for component compatibility with all Super Anchor Safety Personal Protection Equipment. An absolute must for fall protection.

Our Snaphook Series contains an ANSI Z359.12-09 3,600-pound gate strength Snaphook sewn onto the end of the absorber. This connects to the rear D-ring of the user’s full body harness. Maximum arresting force is 900 pounds with a maximum deployment length of 42”.

Max-Force™ Absorbers are also supplied with Fall Arresters and Integral Adjusters (mechanical rope grabs). Mechanical Fall Arresters and Integral Adjusters have single direction locking functions that require correct orientation when installed onto a lifeline. Fall Arresters are removed from the lifeline by unlocking a hinged gate mechanism. Integral Adjusters are not designed for removal from the lifeline. Factory attachment on the absorber eliminates 1 connector resulting in a lighter component. #4015-C/Z are Panic Grab types that prevent the worker from disabling the locking function during a free fall.

  • Made in the USA
  • 100% Polyester Webbing Material
  • Fall Indicator Label
  • Inspection Report Label
  • TPE Wear Pad Loop End Accepts Snaphooks & Carabiners
  • Clear TPE Cover for Easy Inspection
  • English/Spanish Warning Labels
  • Hip Height Length for Easy Reach Adjustment

ANSI Custom Design Energy Absorber Worksheet

Download PDF

    Request more Information about the Max-Force™ Energy Absorbers:
