Max-FA Safety kits

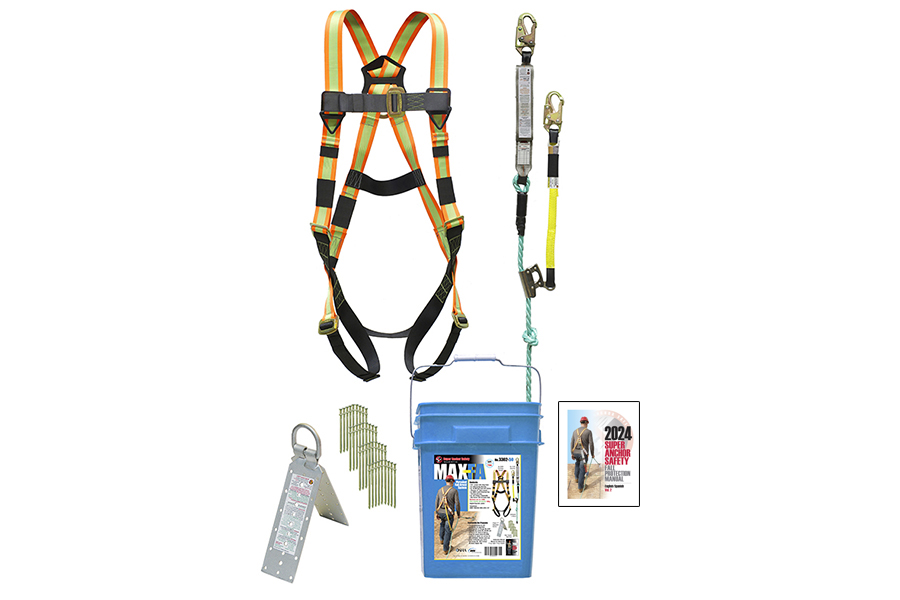

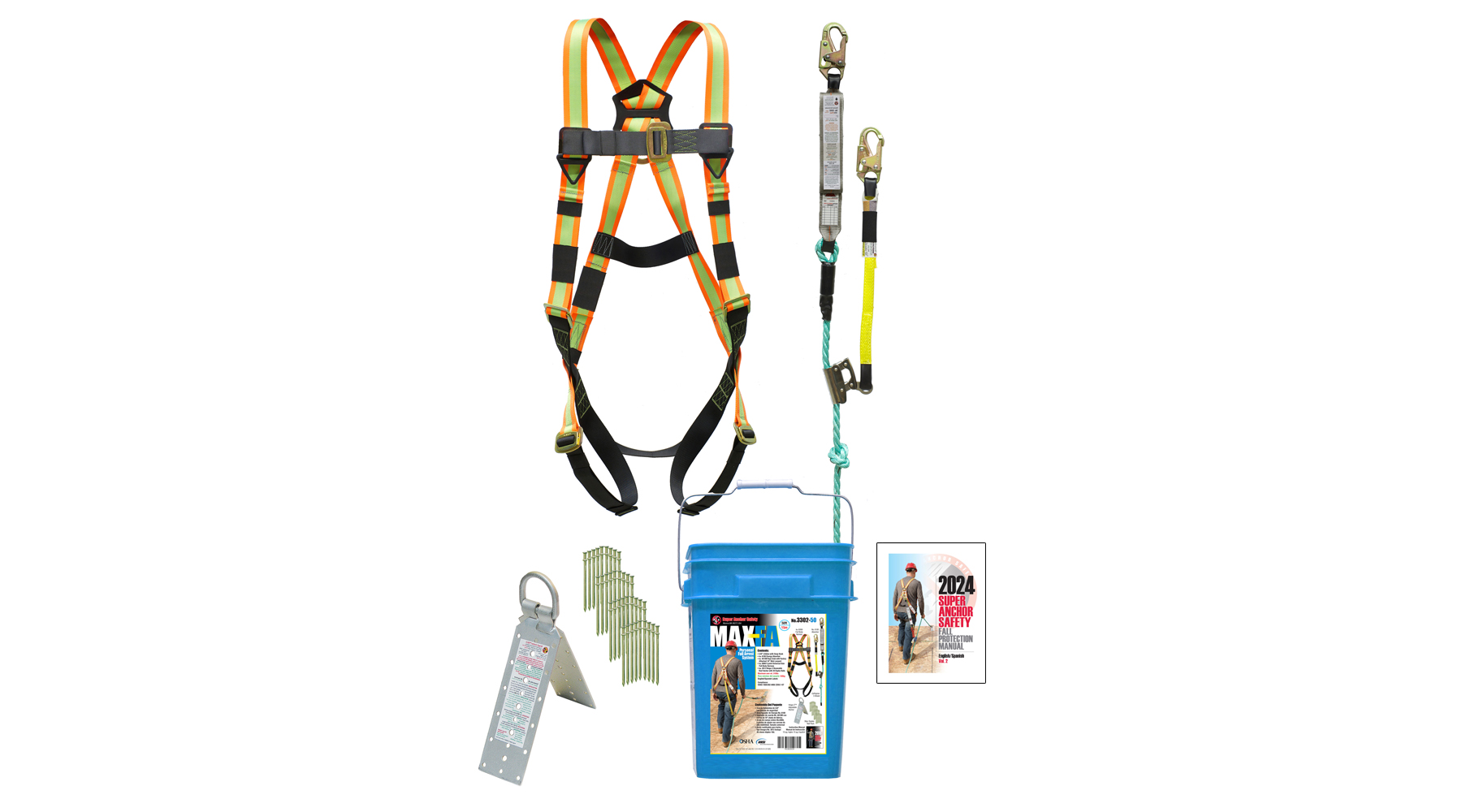

The MAX-FA features our Maxima™ 5/8″ diameter, 3-Strand lifeline with a factory attached energy absorber at the anchorage connector end reducing the bulk of a D-Ring attached energy absorber. The easiest and least expensive way to achieve OSHA compliance and not sacrifice comfort or safety. In this kit we include the Maxima™ fall arrester vertical lifeline with a factory attached Max-Force™ Energy Absorber and Snaphook, Value Harness universal size with 5-points of adjustment in our Hi-viz webbing, 18″x1” Web Lanyard with Snaphook and factory attached integral adjuster mechanical rope grab, Hinge-2™ reusable and fully adjustable roof anchor with fasteners, instruction manual, and a heavy-duty storage bucket with all contents packed inside. A complete fall arrest kit.

MAX-FA #3302 Fall Protection System Contents:

  • Maxima™ 5/8″ diameter, 3-Strand Fall Arrester Vertical Lifeline with Factory Attached Max-Force™ Energy Absorber and ANSI-Z359 3600lb. Gate Strength Snaphook-Available in 2 lengths 50’-#5500-50 & 30’-#5500-30
  • Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness – #6069
  • 18″x1” Web Lanyard with ANSI-Z359 3600lb. Gate Strength Snaphook and Factory Attached Integral Adjuster Dual Cam Mechanical Rope Grab – #6007M-18
  • Hinge-2™ Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
  • Heavy Duty Blue Storage Bucket with Black Lid – #3009
  • 20 Page Instruction Manual English/Spanish – #3011
  • Complies with OSHA and ANSI Standards

Part #: 3302-50

Description:
MAX-FA Fall Protection Kit, 50′ Fall Arrester Maxima™ 5/8″ diameter, 3-Strand Lifeline with factory attached Max-Force™ Energy Absorber with Snaphook, 18” Web Lanyard with Snaphook and Factory Attached Integral Adjuster Rope Grab, Value Harness Hi-Viz Universal Fit, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Blue Storage Bucket

UPC: 786158330229

Part #: 3302-30

Description:
MAX-FA Fall Protection Kit, 30′ Fall Arrester Maxima™ 5/8″ diameter, 3-Strand Lifeline with factory attached Max-Force™ Energy Absorber with Snaphook, 18” Web Lanyard with Snaphook and Factory Attached Integral Adjuster Rope Grab, Value Harness Hi-Viz Universal Fit, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Blue Storage Bucket

UPC: 786158330212

Replacement List

Maxima™ With Absorber

Part #: 5500-30

Description:
30′ Maxima™ Lifeline with Integral Energy Absorber

UPC: 786158550016

Part #: 5500-50

Description:
50′ Maxima™ Lifeline with Integral Energy Absorber

UPC: 786158550023

Part #: 5500-X

Description:
Maxima™ FA Custom Lifeline Assembly charge w/factory attached 6180 energy absorber. Combines w/4083-X Maxima™ Lifeline Price per Foot

UPC: 786158550009

Value Fall Arrester™ Harness

Part #: 6069

Description:
Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness

UPC: 786158606904

Polyester Web Lanyard

Part #: 6007M-18

Description:
18″x1″ Web Lanyard with ANSI-Z359 3600lb. Gate Strength Snaphook and Factory Attached Integral Adjuster Dual Cam Mechanical Rope Grab

UPC: 786158600728

Part #: 3013-D

Description:
Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging.

UPC: 786158301304

Part #: 2012-A

Description:
3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36.

UPC: 786158201205

Part #: 3009-B

Description:
Heavy Duty Blue Storage Bucket with Black Lid – #3009-B

UPC: 786158300901

2026 Fall Protection Manual – English/Spanish

2026 Fall Protection Manual - Cover

    Request more Information about the MAX-FA Safety Kits - 3302 Series:
