MAX Kit Safety Kits – 3001 Series

Max Kit:
The MAX is our original entry-level fall protection safety kit that is brimming with features. The MAX Kit is different from other kits in that it comes with 2 fall arrest anchors – the Hinge-2™ roof anchor and a 48” tie-off strap. The easiest and least expensive way to achieve OSHA compliance and not sacrifice comfort or safety. This kit includes the Value 5/8” diameter 3-strand vertical lifeline in 2 sizes, 5-point fully adjustable fall arrester harness in Hi-Viz webbing in 4 sizes with an optional red webbing in large size, Max Force energy absorber with Snaphook and integral adjuster mechanical rope grab, Hinge-2™ roof anchor with fasteners, 48” tie-off strap anchor, instruction manual and a heavy-duty storage bucket with all contents packed inside. A complete fall arrest kit.

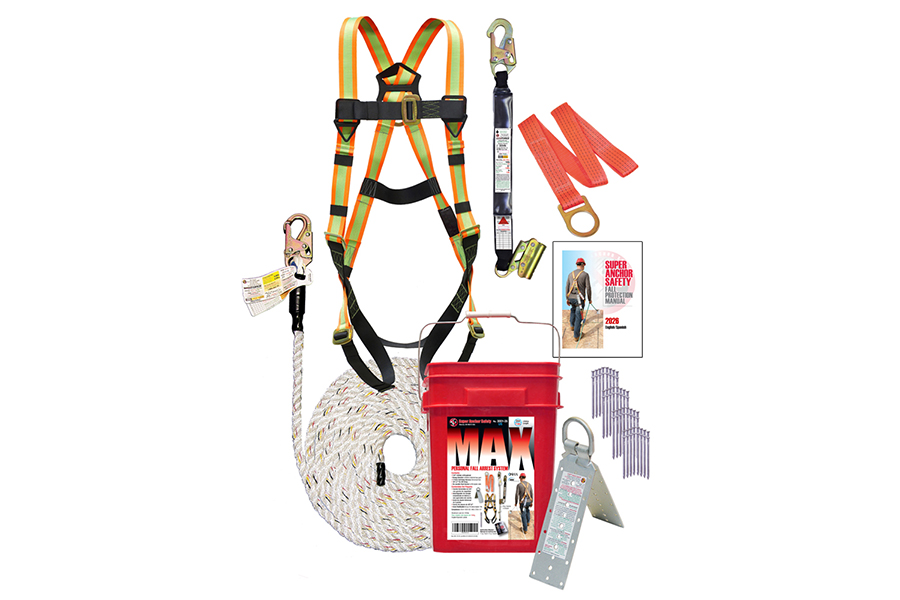

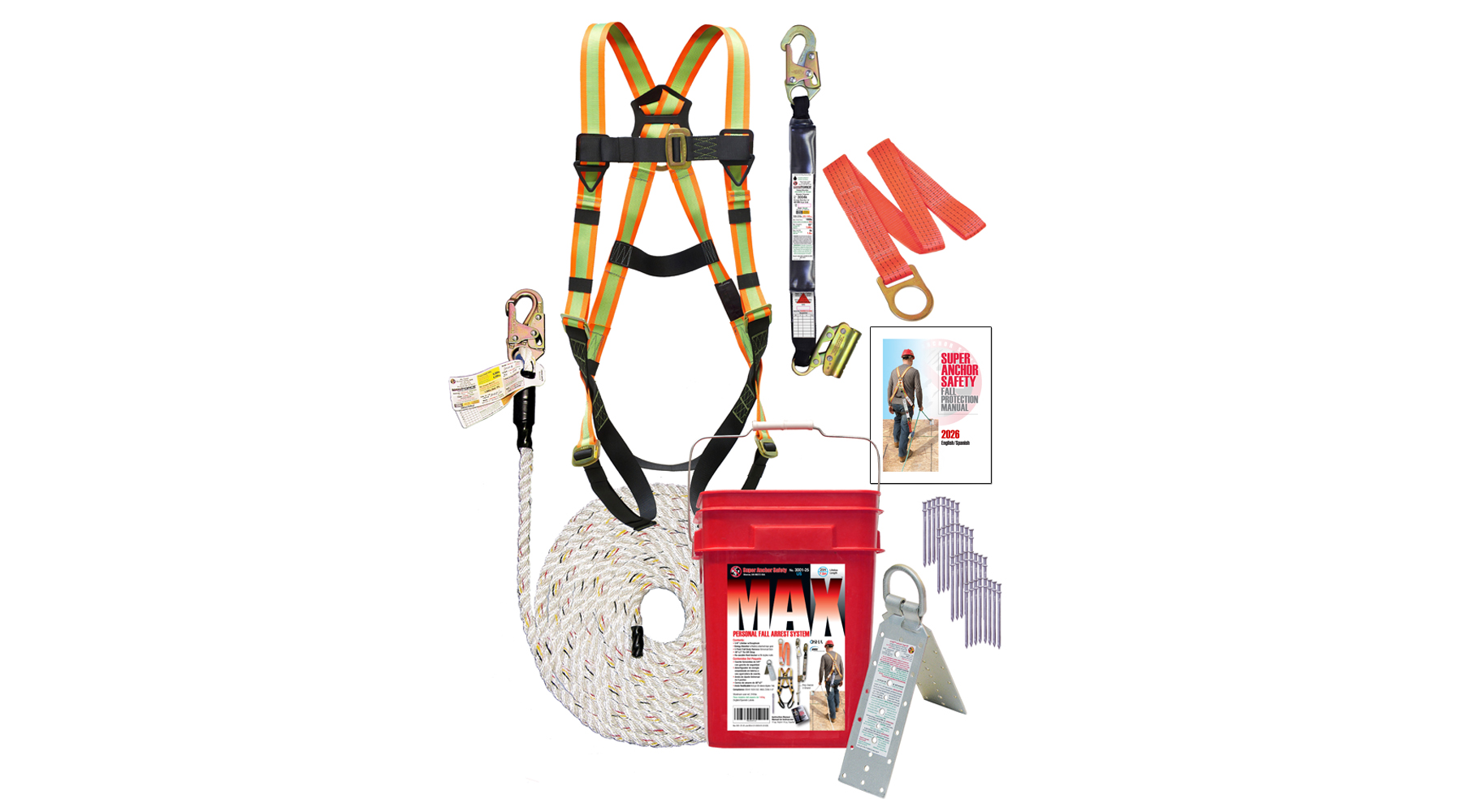

MAX #3001 Fall Protection System contents:
- Value Vertical Lifeline, 5/8” diameter, 3-strand with swaged ANSI-Z359 3,600lb. Gate Strength Snaphook – 50’-4020-50 & 25’- #4020-25
- Fall Arrester Harness, Hi-Viz Webbing, 5-Point Full Body Harness – Small-#6001-HVS, Medium-#6001-HVM, Large-#6001-HVL, X-Large-#6001-HVX Optional Red Webbing Large-#6001-RL
- Max-Force™ Energy Absorber with Factory Attached ANSI-Z359 3600lb. gate strength Snaphook & Integral Adjuster Dual Cam Mechanical Rope Grab – #3004
- Hinge-2™ Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
- 48”X2” Tie-Off Strap Anchor – #3005-C
- Heavy Duty Red Storage Bucket with Black Lid – #3009
- 20 Page Instruction Manual English/Spanish – #3011
- Complies with OSHA and ANSI Standards
Image | Part # | Description | UPC |
---|---|---|---|
3001-25HS | MAX Fall Protection Kit, 25′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Small Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890136 | |
3001-25HM | MAX Fall Protection Kit, 25′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Medium Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890143 | |
3001-25HL | MAX Fall Protection Kit, 25′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Large Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890129 | |
3001-25HX | MAX Fall Protection Kit, 25′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, X-Large Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158300161 | |
3001-25RL | MAX Fall Protection Kit, 25′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Large Fall Arrester Harness Red, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158300116 | |
3001-50HS | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Small Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890105 | |
3001-50HM | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Medium Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890112 | |
3001-50HL | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Large Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158890129 | |
3001-50HX | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, X-Large Fall Arrester Harness Hi-Viz, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158300161 | |
3001-50RL | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Large Fall Arrester Harness Red, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158300109 | |
3001-50RX | MAX Fall Protection Kit, 50′ Value 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, X-Large Fall Arrester Harness Red, Max-Force™ Energy Absorber with Snaphook and Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End, and Convenient Red Storage Bucket | 786158981346 | |
Replacement List | |||
4020-50 | 50′ Value 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook | 786158402025 | |
4020-30 | 30′ Value 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook | 786158402025 | |
4020-25 | 25′ Value 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook | 786158402001 | |
6001-HS | Fall Arrester Harness, Hi-Viz Webbing, 5-Point Full Body Harness, Size Small | 786158600155 | |
6001-HM | Fall Arrester Harness, Hi-Viz Webbing, 5-Point Full Body Harness, Size Medium | 786158600162 | |
6001-HL | Fall Arrester Harness, Hi-Viz Webbing, 5-Point Full Body Harness, Size Large | 786158600148 | |
6001-HXL | Fall Arrester Harness, Hi-Viz Webbing, 5-Point Full Body Harness, Size X-Large | 786158600179 | |
6001-RL | Fall Arrester Harness, Red Webbing, 5-Point Full Body Harness, Size Large | 786158600100 | |
3004 | Max-Force™ Energy Absorber with Factory Attached ANSI-Z359 3600lb. gate strength Snaphook & Integral Adjuster Dual Cam Mechanical Rope Grab | 786158300406 | |
3013-D | Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging. | 786158301304 | |
3005-C | 48″x2″ Tie Off Strap with Slotted D-Ring and Loop End | 786158300529 | |
2012-A | 3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36. | 786158201205 | |
3009-R | Heavy Duty Red Storage Bucket with Black Lid – #3009-R | 786158300918 | |
3011 | 2024 Fall Protection Manual |
