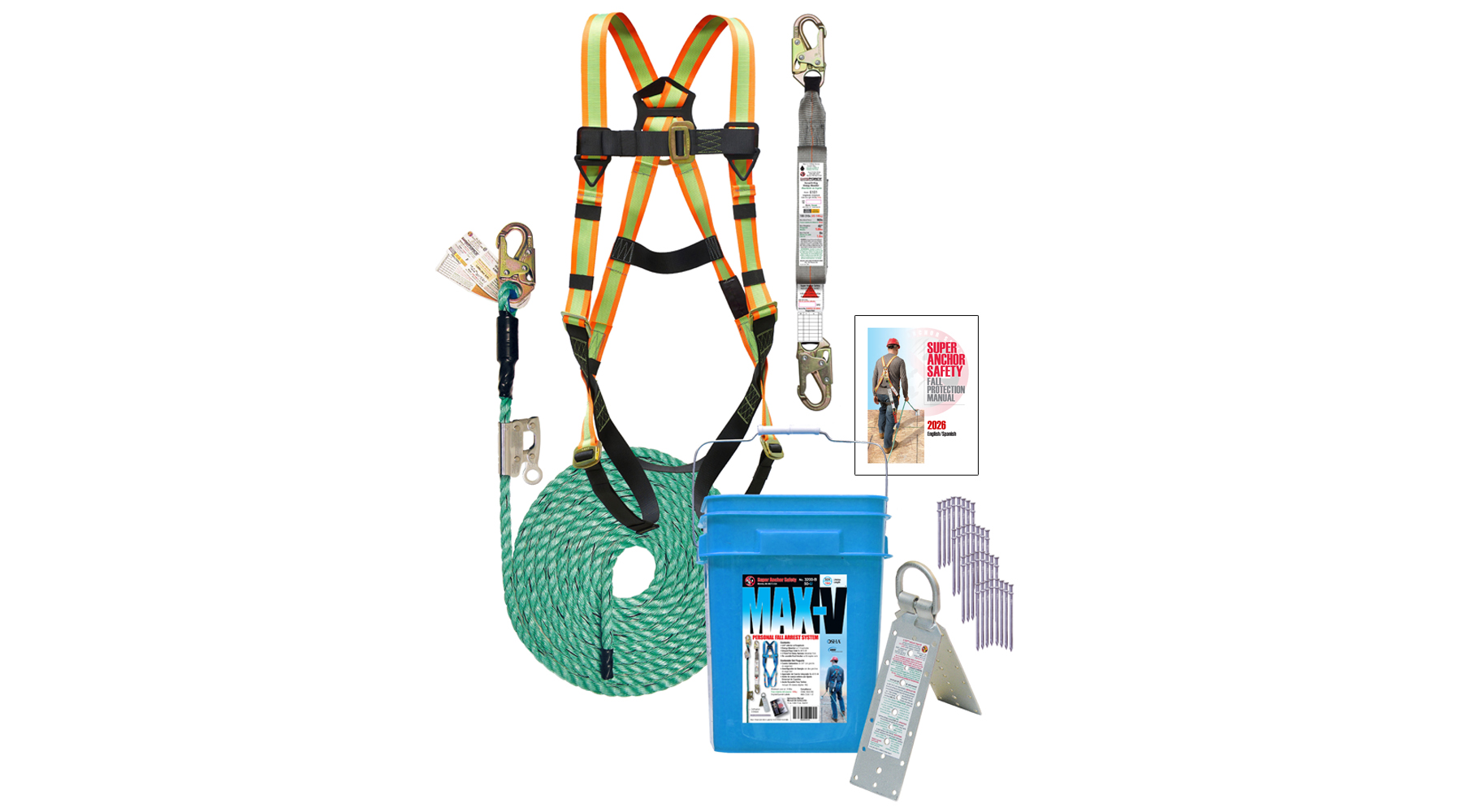

MAX-V Safety Kits – Removable Absorber – 3200 B Series
MAX-V Fall Protection Kit:
Our updated entry-level fall protection safety kit the MAX-V is brimming with features all packaged in a convenient storage bucket. The easiest and least expensive way to achieve OSHA compliance and not sacrifice comfort or safety. This kit includes the Maxima™ 5/8” diameter 3-strand vertical lifeline, Value harness universal size with 5-points of adjustment in our Hi-viz webbing, Max Force energy absorber with Snaphook and integral adjuster mechanical rope grab, Hinge-2™ reusable and fully adjustable roof anchor with fasteners, instruction manual, and a heavy-duty storage bucket with all contents packed inside. A complete fall arrest kit.

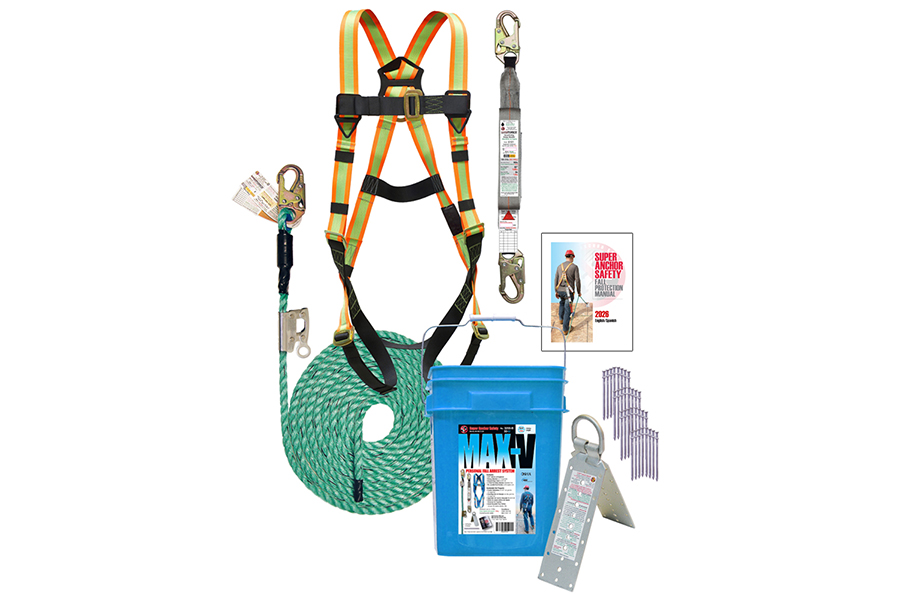

MAX-V #3200 Fall Protection System Contents:
- Maxima™ Vertical Lifeline, 5/8” diameter, 3-strand with swaged ANSI-Z359 3,600lb. Gate Strength Snaphook -30’-#4083-30 & 50’-#4083-50
- Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness – #6069
- Max-Force™ Energy Absorber with Factory Attached ANSI-Z359 3600lb. gate strength Snaphook & Integral Adjuster Dual Cam Mechanical Rope Grab – #3004
- Hinge-2™ Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
- Heavy Duty Blue Storage Bucket with Black Lid – #3009
- 20 Page Instruction Manual English/Spanish – #3011
- Complies with OSHA and ANSI Standards
Part #: 3200-B50
Description:
MAX-V Fall Protection Kit, 50′ Maxima™ 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Value Harness Hi-Viz Universal Fit, Max-Force™ Energy Absorber with Two Snaphooks, Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Blue Storage Bucket
UPC: 786158320091
Part #: 3200-B25
Description:
MAX-V Fall Protection Kit, 25′ Maxima™ 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Value Harness Hi-Viz Universal Fit, Max-Force™ Energy Absorber with Two Snaphooks, Integral Adjuster Rope Grab, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Blue Storage Bucket
UPC: 786158920000
Replacement List
Part #: 4083-50
Description:
50′ Maxima™ 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook
UPC: 786158408300
Part #: 4083-25
Description:
25′ Maxima™ 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook
UPC: 786158408324
Part #: 6069
Description:
Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness
UPC: 786158606904
Part #: 6181
Description:
Max-Force™ Energy Absorber with Two ANSI-Z359 3600lb gate strength Snaphook on Each End
UPC: 786158618105
Part #: 4015-M
Description:
Integral Adjuster Dual Cam Mechanical Rope Grab for 5/8″ Diameter Lifeline
UPC: 786158401523
Part #: 3013-D
Description:
Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging.
UPC: 786158301304
Part #: 2012-A
Description:
3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36.
UPC: 786158201205
Part #: 3009-B
Description:
Heavy Duty Blue Storage Bucket with Black Lid – #3009-B
UPC: 786158300901
