MAX-X ADP Grab Safety Kits – 4078 Series
MAX-X X-Line Fall Protection Kit with ADP Grab:
The MAX-X kit features our patented X-Line 5/8″ Diameter 12-Strand lifeline with integral pneumatic air line. The two component integration reduces tripping hazards by eliminating the need for a separate air line. Ideal for roofers, framers, siders and other trades that require fall protection and use air driven tools. The rope grab included in this kit is the fall arrester with panic grab (ADP type) single cam mechanical rope grab. The ADP rope grab is removable from the lifeline using the hinged gate. Connection to the ADP Fall Arrester is achieved via the Max-Force™ Energy Absorber with double Snaphooks. The harness included in this kit is the Value 5-point, Hi-viz webbing, universal fit fall arrest harness. We also include the Hinge-2™ reusable and fully adjustable anchor with fasteners. Finally, we pack all the contents into a convenient storage bucket to create a complete fall protection kit.

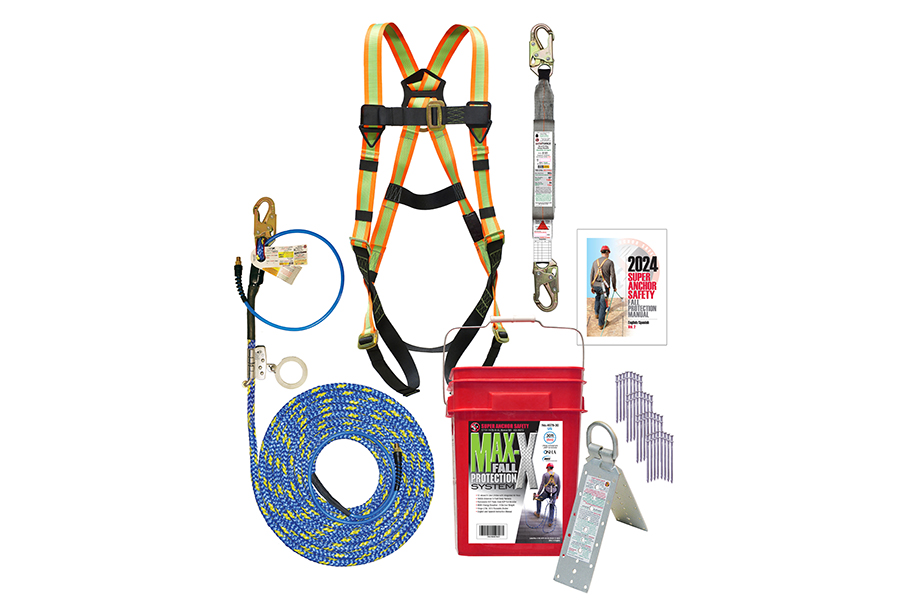

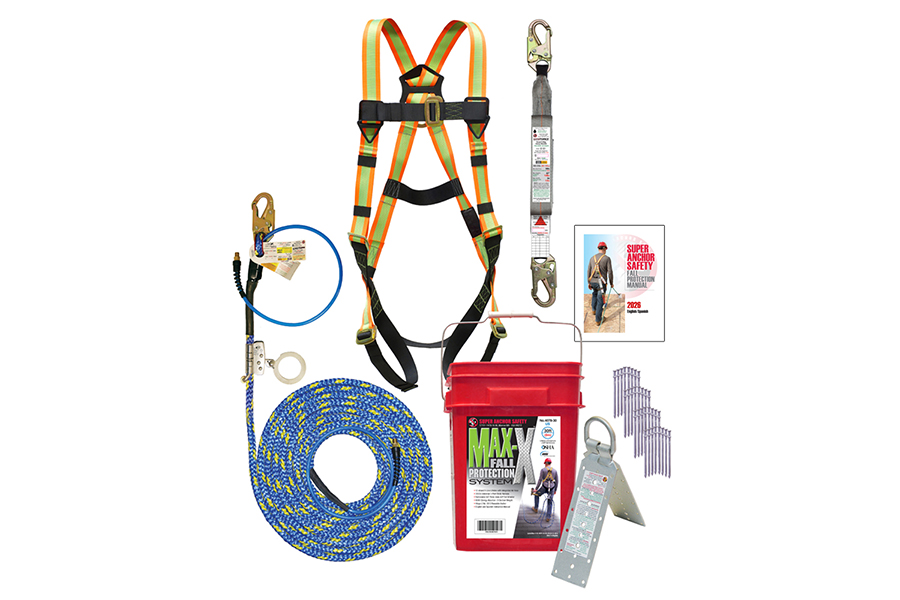

MAX-X #4078 Fall Protection System Contents:
- X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. Gate Strength Snaphook – 30’-#4072 & 50’-#4073
- Fall Arrester with Panic Grab (ADP type) Single Cam Mechanical Rope Grab for 5/8″ Diameter Lifeline with Hinged Gate to Allow for Removal from Lifeline Zinc Coated – #4015-Z
- Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness – #6069
- Max-Force™ Energy Absorber with Two ANSI-Z359 3600lb gate strength Snaphook on Each End – #6181
- Hinge-2™ Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
- Heavy Duty Red Storage Bucket with Black Lid – #3009
- 20 Page Instruction Manual English/Spanish – #3011
- Complies with OSHA and ANSI Standards
Part #: 4078-50
Description:
MAX-X Fall Protection Kit, 50′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with Snaphook with Fall Arrester Panic Grab (ADP type) Rope Grab, Value Harness Hi-Viz Universal Fit, Max-Force™ Energy Absorber with 2 Snaphooks, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Red Storage Bucket
UPC: 786158407822
Part #: 4078-30
Description:
MAX-X Fall Protection Kit, 30′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with Snaphook with Fall Arrester Panic Grab (ADP type) Rope Grab, Value Harness Hi-Viz Universal Fit, Max-Force™ Energy Absorber with 2 Snaphooks, Hinge-2™ Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Red Storage Bucket
UPC: 786158407815
Replacement Items
Part #: 4064-50
Description:
50′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook, Fall Arrester ADP Mechanical Rope Grab and ANSI-Z359 Aluminum Twist Lock Carabiner
UPC: 786158406429
Part #: 4064-30
Description:
30′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook, Fall Arrester ADP Mechanical Rope Grab and ANSI-Z359 Aluminum Twist Lock Carabiner
UPC: 786158406405
Part #: 6069
Description:
Value Harness, Hi-Viz Webbing, Universal Size, 5-Point Full Body Harness
UPC: 786158606904
Part #: 6181
Description:
Max-Force™ Energy Absorber with Two ANSI-Z359 3600lb gate strength Snaphook on Each End
UPC: 786158618105
Part #: 4015-Z
Description:
Fall Arrester with Panic Grab (ADP type) Single Cam Mechanical Rope Grab for 5/8″ Diameter Lifeline with Hinged Gate to Allow for Removal from Lifeline Zinc Coated
UPC: 786158401547
Part #: 3013-D
Description:
Hinge-2™ Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging.
UPC: 786158301304
Part #: 2012-A
Description:
3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36.
UPC: 786158201215
Part #: 3009-R
Description:
Heavy Duty Red Storage Bucket with Black Lid – #3009-R
UPC: 786158300918
