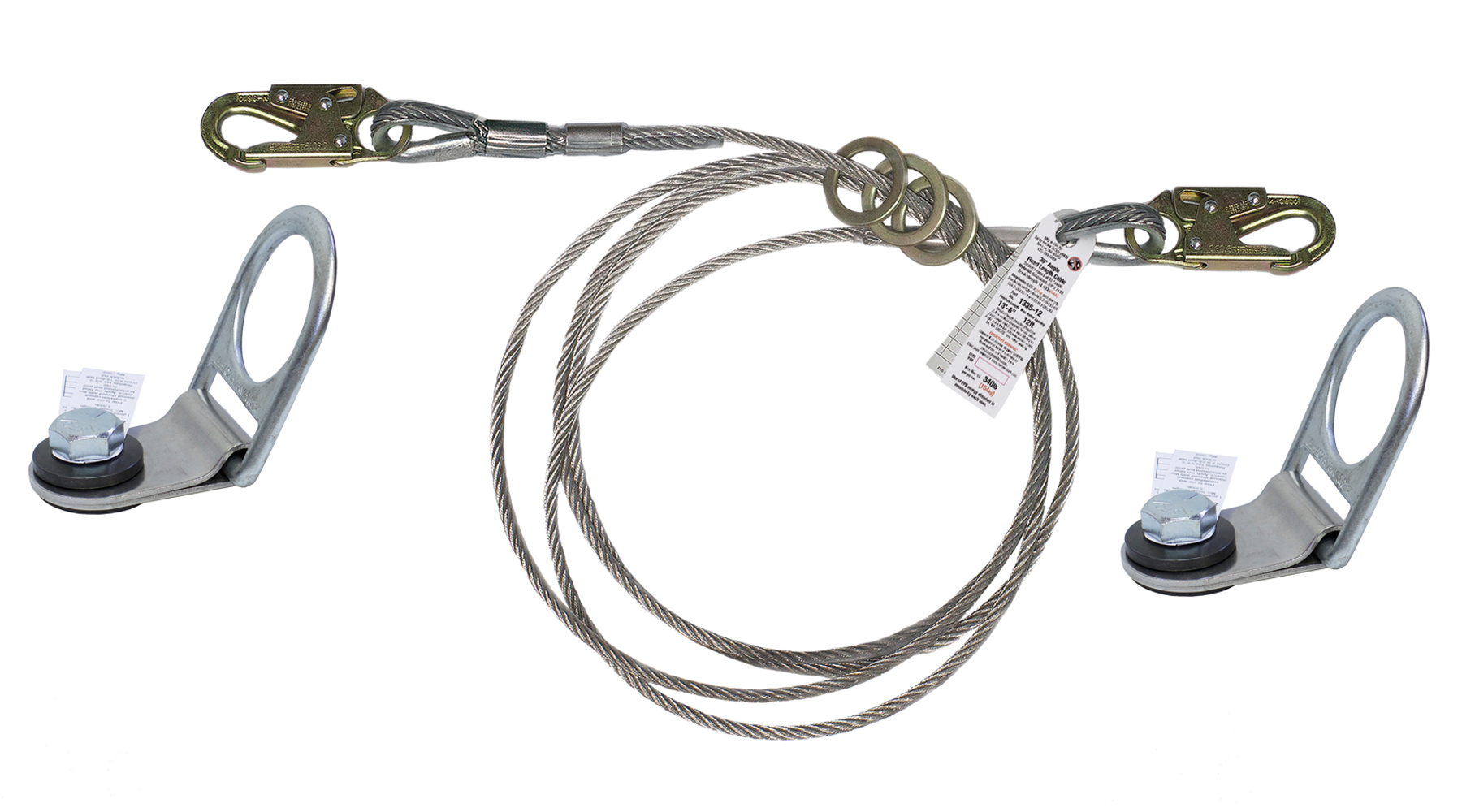

Swivel-D Anchor – Horizontal Lifeline
The Swivel-D Anchors may be used in a horizontal lifeline application for 2 persons in fall arrest or 3 in fall restraint. Super Anchor Safety manufactures and supplies 30-degree anchor fixed length cables in 10’/12’/14’/16’/18’20’ lengths (the cable finished length is longer to achieve the desired 30’ angle). Simply install the anchor at the designated on-center widths as brought out in the Swivel-D Instruction/Specification Manual. Also, consult the SAS 2018 HLL 30-Degree Manual for more specifics and details on the premade horizontal lifeline. The Swivel-D must be bolted to the structure (no HLL allowed with lag screws) with the maximum width between the anchors of 20’.
There are numerous applications in which you can use these lifelines with different anchor points including:
- Swivel-D Anchor for HLL System
- Choose your cable length up to 20’
- 3rd Party Engineered 30-degree Angle HLL System
- Extremely Cost Effective with Replaceable Parts
- Temporary Installation on Flat or Pitched Surfaces
- 2 person Fall Arrest or 3 person Fall Restraint
- Super Heavy Duty 3/8” Galvanized Cable rated for 14,000+ pounds
| Image | Part # | Nominal Length | Finished Length | Description | MSRP | UPC |
|---|---|---|---|---|---|---|
|
1028 | Swivel-D Anchor, Single Package | $59.00 | 786158102802 | ||
|
1335-10 | 10′ | 11′-6″ | 10′ 30-degree cable with snaphooks | $95.00 | 786158133509 |
| 1335-12 | 12′ | 13′-6″ | 12′ 30-degree cable with snaphooks | $100.00 | 786158133516 | |
| 1335-14 | 14′ | 16″ | 14′ 30-degree cable with snaphooks | $105.00 | 786158133523 | |
| 1335-16 | 16′ | 18′-4″ | 16′ 30-degree cable with snaphooks | $110.00 | 786158133530 | |
| 1335-18 | 18′ | 20′-6″ | 18′ 30-degree cable with snaphooks | $115.00 | 786158133547 | |
| 1335-20 | 20′ | 23′ | 20′ 30-degree cable with snaphooks | $120.00 | 786158133554 |
