CRA/CRO Rigging Hardware Coupler Devices
The CRA/CRO Couplers connect components in the horizontal lifelines for a complete system. We have 6 different devices to choose from based on your needs. Couplers are all made from heavy gauge 304 or 316 stainless steel and are supplied with stainless steel bolts to attach the components together. Designed primarily for SAS engineered HLL systems to link turnbuckles, energy absorbers and 3/8” wire rope eye thimble terminations. Designed specifically for use with SAS commercial anchors, these components can be used with other mfg. equipment when engineered by a qualified person.
We also offer numerous parts to achieve a HLL system that works for your products including:
- Rigging Kits: our standard turnbuckle/clamps/thimbles/sliders/energy absorber for lifeline lengths up to 120’. They include everything you need for a complete installation except for the cable. Available in galvanized or stainless-steel finishes. See part numbers 1050-G and 1051-S.
- Energy Absorber: a specialized in-line energy absorber
- Turnbuckles: used in the horizontal lifeline system to adjust wire rope length and tension. Available in galvanized or stainless-steel finishes. Use 1 turnbuckle in systems up to 60’ and 2 turnbuckles in systems 60’ – 120’.
- Cable: galvanized 3/8” cable rated for 14,000 pounds. Stainless Steel rated for 12’000 pounds. Use in runs up to 120’ and in conjunction with the rigging kits.
- Cable Clamps: used to terminate the end of the cable lifelines and available in galvanized and stainless-steel finishes.
- Cable Thimble: used to terminate the end of our cable systems and are required on both ends of the HLL. Available in galvanized or stainless-steel finishes.
- SAS Coupler Adapter: used to link turnbuckles, energy absorbers and CRA together
- Connector “O” Rings: permanently attached to the HLL and used to connect your personal protective equipment to slide through pass-thru top CRA’s.
- Pass-Thru Converter: a device that converts Pass-Thru Top CRA’s into a Loop Top to connect your PPE to for a fall arrest rating
- Label Packages: comprehensive warning, instruction and inspection label packages for all rigging equipment and hardware
Please refer to all applicable Instruction/Specification Manuals for further detailed information on rigging, attachment and use.
Image | Part # | Description | UPC |
---|---|---|---|
CRA HLL Couplers | |||
1081-S | HLL Coupler. Connects to 1-3/8″ CRA Loop Tops & 4-Way Tops to Wire Rope eye Thimbles. 2 mounting hole model. Comes with SST hardware (1 ea. 5/8″x 2.0″ and 1 ea. 5/8″x2-1/4″). 11-gauge 304 SST. | 786158108101 | |
1087-SC | HLL Coupler to attach 1065-AS Spring Absorber to Turnbuckles or Wire Rope eye Thimbles. 2 mounting hole model. Comes with SST hardware (1 ea. 5/8″x2.0″ and 1 ea. 3/8″x1.0″). 11 gauge 304 sst. | 786158108736 | |
CRO HLL Couplers | |||
1086-S | HLL Coupler to attach 2.0″ CRA Loop tops to Wire Rope eye Thimbles and Turnbuckles. 3 mounting hole model. Comes with SST hardware (1 ea. 7/16″x2.0″, 1 ea. 5/8″x2-1/4″, 1 ea. 5/8″x3.0″). 11-gauge SST | 786158108613 | |
|
1086-SA | HLL Coupler to attach 2.0” Loop Tops to 1065-AS Spring Absorber. Comes with SST Hardware. 11-gauge SST | 786158108620 |
Special Application HLL Couplers | |||

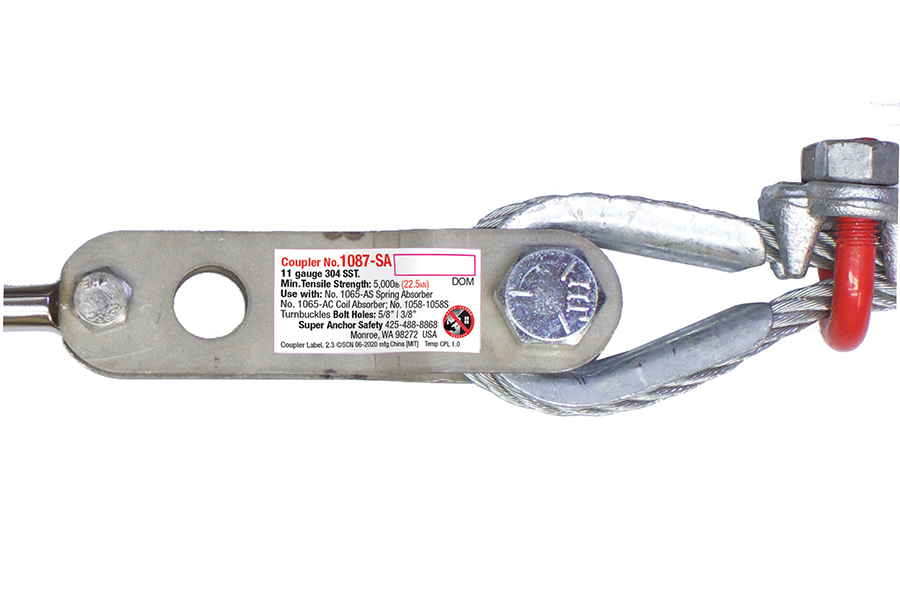

1087-SA | HLL Coupler to attach 1065-AS and 1065-AC absorbers to Turnbuckles or Wire Rope eye Thimbles. 3 mounting hole model. Comes with SST hardware (1 ea. 5/8″x2.0″, 1 ea. 5/8″x1.0, 1 ea. 3/8″x1.0″). 11 gauge 304 sst. | 786158108620 | |
1087-SB | HLL Coupler. Connects to 1-3/8″ CRA Loop Tops & 4-Way Tops to 1065-AS and 1065-AC absorbers. Dual purpse with 3 mounting hole model. Comes with SST hardware (1 ea. 5/8″x 2.0″ and 1 ea. 5/8″x2-1/4″). 11-gauge 304 SST. | 786158108729 | |
CRA HLL Rigging Components | |||
1055 | 3/8″ Galvanized Cable sold per ft. Cut to Length | 786158105506 | |
1055-S | 3/8″ Stainless Steel Cable sold per ft. Cut to Length | 786158105575 | |
1065-AS | Spring Energy Absorber – 304 Stainless Steel | 786158106527 | |
1065-AC | Coil Energy Absorber – 304sst option only | 786158106510 | |
1052-G | Factory Supplied HLL Swage – Galvanized. Includes: 1ea eye thimble, 2 Aluminum Swages & PVC cover | 786158105216 | |
1052-S | Factory Supplied HLL Swage – Stainless Steel. Includes: 1ea eye thimble, 2 Aluminum Swages & PVC cover | 786158105223 | |
5010-SM | HLL Connector O-Ring (4ea required for the complete HLL kit, #1051-S) | 786158501018 | |
1058 | 3/4″ x 12″ Turnbuckle – Galvanized w/2ea 5/8″ x 3″ 18-8 SST Bolts and Lock Nuts (2ea required for the complete HLL kit, #1050-G) | 786158105803 | |
1058-S | 3/4″ x 6″ Turnbuckle – Stainless Steel w/2ea 5/8″ x 3″ 18-8 SST Bolts and Lock Nuts (2ea required for the complete HLL kit, #1051-S) | 786158105810 | |
1057 | 3/8″ Galvanized Rope Eye Thimble (2ea required for the complete HLL kit, #1050-G) | 786158105704 | |
1057-ST | 3/8″ Stainless Steel Rope Eye Thimble (2ea required for the complete HLL kit, #1051-S) | 786158105711 | |
1056 | 3/8″Cable Clamp (6ea required for the complete HLL kit, #1050-G) | 786158105605 | |
1056-S | 3/8″ Stainless Steel Cable Clamps (6ea required for the complete HLL kit, #1051-S) | 786158105629 |
Part # – 1086-SA
Description: HLL Coupler to attach 2.0” Loop Tops to 1065-AS Spring Absorber. Comes with SST Hardware. 11-gauge SST
UPC: 786158108620
