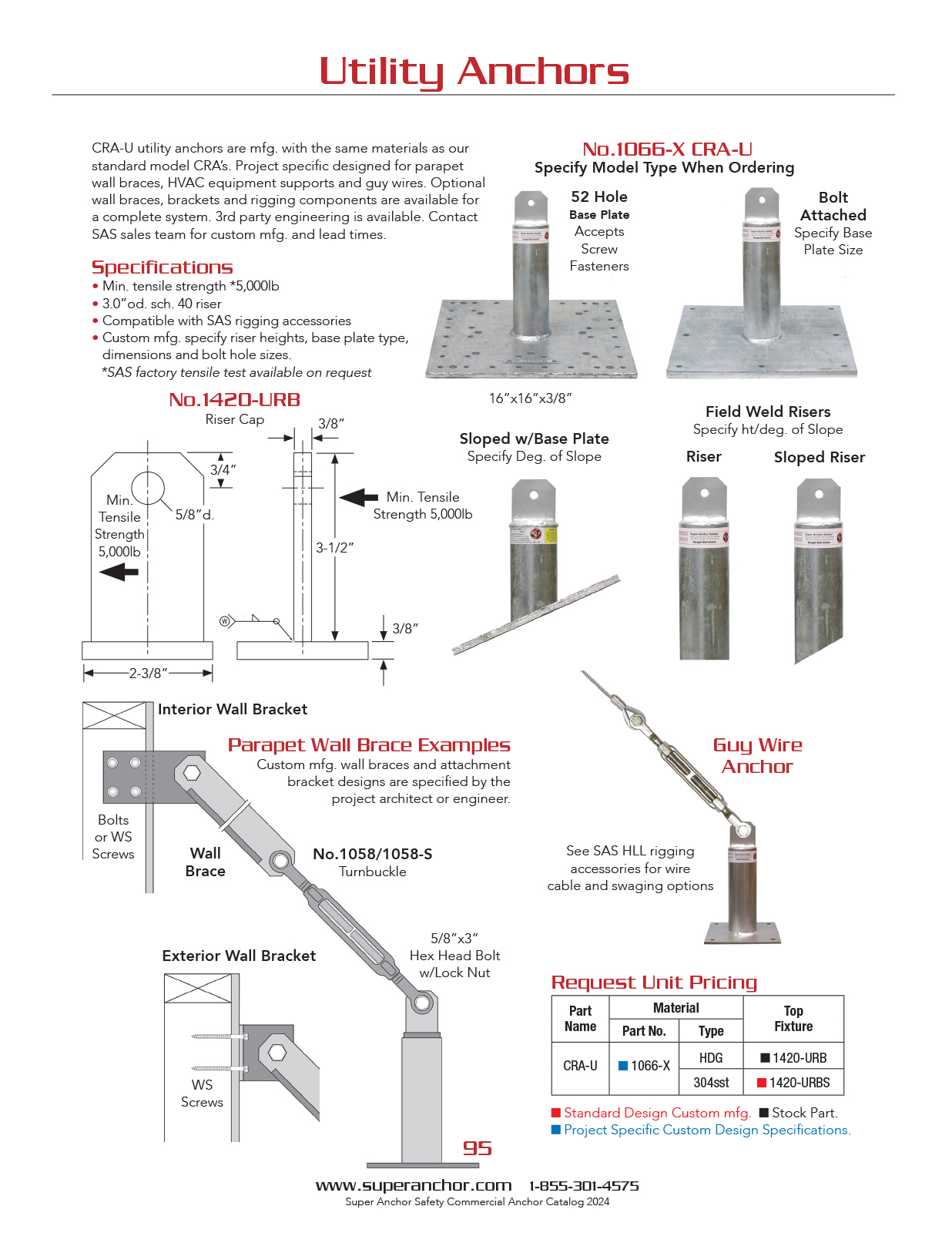

CRA Utility/Parapet/Wall Brace Anchors
CRA-U utility anchors are mfg. with the same materials as our standard model CRA’s. Project specific designed for parapet wall braces, HVAC equipment supports and guy wires. Optional wall braces, brackets and rigging components are available for a complete system. 3rd party engineering is available. Contact SAS sales team for custom mfg. and lead times.
Send us your design and we can quote you an anchorage point that meets your needs.
You can choose:
- Base Plate Dimensions to your Specifications
- Base Plate Mounting for Wood, Steel, Concrete or Metal Decking
- Riser Top Studs, Loop Tops, Bolt, etc.
- Riser Heights up to 36”
- Choice of HDG, 304 SST or 316 SST
- 3” Riser is Easily Flashed into the Roofing System
These are not rated for fall protection.
Specifications:
- Min. tensile strength *5,000lb
- 3.0”od. sch. 40 riser
- Compatible with SAS rigging accessories
- Custom mfg. specify riser heights, base plate type, dimensions and bolt hole sizes.
*SAS factory tensile test available on request
