Open Web Steel Truss/Joist Anchor
Open Web Steel Truss/Joist Anchor

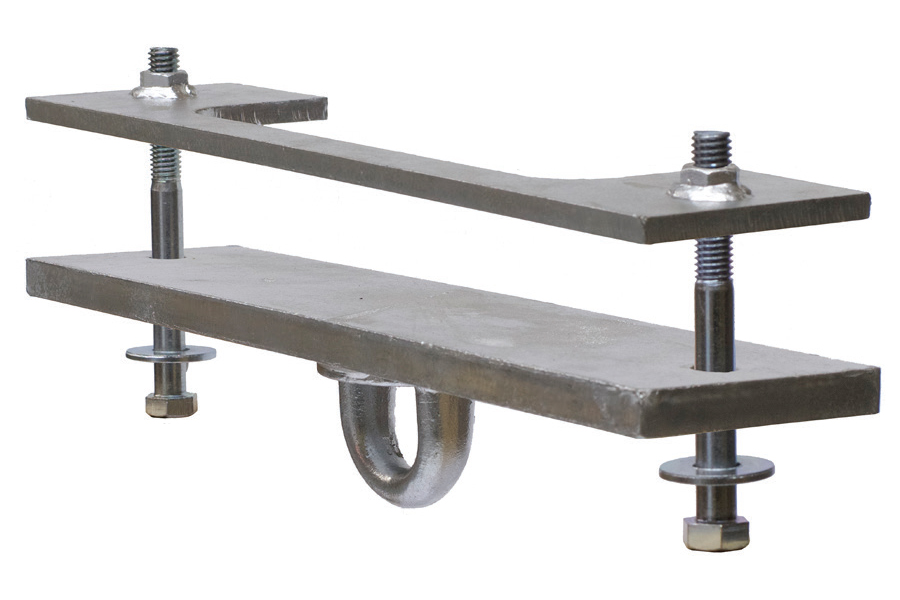

CRWT anchor is designed for attachment to several standard size open web steel trusses. Easily attaches with 2 bolts. Use for single person anchor point or HLL system. Ideal for overhead SRL tie-off.
Specifications:
- Min.5,000lb tensile strength
- No.1090 w/1-3/8” id. loop top
- HDG or 304sst
- 3rd party engineering by DH Glabe & Assoc.
Report available upon request. - Contact SAS sales team for custom mfg.
and lead times.
Compliance:
ANSI Z359.18-17 Type A/T
OSHA 1926.502

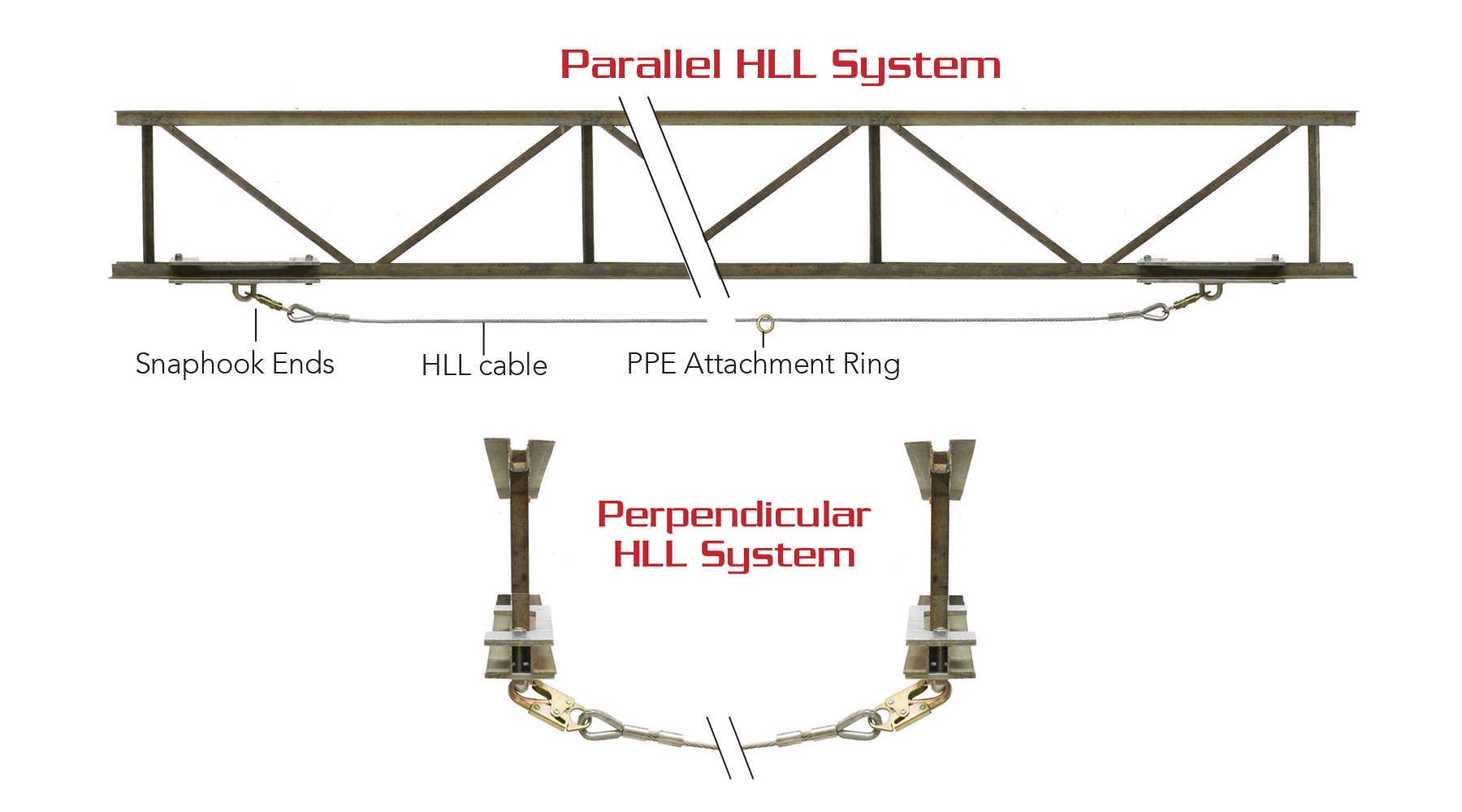

HLL Lifeline System:
ANSI Z359.18-17 Type A/T
OSHA 1926.502
HLL cables sold separately
Fixed Length:
- No.1336 5° angle
- No.1335 30° angle
Custom Length:
- Custom Wire Rope Lanyard worksheet

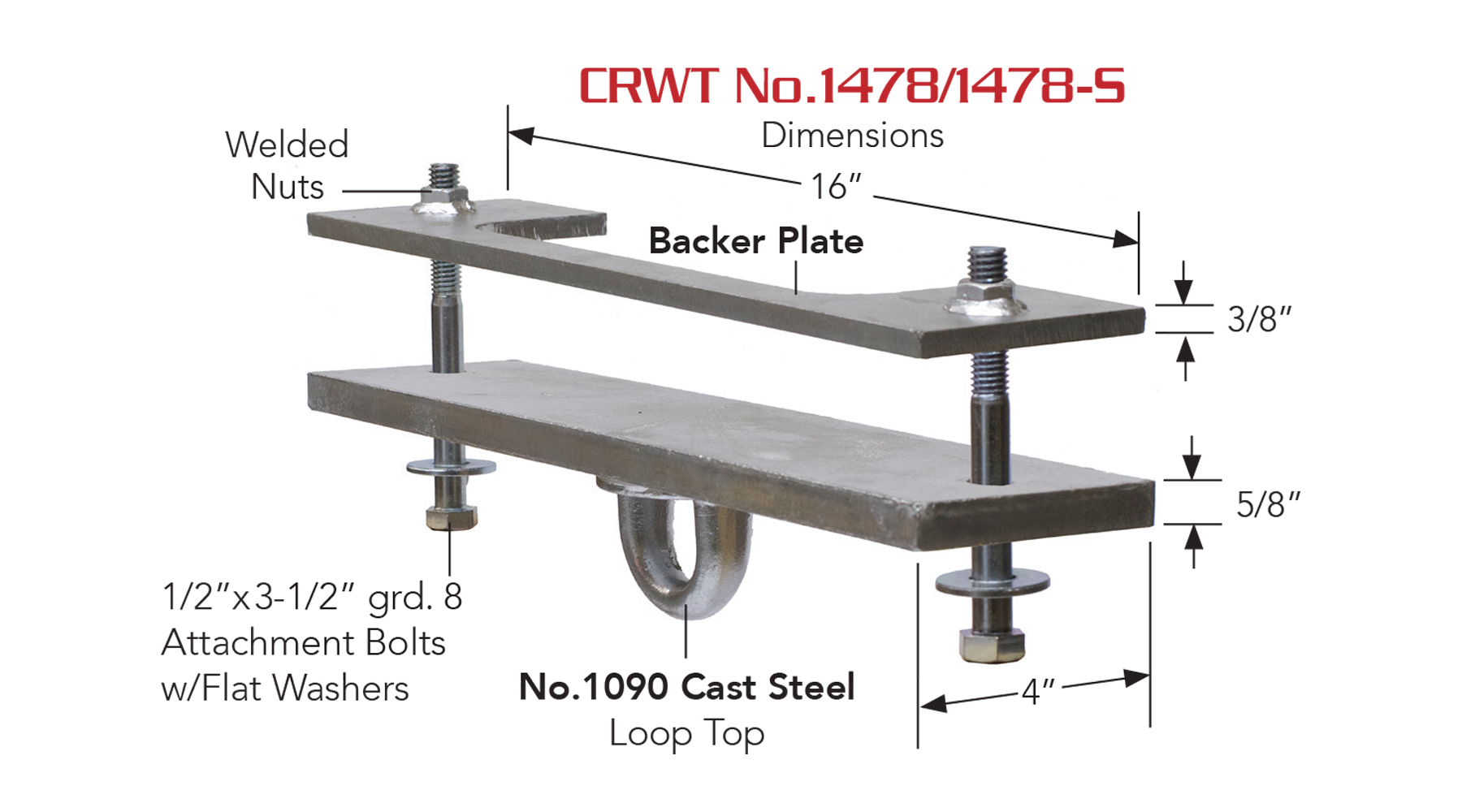

Name/Part #: ■ CRWT – 1478
Material Type: HDG
Loop Top No.: 1090
Loop Top Type: Q235
Anchor Weight/lbs: 17
UPC: 786158147858
Name/Part #: ■ CRWT – 1478-2
Material Type: HDG
Loop Top No.: 1093
Loop Top Type: Q235
Anchor Weight/lbs: 18
UPC: 786158147827
Name/Part #: ■ CRWT – 1478-S
Material Type: 304sst
Loop Top No.: 1090-S
Loop Top Type: 316sst
Anchor Weight/lbs: 17
UPC: 786158147865
Name/Part #: ■ 1478-X
UPC: 786158147841

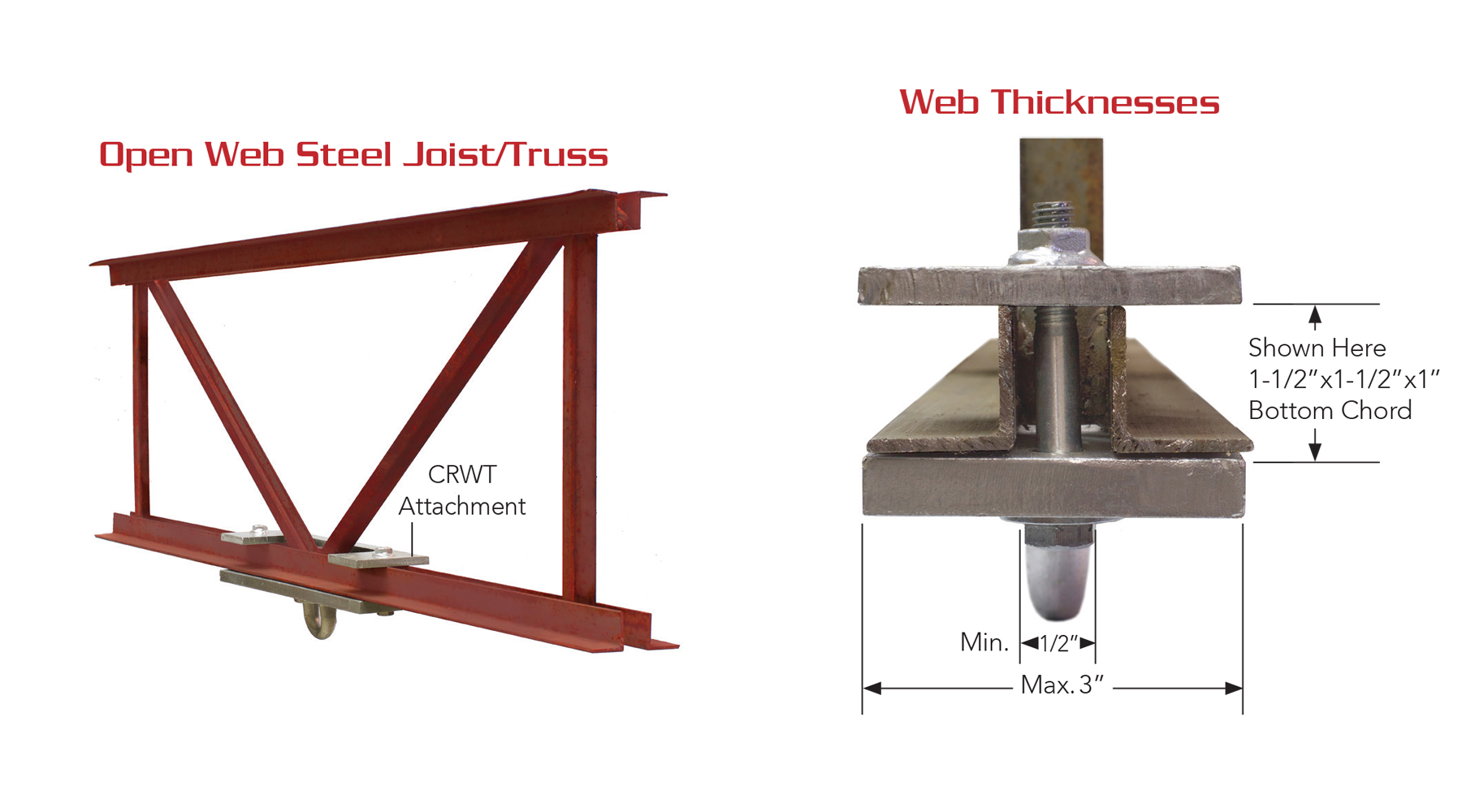

■ Standard Design Custom mfg. Stock Part | ■ Truss dimensions, loop top and pass-thru top orientation for HLL system.
