ARS – Metal Roofing

The Super Anchor EPDM Metal Roof Flashing base was specifically designed to flash the ARS Series of anchors on standing seam and corrugated metal roofing. The Flashing system consists of a medium gray EPDM Base Flashing with aluminum reinforced edge, a gray stem cover and a tether strap.

Flashing size is 8”x8” with a 3” stem height. The flashing has ribs on the bottom to accept butyl type sealant. Fasteners are not included to attach the flashing to the roof. The flashing conforms easily to the different roof profiles assuring a nice weather tight fit. Use in conjunction with stem cover #2007G.

  • Compatible with all ARS Series Anchors
  • 100% Waterproof Flashing System
  • Works on all Metal Roof Systems
  • Can be Painted to match Roof Color (latex paint only)
ImagePart #DescriptionUPC

Download

1006ARS 2×8 Anchor. 14 gauge 430 SST w/ 6.5″ Stem Height. Choose Flashing786158100600

Download

1006DASR 2×8 Anchor. 11 gauge Steel Dacromet Coating w/ 6.5″ Stem Height. Choose Flashing786158100617

Download

2805ARS 2×8 Anchor. 11 gauge 430 SST w/ 6.5″ Stem Height. Choose Flashing786158280500

Download

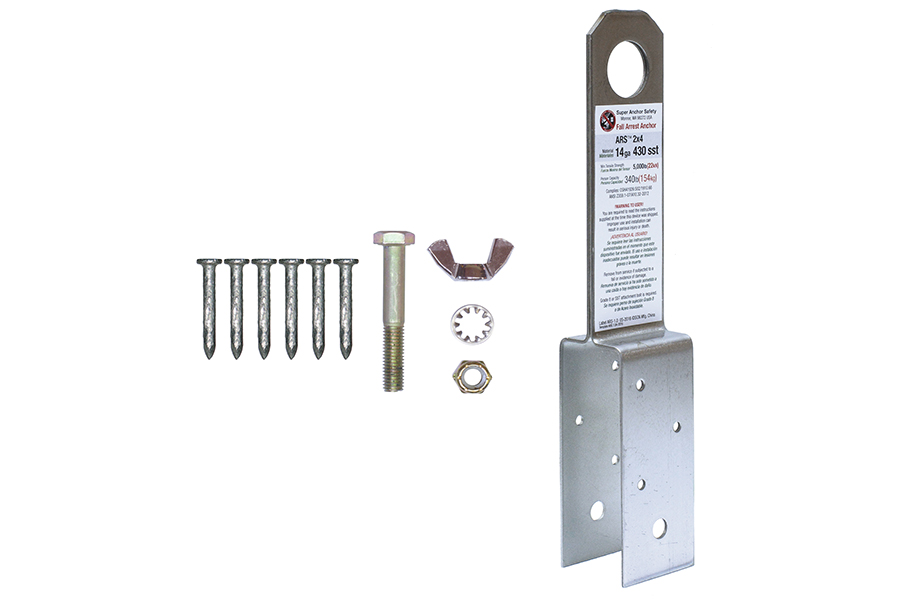

1022ARS 2×4 Anchor. 14 gauge 430 SST w/6.5″ Stem Height. Choose Flashing786158102208

Download

1023ARS 2×4 Anchor. 11 gauge 430 SST w/ 6.5″ Stem Height. Choose Flashing786158102307

Download

2821ARS Tile Roof Anchor. 14 gauge 430 SST w/ 8″ Stem Height. Choose Flashing.786158282108

Download

1069ARS Tile Roof Anchor. 11 gauge 430 SST w/ 8″ Stem Height. Choose Flashing.786158106909
Choose Your Flashing Kit or Accessories

Download

2810Metal Roof Flashing Kit EPDM Flashing, Stem Cover, Tether Strap786158281002

Download

2018Metal Roof Flashing EPDM single package786158201802

Download

2007ARS Series Stem Cover. Black. Bulk Packaged.786158200706

Download

2007GARS Series Stem Cover. Grey. Bulk Packaged.786158200775

Download

2007TARS Series Stem Cover. Terra Cotta. Bulk Package.786158200782
ARS-Techos metálicos:

La base cubre juntas tipo EPDM para techos metálicos de Super Anchor, fue diseñada específicamente para instalar las anclas de la serie ARS sobre techos metálicos del tipo costura vertical o corrugado. Los sistemas de base cubre juntas están conformados por una base de EPDM con aluminio reforzado en los bordes, un cubre vástago gris y una correa de sujeción.

El tamaño de los cubre juntas es de 8”x8” con vástagos de 3” de alto. Las cubre juntas tienen pliegues sobre la base que aceptan tiras sellantes de butilo. No se incluyen los sujetadores para asegurar el cubre juntas al techo. Los cubre juntas se amoldan fácilmente a los distintos perfiles de los techos, asegurando un ajuste hermético contra los efectos del clima. Usarlos junto con las tapas para vástagos #2007G.

  • Compatible con toda la serie de anclas ARS
  • Sistema de cubrejuntas 100% impermeable
  • Sirve para todo tipo de techos metálicos
  • Pueden ser pintados para que coincida con el color del techo (solamente pintura de latex)
Technical Specifications
DevicePermanent truss anchor for 1 person fall protection
Fall Protection RatingFall Arrest and Fall Restraint
Structure Attachment2×4 – 2×12 trusses/rafters
Minimum Breaking5,000 pounds
Minimum Tensilee5,000 pounds
Material11 or 14-gauge 430 stainless steel or Dacromet coated mild steel
FlashingEPDM Flashing Base with vulcanized Aluminum Strip
Stem CoverInjection Molded Plastic
Temperature Rating-30 degrees Fahrenheit up to 120 degrees Fahrenheit
Maximum User Weight340 pounds including tools and equipment
Hardware5/16″-18 x 2-1/4″ Grade 8 bolt with locknut
OSHA Standard1926:502 and 1910.66
ANSI StandardZ359.1-07 and A10.32-2012
CSA StandardZ259.11-05 for applicable products
