ARS – Asphalt Shingle & Wood Shake

The industry standard in permanent anchorage devices, the ARS Series anchor has been providing fall protection for the residential and commercial building industry for over 25 years. They are typically installed during the framing stage and then they are flashed into the roofing material as a permanent fixture for the structure. They provide a fall protection tie off point for all tradesmen and maintenance workers.

This anchor is available in 2 models – the ARS 2×4 and ARS 2×8. The ARS 2×4 is designed for 2×4 trusses and installs with the grade 8 bolt and teko nails. No additional blocking is necessary, and the anchor is less expensive than our ARS 2×8 strictly based on less material being used in manufacturing. The ARS 2×8 is designed for 2×4, 2×6 and 2×8 trusses and has a corresponding attachment hole to accommodate the truss. Both the ARS 2×4 and 2×8 can be used on 2×10 and 2×12 trusses/rafters using the drill-through attachment method. These anchors are supplied with a PVC flashing base for use on all asphalt shingle and wood shake roofs. The anchor is made from stainless steel and includes mounting hardware.

  • Fully Engineered Fall Arrest Anchor
  • 100% Waterproof with Dual Flashing System
  • Factory Supplied Attachment Hardware
  • Ideal for Most Types of Roofing Material
  • Can be used by all Tradesmen
  • Permanent – Stays for Life of Structure
ImagePart #Description for ARS 2×8 Series AnchorsUPC

Download

2801ARS 2×8 Anchor Kit. Single Retail Package. 14 gauge 430 SST786158280104

Download

2801-20ARS 2×8 Anchor Kit. Box of 20 Single Retail Package Anchors Retail. 14 guage 430 SST786158280135

Download

2801DARS 2×8 Anchor Kit. Single Retail Package. 11 guage Steel. Dacromet Coating786158280111

Download

1001ARS 2×8 Anchor Kit. Jobsite 6-Pack. 14 gauge 430 Stainless Steel786158100105

Download

1001AARS 2×8 Anchor Kit. Jobsite 6-Pack. 11 gauge 430 Stainless Steel786158100112

Download

1001DARS 2×8 Anchor Kit. Jobsite 6-Pack. 11 gauge Steel. Dacroment Coating786158100111

Download

1006ARS 2×8 Anchor. Single Retail Package. 14 gauge 430 SST. Choose Flashing786158100600

Download

1006DASR 2×8 Anchor. Single Retail Package. 11 gauge Steel. Dacromet Coating. Choose Flashing786158100617

Download

2805ARS 2×8 Anchor. Single Retail Package. 11 gauge 430 SST. Choose Flashing786158280500
ImagePart #Description for ARS 2×4 Series AnchorsUPC

Download

2830ASR 2×4 Anchor. Single Retail Package. 14 gauge 430 Stainless Steel.786158283006

Download

2830-20ARS 2×4 Anchor Kit. Box of 20 Single Retail Package Anchors Retail. 14 guage 430 SST786158283037

Download

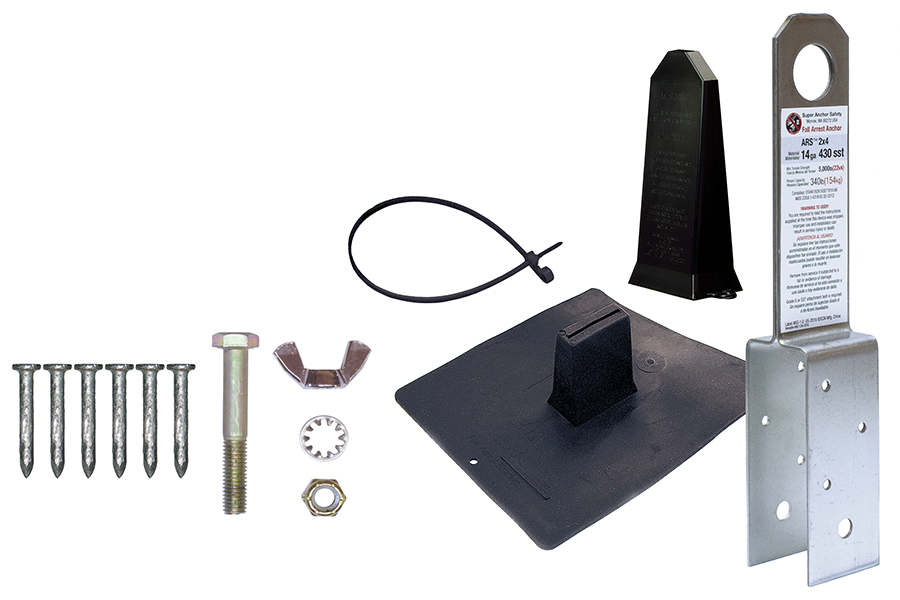

1030ARS 2×4 Anchor Kit. Jobsite 6-Pack. 14 gauge 430 Stainless Steel786158103007

Download

1030AARS 2×4 Anchor Kit. Jobsite 6-Pack. 11 gauge 430 Stainless Steel786158103014

Download

1022ARS 2×4 Anchor. Single Retail Package. 14 gauge 430 SST. Choose Flashing786158102208

Download

1023ARS 2×4 Anchor. Single Retail Package. 11 gauge 430 SST. Choose Flashing786158102307

ARS – Tejas de asfalto & tejas de madera

El estándar en la industria en dispositivos de anclaje permanente, el anclaje de la Serie ARS ha brindado protección contra caídas para la industria de la construcción residencial y comercial durante más de 25 años. Por lo general se instalan durante la fabricación de la estructura de un edificio y luego se cubren al ras con el material del techado quedando como un accesorio permanente del edificio. Proveen un punto de amarre para la protección para caídas de los integrantes de cuadrillas de todo tipo de industria o para el personal de mantenimiento.

Estas anclas vienen provistas de una base tapajuntas en PVC para ser empleadas en techos con tejas de asfalto o de madera. Las anclas son fabricadas en acero inoxidable e incluyen los accesorios necesarios para su montaje.

  • Diseñadas para la detención de caídas
  • 100% a prueba de agua, con sistema doble de tapajuntas
  • Accesorios para montaje suministrados de fabrica
  • Ideales para casi todo tipo de materiales para techado
  • Puede ser empleada por cualquier tipo de industria
  • Permanente – Se deja de por vida en la estructura
Technical Specifications
DevicePermanent truss anchor for 1 person fall protection
Fall Protection RatingFall Arrest and Fall Restraint
Structure Attachment2×4 – 2×12 trusses/rafters
Minimum Breaking5,000 pounds
Minimum Tensile5,000 pounds
Material11 or 14-gauge 430 stainless steel or Dacromet coated mild steel
FlashingInjection Molded PVC
Stem CoverInjection Molded Plastic
Temperature Rating-30 degres Farenheit up to 120 degrees Farenheit
Maximum User Weight340 pounds including tools and equipment
Hardware5/16″-18 x 2-1/4″ Grade 8 bolt with locknut
OSHA Standard1926:502 and 1910.66
ANSI StandardZ359.1-07 and A10.32-2012
CSA StandardZ259.11-05 for applicable products

Product Manuals
Tie Off Strap AnchorEnglishARS Manual 2018 CompleteDownload PDF
