MAX-V Fall Protection Kit – Carry Bag:

Our updated entry-level fall protection safety kit MAX-V is brimming with features all packed in a rugged nylon carry bag instead of a bucket. The easiest and least expensive way to achieve OSHA compliance and not sacrifice comfort or safety. This kit includes the Maxima 5/8” diameter 3-strand vertical lifeline, Value harness universal size with 5-points of adjustment in our Hi-vizH webbing, Max Force energy absorber with Snaphook and integral adjuster mechanical rope grab, Hinge-2 reusable and fully adjustable roof anchor with fasteners, instruction manual, and a nylon carry bag with all contents packed inside. A complete fall arrest kit.

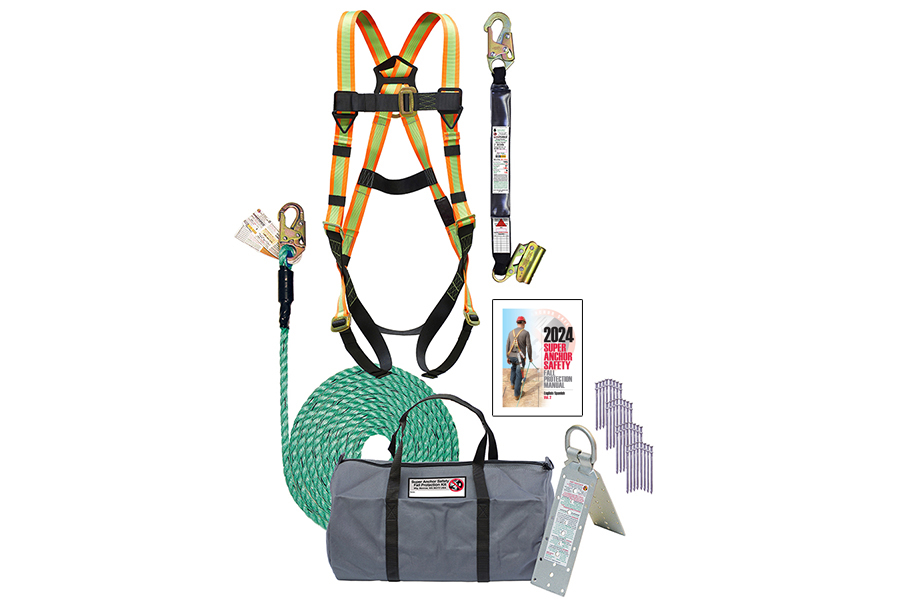

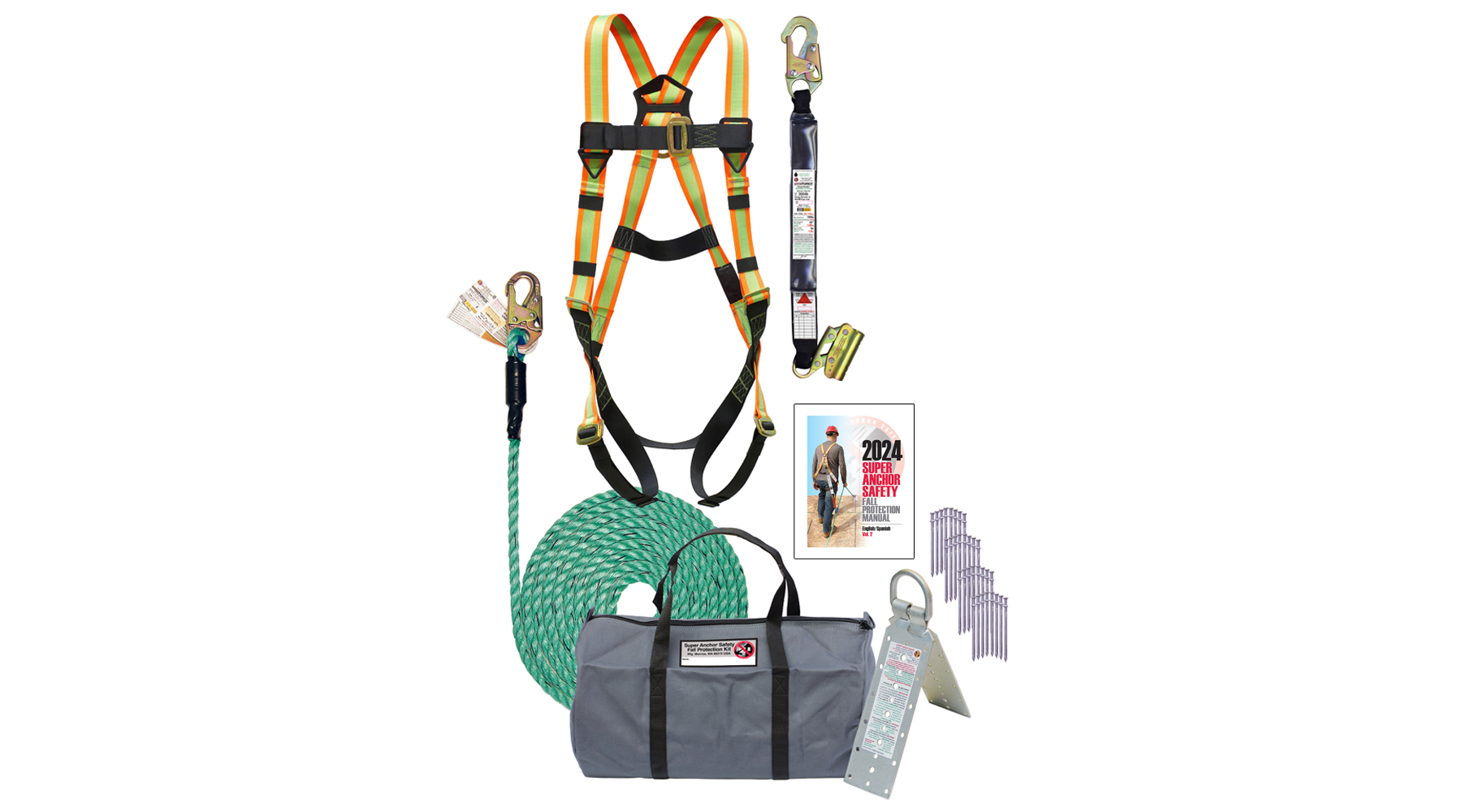

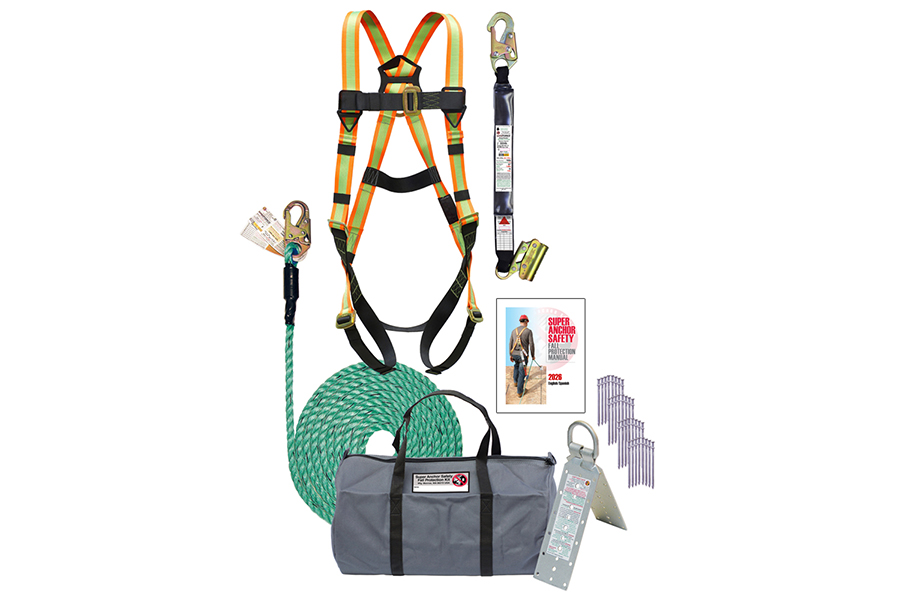

MAX-V #3200 Fall Protection System Contents:

  • Maxima Vertical Lifeline, 5/8” diameter, 3-strand with swaged ANSI-Z359 3,600lb. Gate Strength Snaphook -50’-#4083-50 & 30’-#4083-30
  • Value Harness, Hi-VizH Webbing, Universal Size, 5-Point Full Body Harness – #6069
  • MAX Force Energy Absorber with Factory Attached ANSI-Z359 3600lb. gate strength Snaphook & Integral Adjuster Dual Cam Mechanical Rope Grab – #3004
  • Hinge-2 Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
  • Nylon Carry Bag Gray with Write-on Personalizable Name Plate, 10″ Diameter X 18″ Length -#6003
  • Retail Packaged in a Box
  • 20 Page Instruction Manual English/Spanish – #3011
  • Complies with OSHA and ANSI Standards
Image Part # Description UPC

Download JPG

3200-A50 MAX-V Fall Protection Kit, 50′ Maxima 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Value Harness Hi-VizH Universal Fit, Hinge-2 Reusable Anchor with 36ea 3″ Duplex 16d Nails, MAX Force Energy Absorber with Snaphook and Integral Adjuster Rope Grab, and Convenient Gray Carry Bag 786158320008
3200-A25 MAX-V Fall Protection Kit, 25′ Maxima 5/8″ diameter 3-Strand Vertical Lifeline with Snaphook, Value Harness Hi-VizH Universal Fit, Hinge-2 Reusable Anchor with 36ea 3″ Duplex 16d Nails, MAX Force Energy Absorber with Snaphook and Integral Adjuster Rope Grab, and Convenient Gray Carry Bag 786158320046
Replacement List

Download JPG

4083-50 50′ Maxima 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook 786158408300
4083-25 25′ Maxima 5/8″ diameter, 3-Strand Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook 786158408324

Download JPG

6069 Value Harness, Hi-VizH Webbing, Universal Size, 5-Point Full Body Harness 786158606904

Download JPG

3004 MAX Force Energy Absorber with Factory Attached ANSI-Z359 3600lb. gate strength Snaphook & Integral Adjuster Dual Cam Mechanical Rope Grab 786158300406

Download JPG

3013-D Hinge-2 Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging. 786158301304

Download JPG

2012-A 3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36. 786158201205

Download JPG

6003 Nylon Carry Bag Gray with Write-on Personalizable Name Plate, 10″ Diameter X 18″ Length 786158600308

Download PDF

3011 2018 Training Guide

    Request more Information about the MAX-V Safety Kits - Bag 3200 Series:
