MAX-X Super Grab Safety Kits – 4075 Series

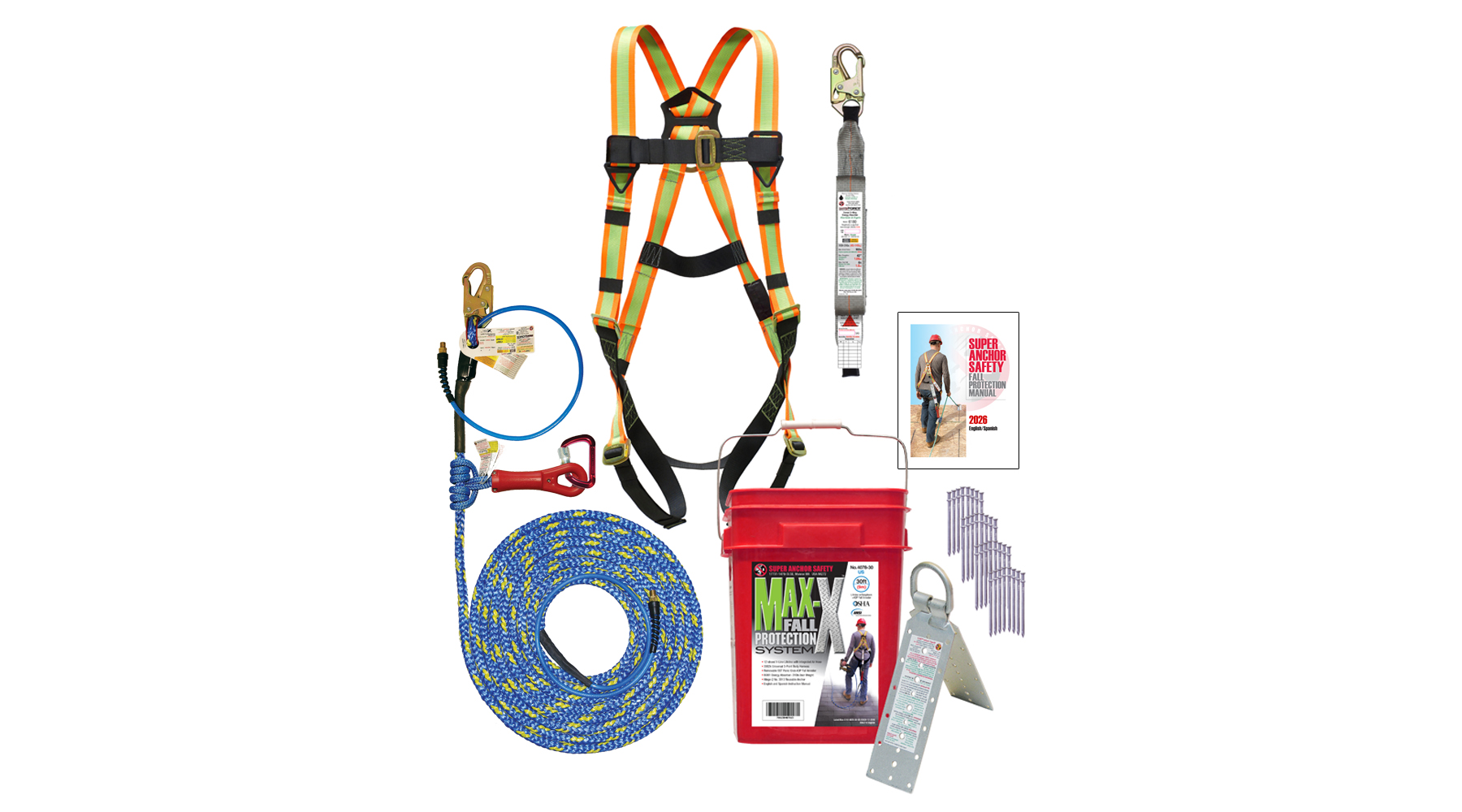

MAX-X X-Line Fall Protection Kit with Super Grab:
The MAX-X kit features our patented X-Line 5/8″ Diameter 12-Strand lifeline with integral pneumatic air line. The two component integration reduces tripping hazards by eliminating the need for a separate air line. Ideal for roofers, framers, siders and other trades that require fall protection and use air driven tools. The rope grab included in this kit is our prussic design SuperGrab. The Super Grab is a non-mechanical rope grab that slides easily up and down the rope and locks up under the slightest amount of tension. It also features a heavy duty ergonomic fall indicator grip that will deform in the event of a free fall thus warning the user of an impact load. Connection between the SuperGrab and MAX Force Energy Absorber with Snaphook and a loop end is achieved using an aluminum twist lock carabiner. The harness included in this kit is the Value harness Hi-VizH webbing, universal size, 5-Point Full Body Harness. We also include the Hinge-2 reusable fully adjustable anchor with fasteners. Finally, we pack all the contents into a convenient storage bucket to create a complete fall protection kit.

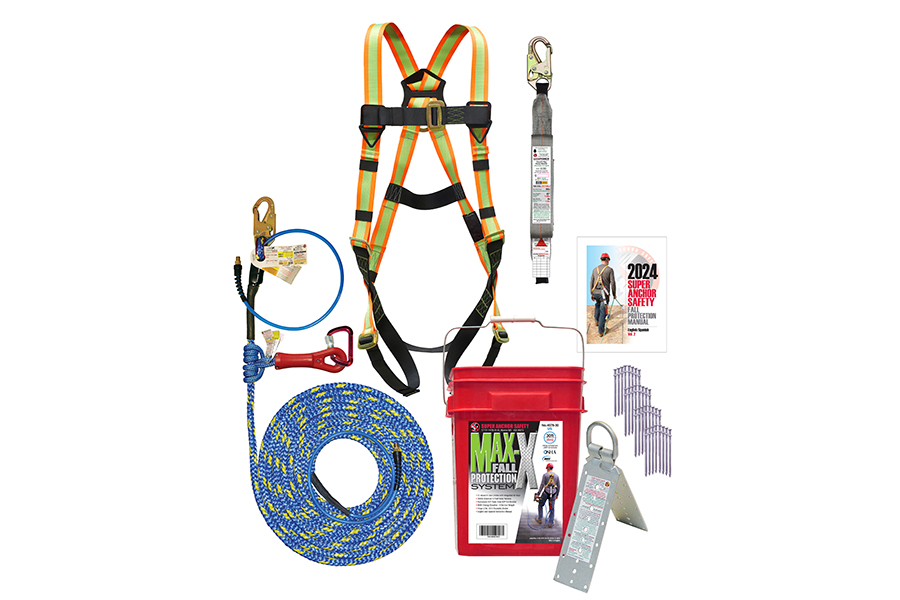

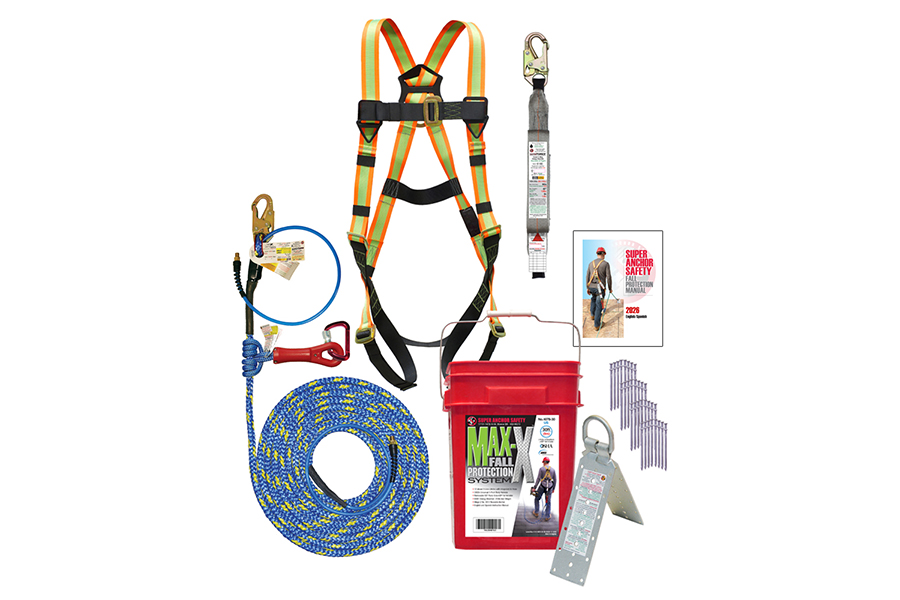

MAX-X #4075 Fall Protection System Contents:
- X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook, Prussic SuperGrab Rope Grab and ANSI-Z359 Aluminum Twist Lock Carabiner – 50’ – #4065-50 & 30’ – #4065-30
- Value Harness, Hi-VizH Webbing, Universal Size, 5-Point Full Body Harness – #6069
- MAX Force Energy Absorber with ANSI-Z359 3600lb. gate strength Snaphook and a Loop End – #6180
- Hinge-2 Reusable Adjustable Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d – #3013-D
- Heavy Duty Red Storage Bucket with Black Lid – #3009
- Value Harness, Hi-VizH Webbing, Universal Size, 5-Point Full Body Harness – #6069
- Complies with OSHA and ANSI Standards
Image | Part # | Description | UPC |
---|---|---|---|
4075-50 | MAX-X Fall Protection Kit 50 ′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with Snaphook with Prussic SuperGrab Rope Grab, Aluminum Twist Lock Carabiner, Value Hi-VizH Harness, MAX Force Energy Absorber with Snaphook and Loop End, Hinge-2 Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Red Storage Bucket | 786158407532 | |
4075-30 | MAX-X Fall Protection Kit, 30′ X-Line 5/8″ Diameter 12-Strand Lifeline with Snaphook with Prussic SuperGrab Rope Grab, Aluminum Twist Lock Carabiner, Value Hi-VizH Harness, MAX Force Energy Absorber with Snaphook and Loop End, Hinge-2 Reusable Anchor with 36ea 3″ Duplex 16d Nails, and Convenient Red Storage Bucket | 786158407525 | |
Replacement Items | |||
4065-50 | 50′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook, Prussic SuperGrab Rope Grab and ANSI-Z359 Aluminum Twist Lock Carabiner | 786158406535 | |
4065-30 | 30′ X-Line 5/8″ Diameter 12-Strand Pneumatic Vertical Lifeline with ANSI-Z359 3,600lb. gate strength Snaphook, Prussic SuperGrab Rope Grab and ANSI-Z359 Aluminum Twist Lock Carabiner | 786158406528 | |
6069 | Value Harness, Hi-VizH Webbing, Universal Size, 5-Point Full Body Harness | 786158606904 | |
6180 | MAX Force Energy Absorber with ANSI-Z359 3600lb. gate strength Snaphook and a Loop End | 786158618006 | |
4015 | SuperGrab with a Heavy Duty Ergonomic Fall Indicator Grip that Deforms when Subjected to a Free Fall, Non-mechanical Rope Grab, Prussic Design that Locks in Any Direction when a Force is Applied | 786158401509 | |
5006-Z | Aluminum Twist Lock Carabiner – ANSI -Z359 3600lb. gate strength | 786158500622 | |
3013-D | Hinge-2 Reusable Adjustable Roof Anchor, 11 Gauge Dacromet Coated Steel with 36ea 3″ Duplex Nails 16d Zinc Coated for 7/32″ Fastener Holes. Dual Fastener Holes 7/32″ and 5/16″ for Installation Fastener Options. Retail Packaging. | 786158301304 | |
2012-A | 3″ Duplex 16d Nail, Yellow Zinc Coated, Retail package of 36. | 786158201215 | |
3011 | 2018 Training Guide |
