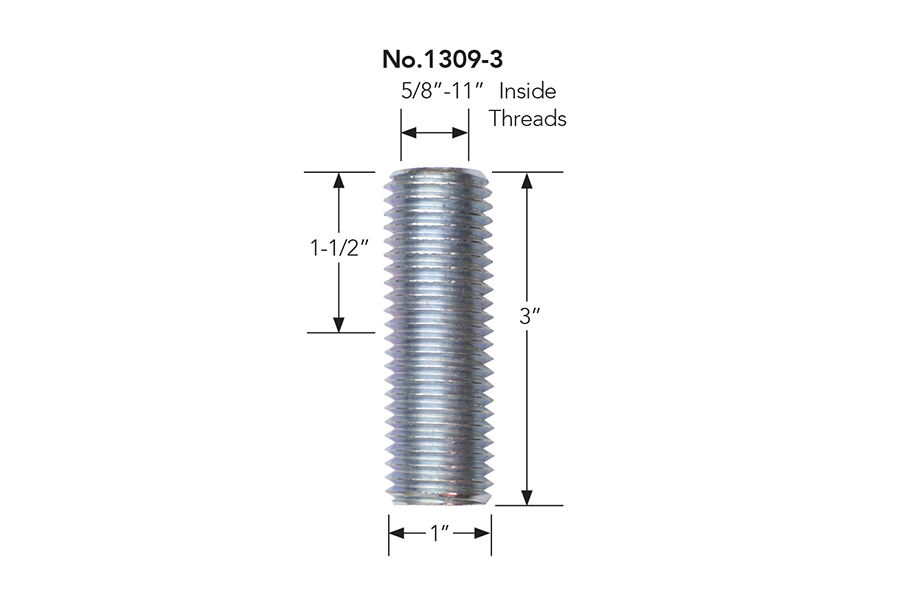

No.1309-3 SSA receiver bolt is specified for concrete substrate installation. Use with SAS compatible anchors as a permanent or removable anchor for single person PPE or HLL system. Not specified for window washing anchors.

Specifications:

• Min. tensile strength 5,000lb
• 1’’grd. 5 threaded rod w/5/8”-11 inside threads
• Zinc plated

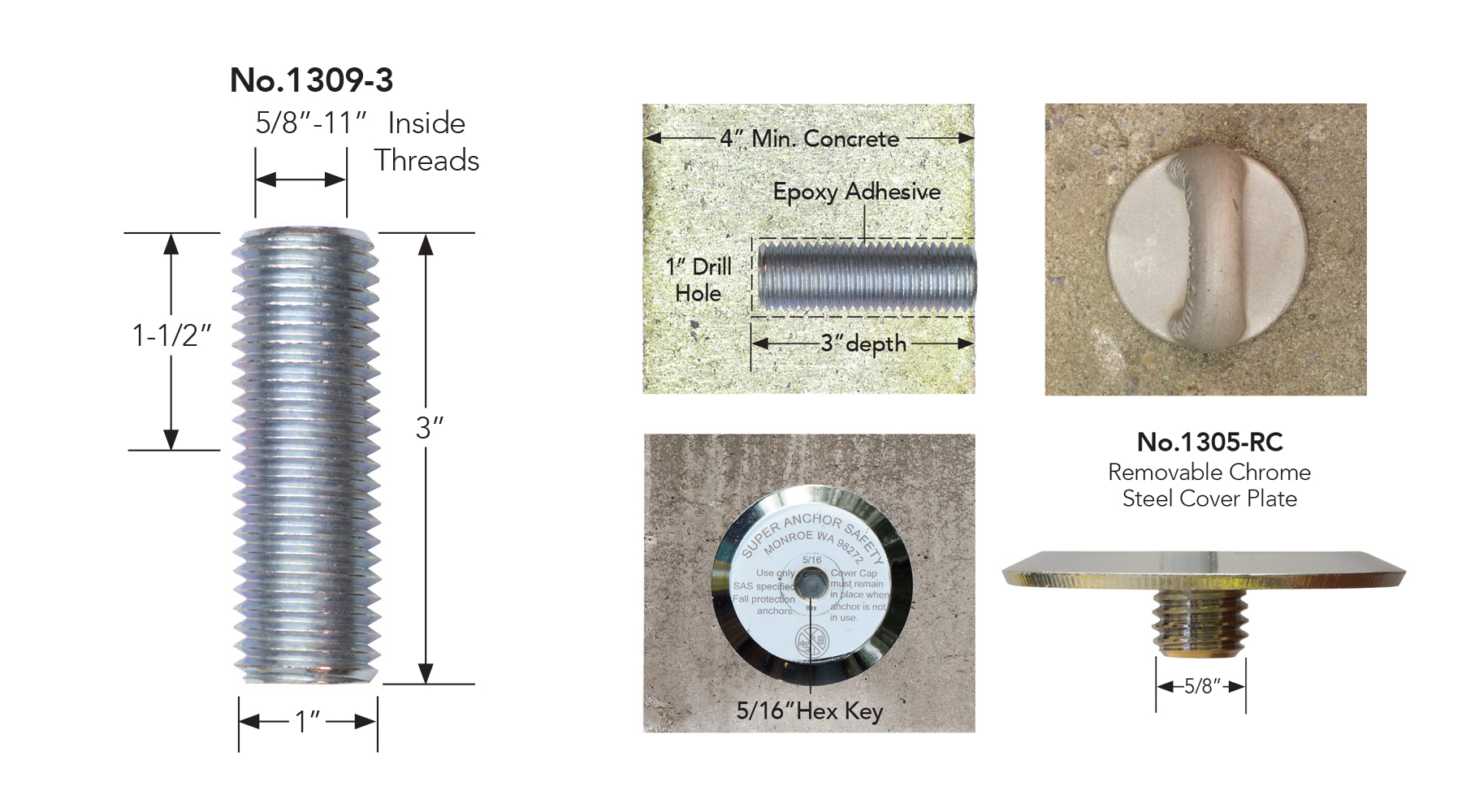

• Concrete drill hole installation w/epoxy adhesive
• 3rd party engineering by DH Glabe & Assoc.
  Report available on request

Compliance:
ANSI Z359.18-17 Type A/T
OSHA 1926.502

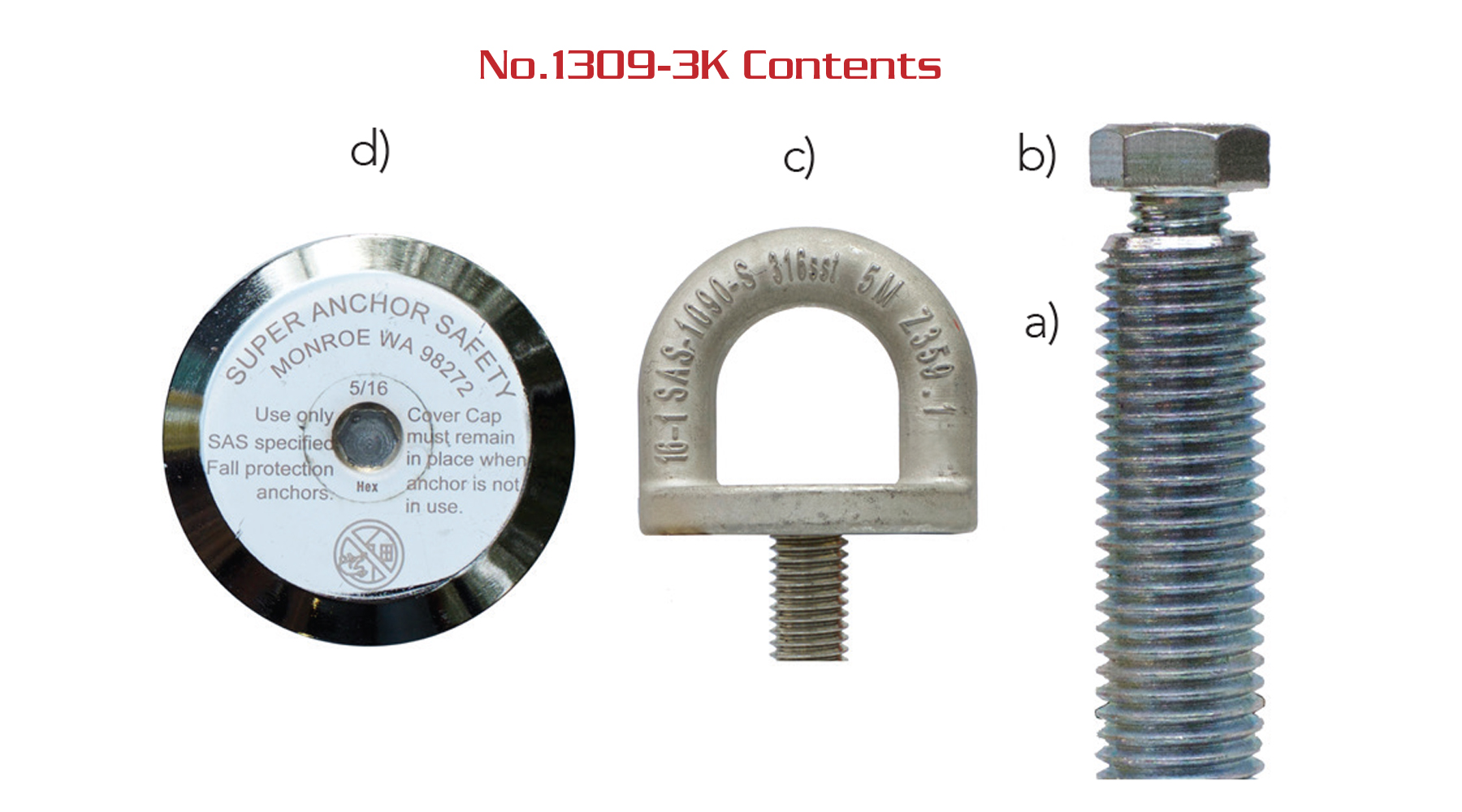

No.1309-3K Kit Contents:

• 1ea 1309-3 receiver bolt
• 1ea 5/8”x 1″ temporary bolt
• 1ea No.1090-SSA loop top anchor
• 1ea No.1305-RC cover plate
