Horizontal Lifelines 5° Angle Fixed Length

20ft 5° Fixed Length Horizontal Lifeline System:

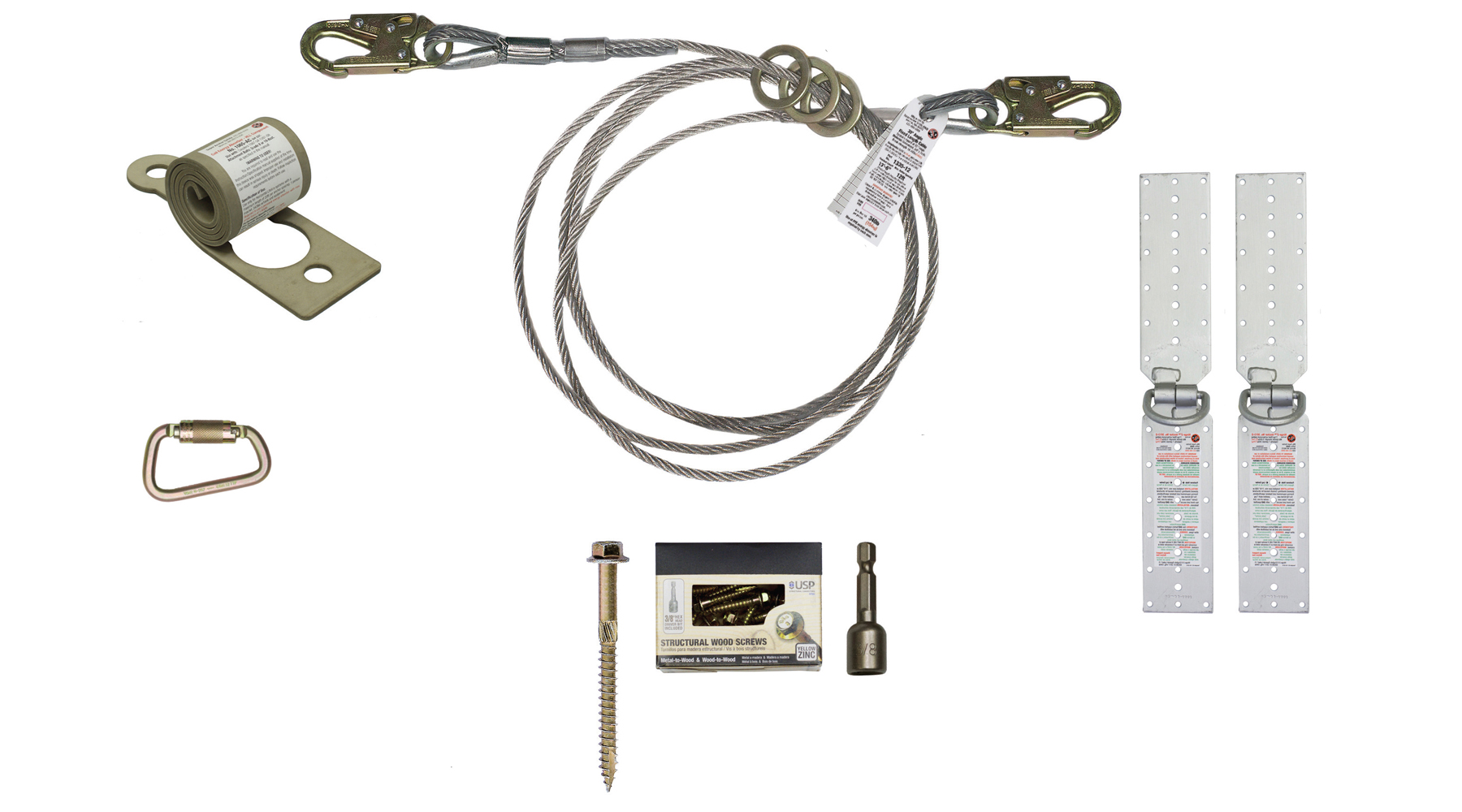

The 5° angle fixed length, pre-engineered Horizontal Lifeline System (HLL) is for use by 3 workers in fall restraint or 2 in fall arrest. This 3rd party engineered horizontal line kit is a cost-effective way to have multiple workers on the roof with room to move freely. A 20’ lifeline will have a 5° total sag angle vs. the 30° sag angle with our model number 1323. This kit includes our coil non-mechanical energy absorber that is specified for use with this HLL System. Super Anchor Safety fixed length horizontal lifelines, when used with our specified anchorage devices provide an engineered system for rafter spacing of 10’ up to 20’. For accurate rigging, each fixed length horizontal lifeline is labeled for the correct rafter spacing.

  • 3rd Party Engineered 5° Angle Horizontal Lifeline System
  • Extremely Cost Effective with Replaceable Parts
  • 2 person Fall Arrest or 3 person Fall Restraint
  • Heavy Duty 3/8” Galvanized Wire rope rated for 14,000+ pounds
  • 10’, 12’, 14’, 16’, 18’ and 20’ HLL Available
  • Coil Non-Mechanical Energy Absorber Required for this system
  • Steel Twist Lock Carabiner for connecting to the Coil Absorber
  • Hinge-2 Reusable Dacromet Coated Anchor for Flat and Pitched Roofs with 36 Count Zinc Coated Duplex Nails 16d (Quantity 2)
  • Reusable 2-1/2” Hex Head Wood Screws with 3/8” Hex Driver, 25 Count
  • All-Pakka Large Heavy Duty Cargo Bag, 24″Lx10″Wx12″H, Black, Included with Model 1321
  • Instruction/Specification Manual
Image Part # Nominal Length Finished Length Description UPC

Download JPG

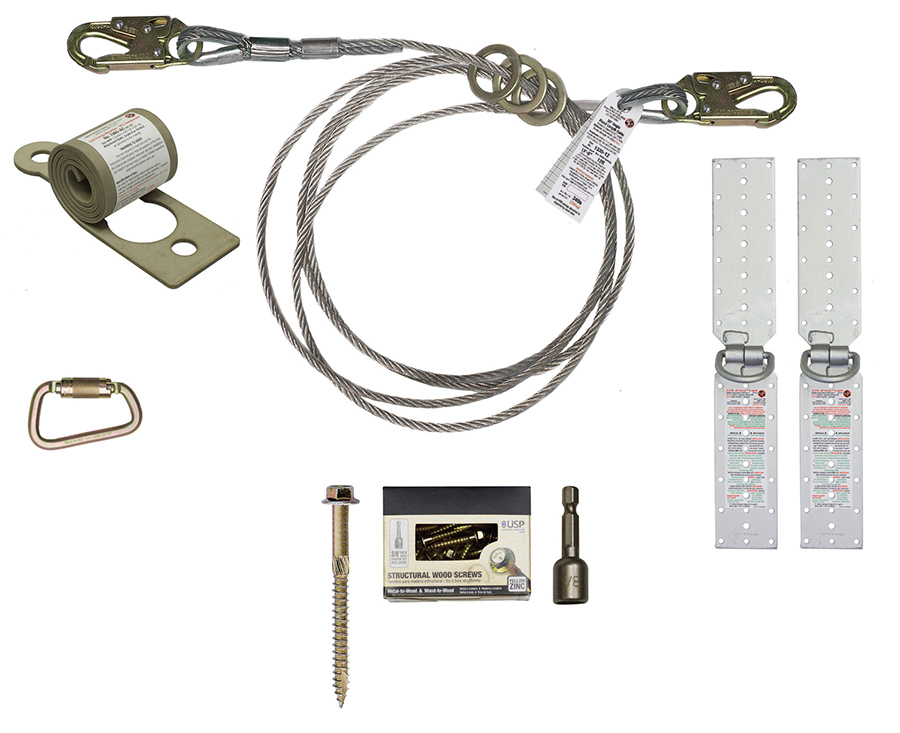

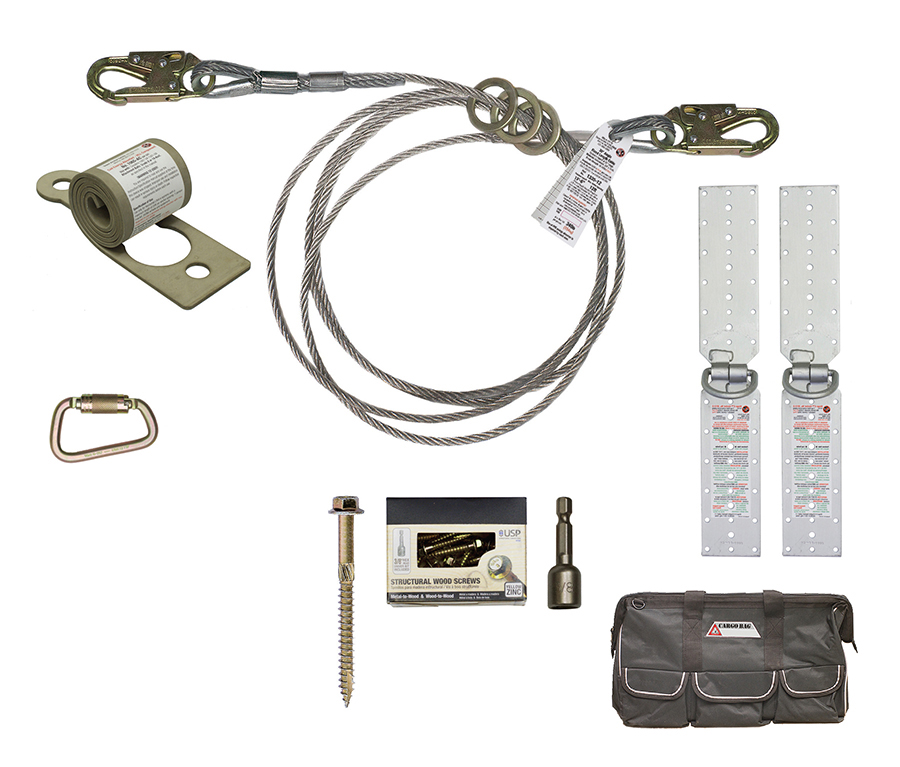

1321 20′ 19′-4″ 20’ 30° Fixed Length Horizontal Lifeline System, HLL 3/8″ x 7 x 19 Galvanized Wire Rope Cable Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings, (2) Hinge-2 Anchors with 36 count Zinc Coated 16d Duplex Nails, 2-1/2” WS Hex Head Wood Screws 25 count, and Large All-Pakka Cargo Bag 786158132106

Download JPG

1322 20′ 19′-4″ 20’ 30° Fixed Length Horizontal Lifeline System, HLL 3/8″ x 7 x 19 Galvanized Wire Rope Cable Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings, (2) Hinge-2 Anchors with 36 count Zinc Coated 16d Duplex Nails, and 2-1/2” WS Hex Head Wood Screws 25 count 786158132205

Download PDF

PDF 2021 Commercial Roof Anchor Catalog, Horizontal Lifelines
5⁰ Wire Rope Angle Options

Download JPG

1336-10 10′ 9′-4″ 10′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133608
1336-12 12′ 11′-4″ 12′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133615
1336-14 14′ 13′-4″ 14′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133622
1336-16 16′ 15′-4″ 16′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133639
1336-18 18′ 17′-4″ 18′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133646
1336-20 20′ 19′-4″ 20′ 5° Fixed Length Horizontal Lifeline, 3/8″ x 7 x 19 Galvanized Wire Rope Cable with Factory Attached ANSI-Z359 3600lb. gate strength Snaphooks Swaged at each end and 3 O-Rings. Requires the use of 1065-AC Energy Absorber and 5001-Z Steel Twist Lock Carabiner. Use with HLL Part # 1321 786158133653

Download PDF

PDF 2021 Commercial Roof Anchor Catalog, Horizontal Lifelines
HLL Replacement Parts

Download JPG

6420 Large Cargo Bag, Black & Silver 786158642001

Download JPG

1065-AC Coil-EA, Coil Type Metallic Energy Absorber for use on Horizontal Lifelines 20′ Maximum Length 786158106510

Download JPG

5001-Z Steel Twist Lock Carabiner – ANZI Z359 3600lb. gate 786158500196

Download JPG

3013-D Hinge-2 Roof Anchor with 36 duplex nails 786158301304

Download JPG

2084-2.5 2-1/2″ WS 3/8″ Hex Head Screw, Box of 25 including the 3/8″ Hex Driver, Retail Packaged 786158208436

Download JPG

2012-A 16d bright duplex nail 36 pack replacement fasteners 786158201215
